Identify metallic putty and iron galvanized body Fast measurement, 0.5s measuring interval Measuring car paint thickness on iron/aluminum substrates
Automotive paint meter, also called car paint meter, is a special instrument for detecting the automobile substrate surface coating thickness. Using a automotive paint meter can directly determine the sheet metal and spray paint of a car. It can also indirectly determine the damage degree of the car. The LS220 automotive paint meter can identify metallic putty and iron galvanized car body as well as discovering iron, aluminum and non-ferrous substrate of a car. This car paint thickness gauge has the characteristics of fast test speed, stable test data, high measurement accuracy and so on.

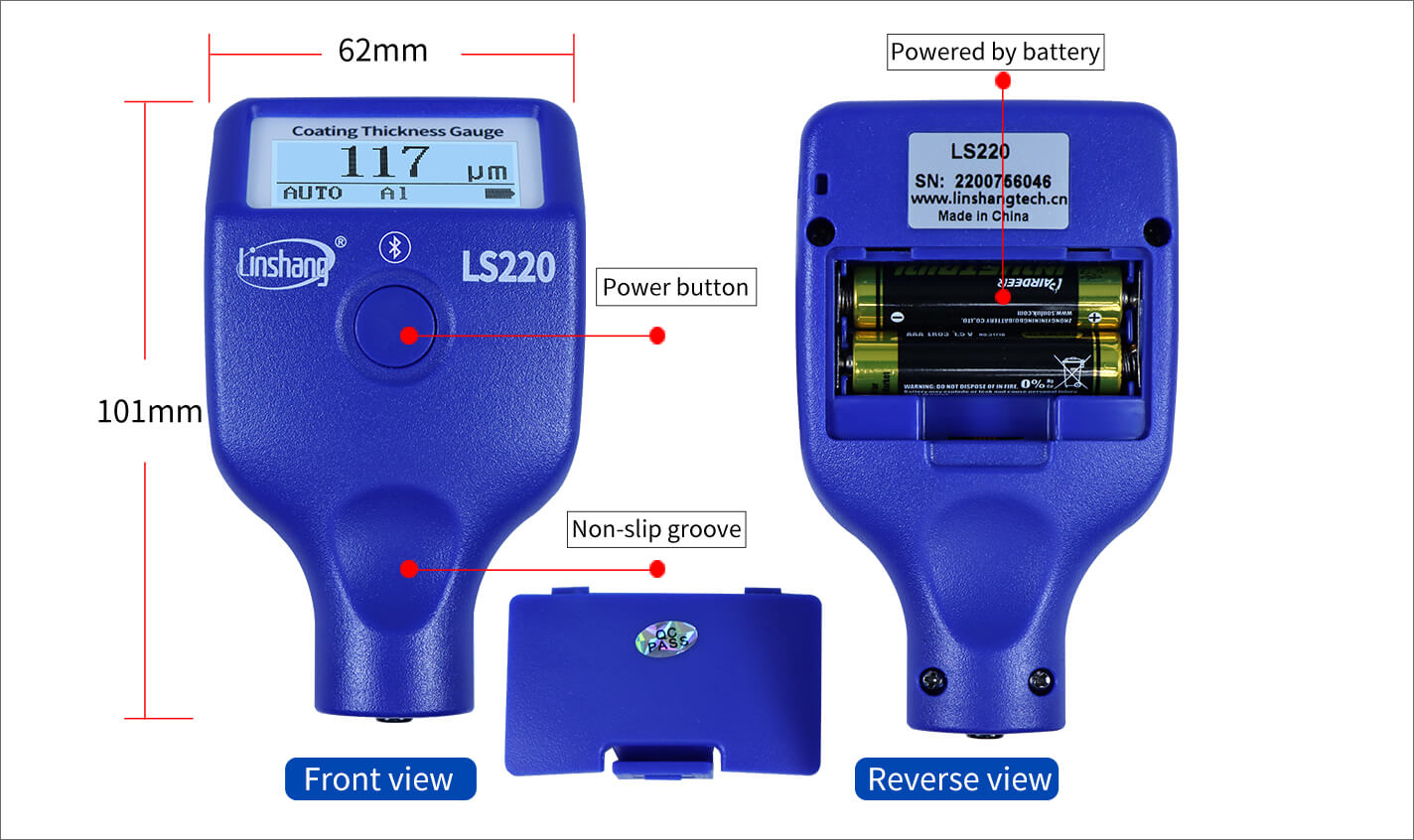

LS220 automotive paint meter
Features

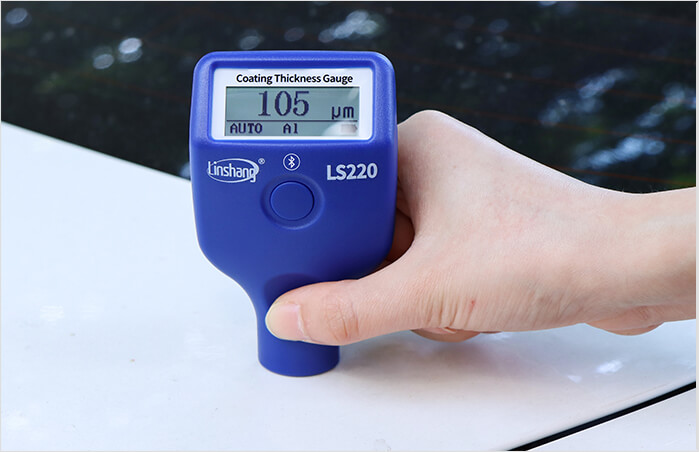

Fast measurement
The LS220 automotive paint meter has high-sensitivity probe, fast test speed. Measurement can be completed in 0.3 seconds
Dual-purpose car paint meter which can test iron and aluminum car body
The LS220 car paint thickness gauge uses dual-purpose probes, which are suitable for detecting the paint thickness on iron materials and also for detecting the paint thickness on aluminum materials. It can also recognizes non-metallic substrates

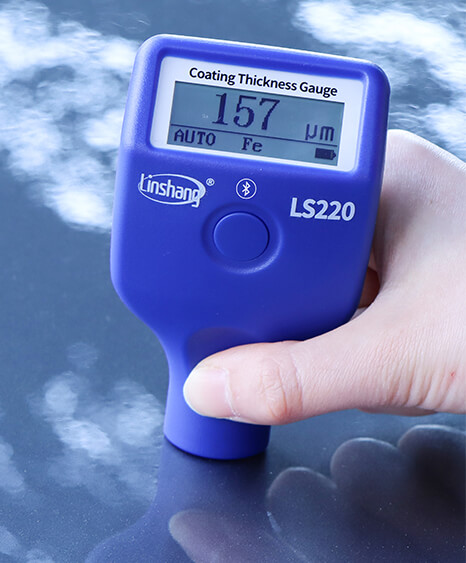

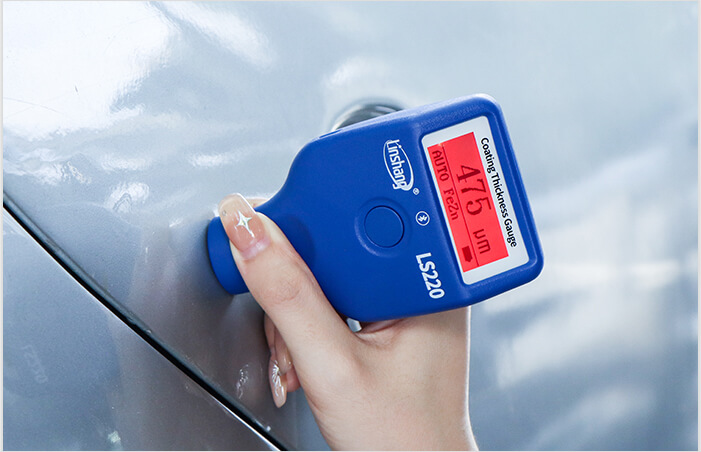

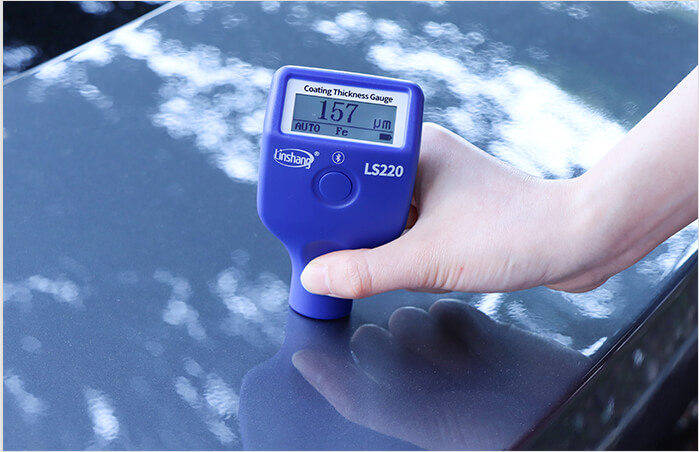

LS220 Car Paint Meter tests ferrous car body

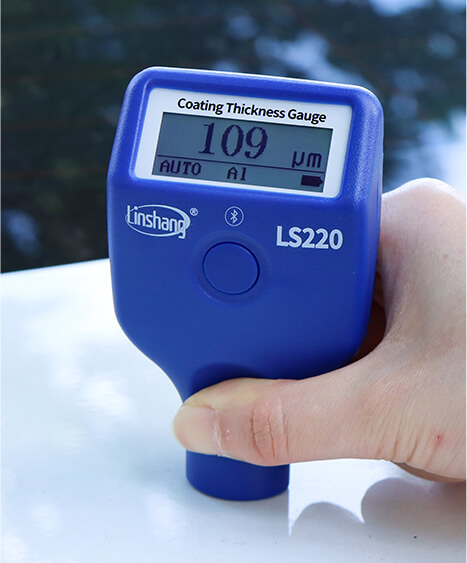

LS220 Car Paint Meter tests aluminum car body

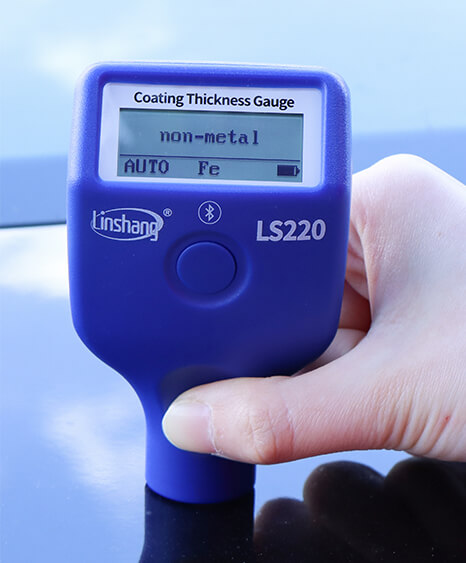

LS220 Car Paint Meter tests non-metal car body
Detect the metallic putty quickly
If a car shell has been repaired with metallic putty, LS220 car paint meter can dig out it accompanied two buzzers.

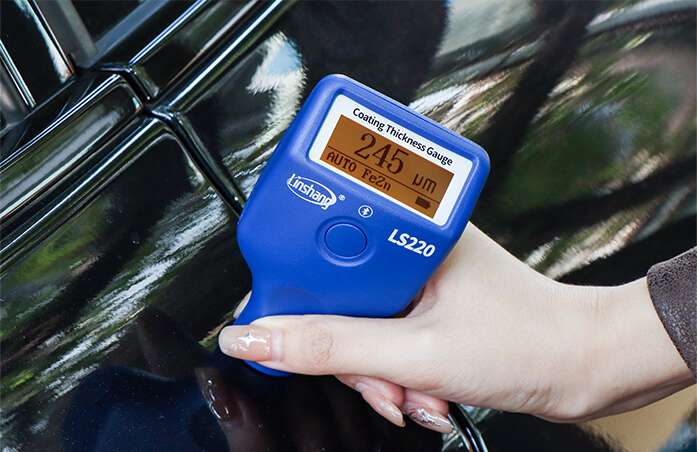

Discover iron galvanized car body automatically
LS220 car paint meter can quickly discover iron galvanized car body, anti-corrosion body, which can help sellers pitch more cars.

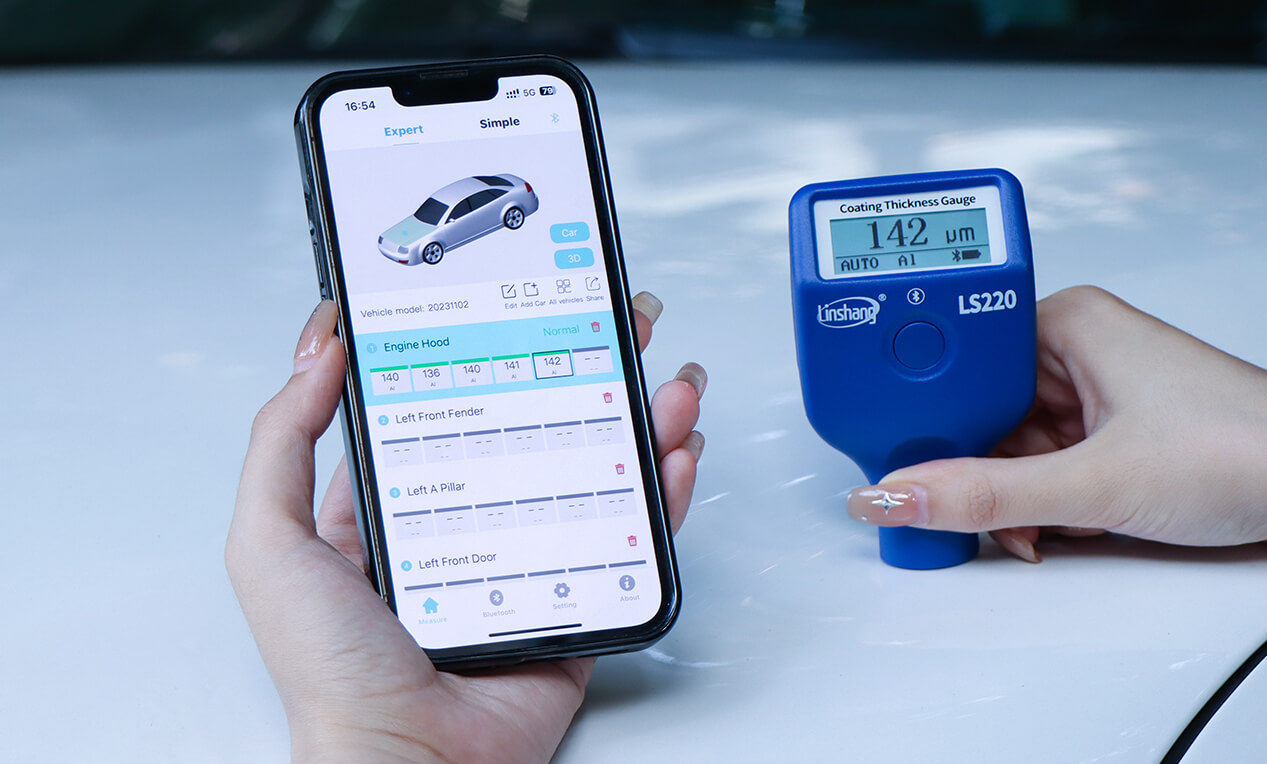

Complimentary mobile app for test report generation.
Equipped with Bluetooth data transfer, it seamlessly connects to the mobile app for online operation. Test data can be generated into a report, which can be saved or shared.
LCD high-definition Screen
This automotive paint meter uses an industrial-grade LCD screen, which can be used in bright light environments.
Durable ruby probe
Wear-proof ruby probe tip for long-term use with strong corrosion and abrasion resistance

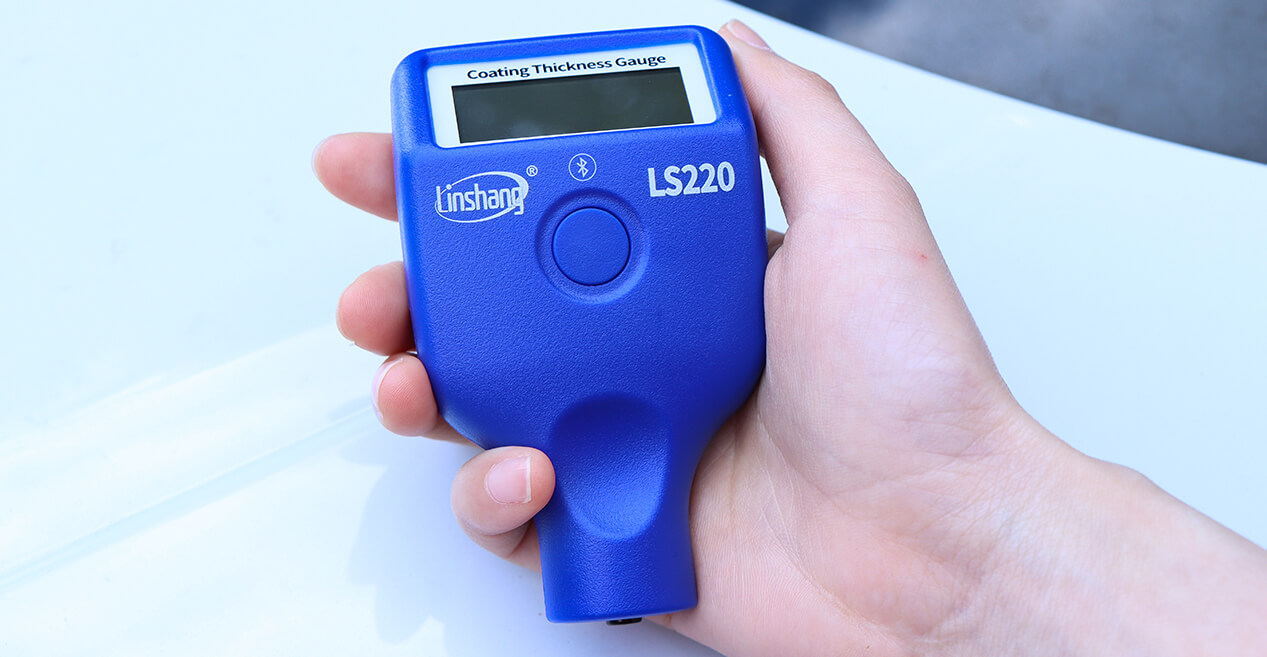

Portable for inspection
Ultra-small size for carrying around when going out for car inspection
With temperature compensation function these sensors are unsusceptible to interference
Automatic shutdown with no operation for 3 minutes to save energy
Six display language can be switched
No calibration is needed just simple zero adjustment to ensure the measurement accuracy
Qualifications and Standards
1. LS220 automotive paint meter conforms to the following standards
GB/T 4956-2025 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
GB/T 4957-2025 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness

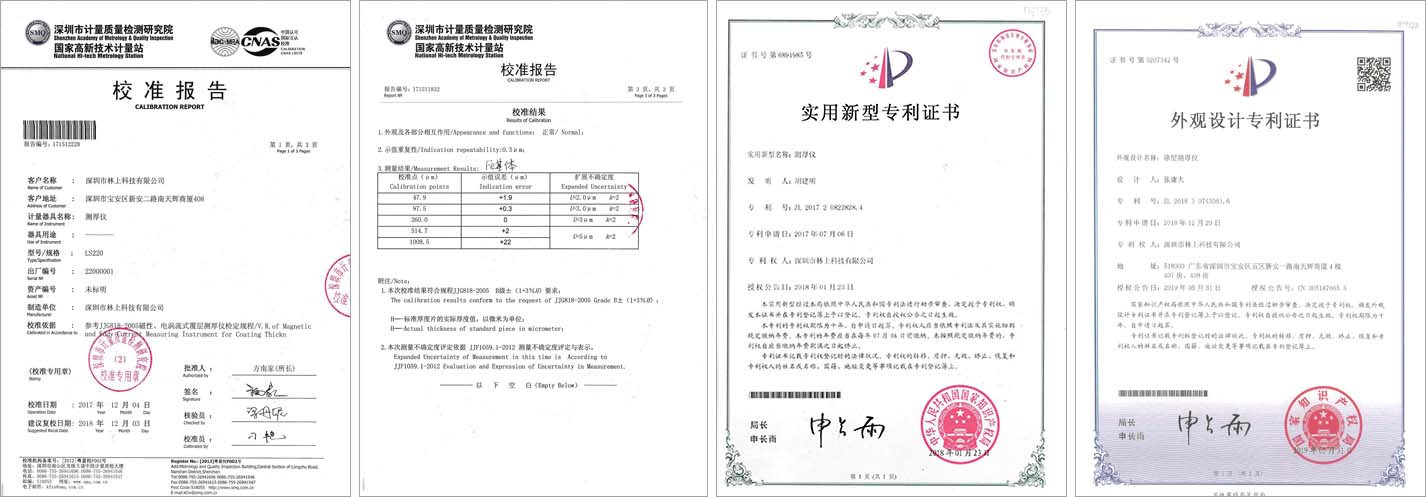

Patent certificate for car paint thickness gauge
App Installation
Coating Thickness Gauge APP is compatible with iOS 12.0 and later, as well as Android OS 6.0 and later. Scan the QR code below with Google Play to download and install the CoatingThicknessGauge.apk program. Following installation, the "Coating Thickness Gauge" icon will appear on your phone's desktop, as seen below.
Packing
| No. | Item | Quantity | Unit |
|---|---|---|---|
| 1 | LS220 Coating Thickness Gauge | 1 | Set |
| 2 | Fe plate of zero adjustment | 1 | Pcs |
| 3 | NFe plate of zero adjustment | 1 | Pcs |
| 4 | Standard film | 1 | Pcs |
| 5 | User manual | 1 | Pcs |
| 6 | Certificate/Warranty card | 1 | Pcs |
