The nemesis of metallic putty OLED low temperature resistant screen Identify iron galvanized body
LS236 paint film instrument is professionally used for automotive paint thickness inspection. It features the classic function of automatically identifying iron, aluminum body and plastic substrate. In addition, LS236 adopts new intelligent identification algorithm, which can detect accident cars refined with metallic putty, and can also automatically identify galvanized-iron high-grade anti-corrosion body. Equipped with high-definition LCD screen and ultra-low temperature OLED screen, it can be used normally in strong light and -40 °C temperature environment. The dual-screen design ensures that users can read quickly when measuring the car at any angle.
Features
Detect the metallic putty quickly
If a car shell has been repaired with metallic putty, LS236 car paint meter can dig out it accompanied two buzzers and display red backlight.

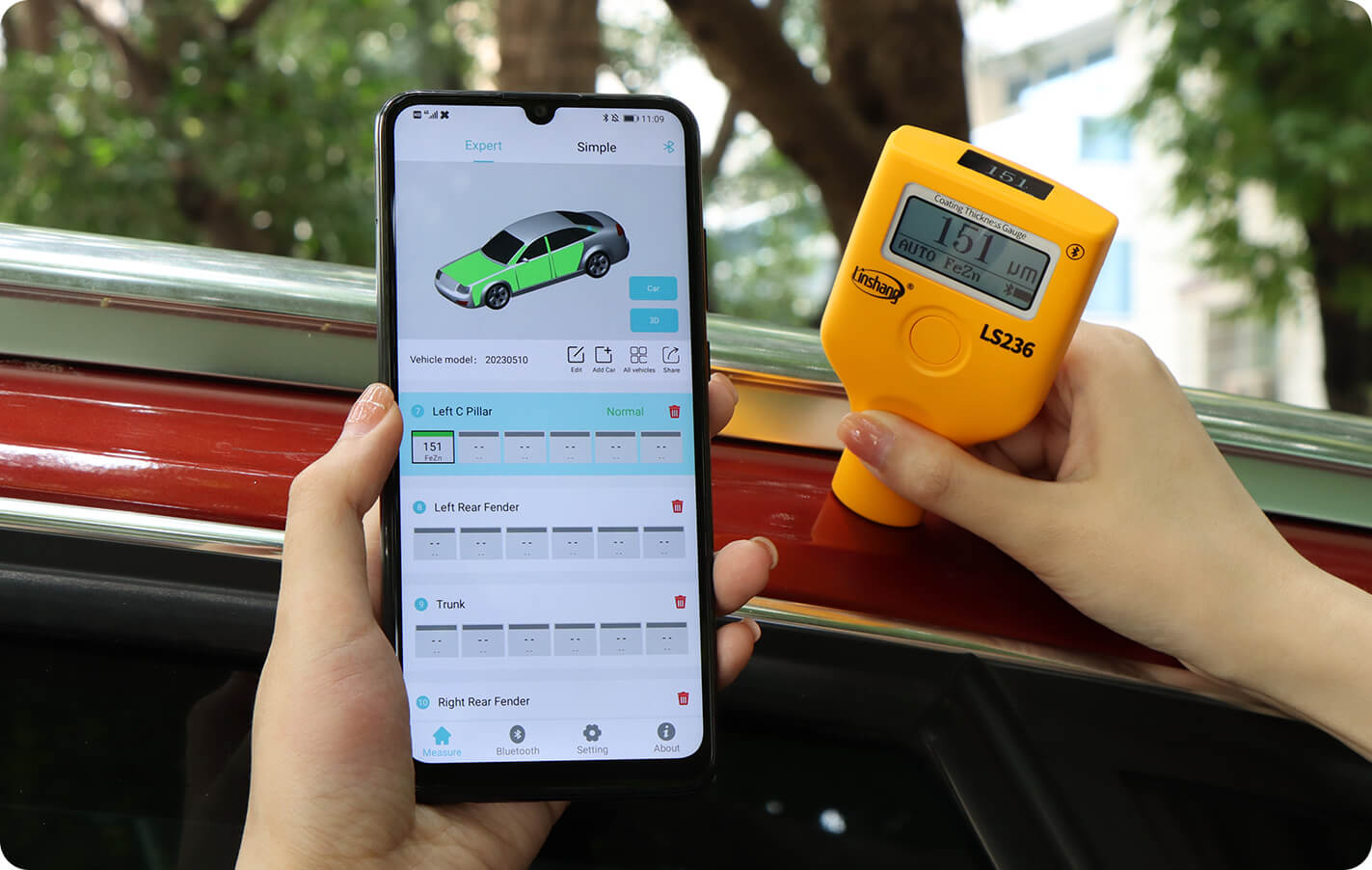

Equipped with APP, can generate test reports
With Bluetooth data transmission function, online operation with cell phone APP, test data can be generated test report, and the report can be saved or shared.
Identify galvanized-iron car body automatically
The meter can automatically identify the galvanized-iron car body, which can be used to assist in judging whether the car has replaced the factory originals. When it detects galvanized-iron car body, the screen is displayed in green backlight and the body is indicated as FeZn.
Various functions, practical and convenient
Automotive Paint meter has multiple functions and practical performance which can quickly discover iron, aluminum and non-metallic materials on.

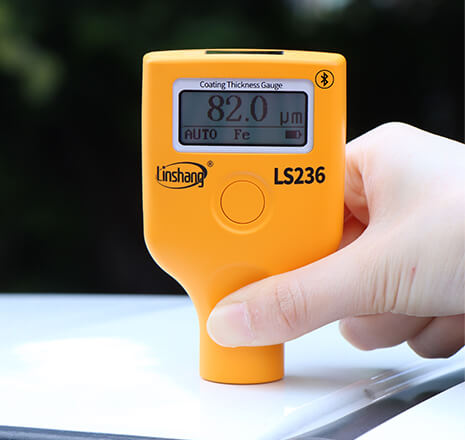

LS236 car paint meter tests ferrous car body

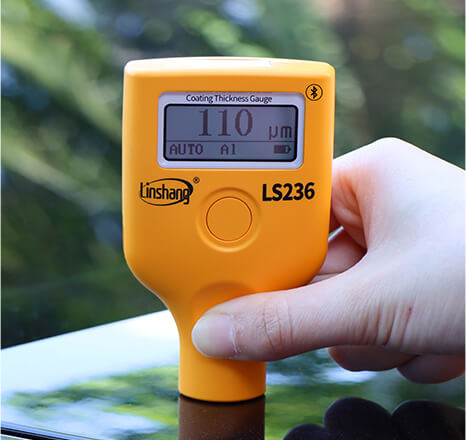

LS236 car paint meter tests aluminum car body

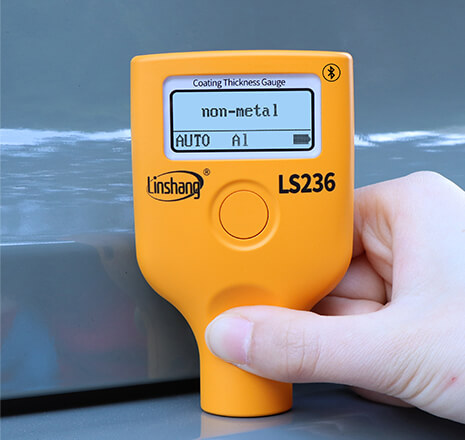

LS236 car paint meter tests non-metal material
High-definition screen and low temperature resistance screen adapt to a variety of extreme environment
LS236 adopts a combination of high-definition screen and low temperature resistance screen to adapt to various extreme detection environments. High-definition LCD screen has no fear of strong light while OLED low temperature resistance screen can work well under -40℃ environment
Dual-screen design for relaxing reading
The instrument employs front and top dual-screen design, and the whole vehicle is inspected without worrying about reading at all angles

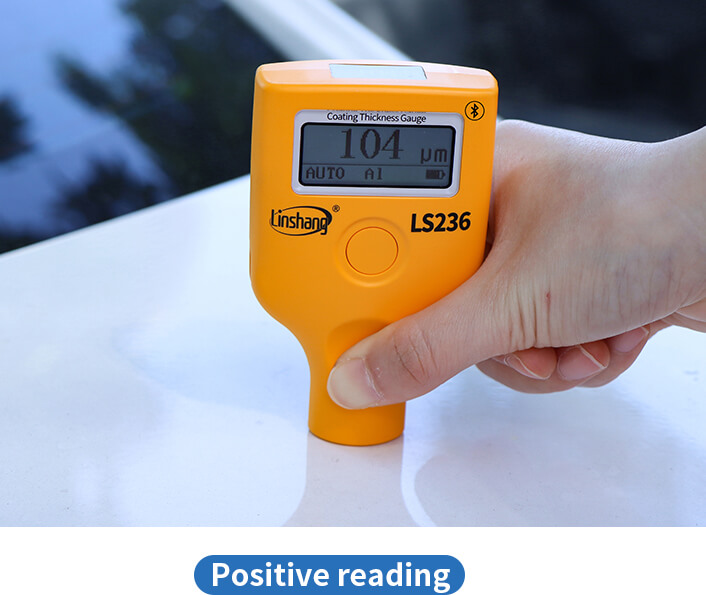

Front screen reading of LS236 automotive paint meter

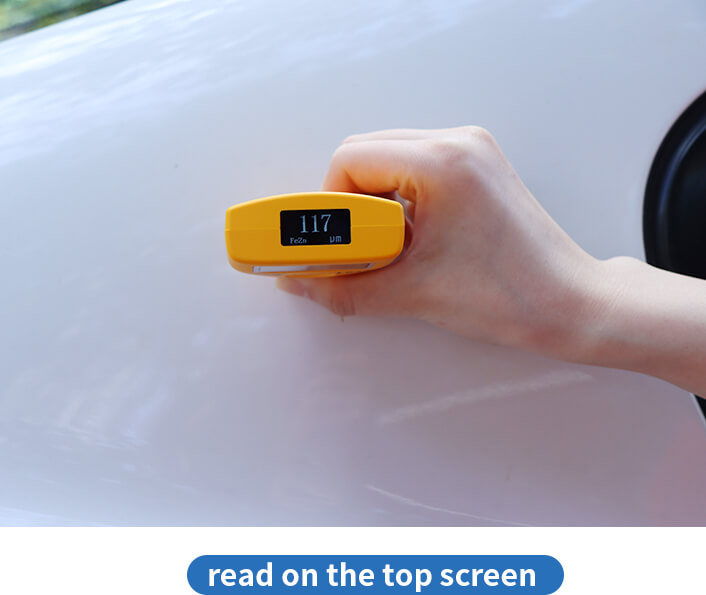

Top screen reading of LS236 automotive paint meter
Fast response and short measuring interval
The response speed is fast and it one takes 0.5 seconds to complete a measurement
Ruby probe ensures extravagant quality
The wear-resistant ruby probe reduces the inspection error caused by abrasion and can extend the service life of the automotive paint meter
Mature digital probe supports measurement accuracy of measurement
Using mature digital probe technology, the digital signal processing is done directly on the probe that is not susceptible to interference and provides good test accuracy to ensure good repeatability during the entire measurement process and maintain data stability
Motor vehicle body's material reminder with three backlights
Depending on the measured thickness, the backlighting of the display varies.

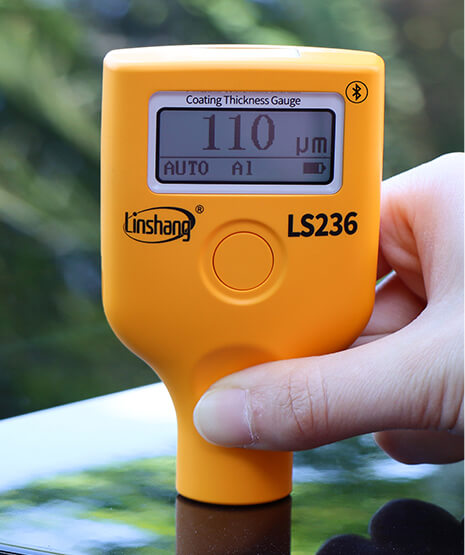

White backlight
Measure paint thickness less than 170um

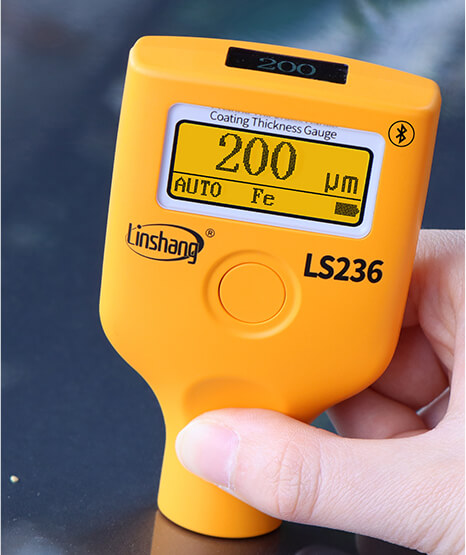

Yellow backlight
Measure paint thickness in 170um-350um

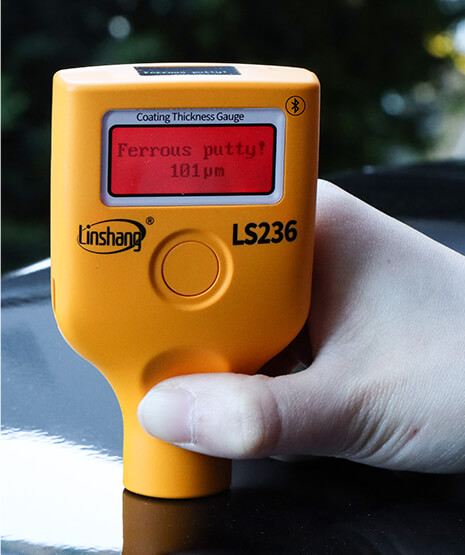

Red backlight
Measure paint thickness greater than 350um or ferrous putty
No calibration, zero-adjustment is enough and use easily
Six display language, cross-border accessible
Units can change freely
Qualifications and Standards
Standards for the product:
DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
GB/T 4956-2025 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
GB/T 4957-2025 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current

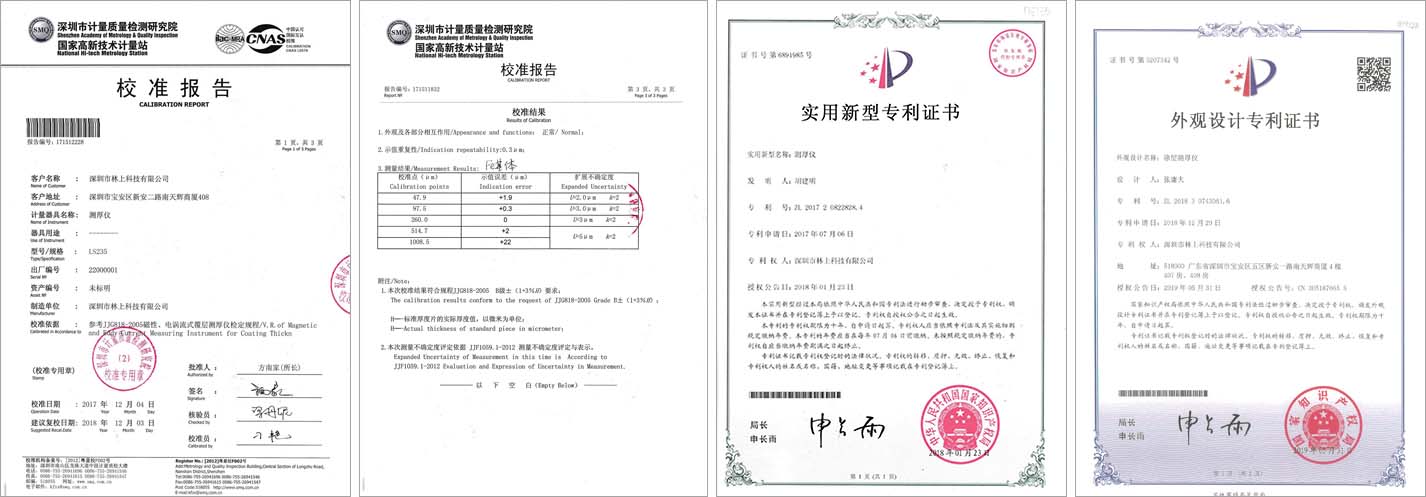

Qualification of the product:
App Installation
Coating Thickness Gauge APP is compatible with iOS 12.0 and later, as well as Android OS 6.0 and later. Scan the QR code below with Google Play to download and install the CoatingThicknessGauge.apk program. Following installation, the "Coating Thickness Gauge" icon will appear on your phone's desktop, as seen below.
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Coating Thickness Gauge | 1 | Set |
| 2 | Fe zero-adjustment plate | 1 | pcs |
| 3 | NFe zero-adjustment plate | 1 | pcs |
| 4 | Standard film | 1 | pcs |
| 5 | User manual | 1 | pcs |
| 6 | Certificate / Warranty card | 1 | pcs |
