Three-color and rotatable display screen Identify iron galvanized body Type-C interface charging, ultra-low power consumption Switchable between six languages
LS237 car paint meter is specialized for car paint thickness inspection. The instrument can not one measure the paint thickness above the ferrous and aluminum materials, identify the non-metallic shell, but also can intelligently identify the ferrous putty and ferrous galvanized layer. LS237 automotive paint meter adopts three-color backlighting as well as three-color indicator display, according to the different paint thickness of the screen and the button displays different color light. LS237 screen is rotatable, facilitating easier reading. LS237 paint film meter also adopts rechargeable lithium battery power supply, ultra-low power consumption. The instrument also has Bluetooth function, equipped with APP, support car inspection report export and sharing.
Features

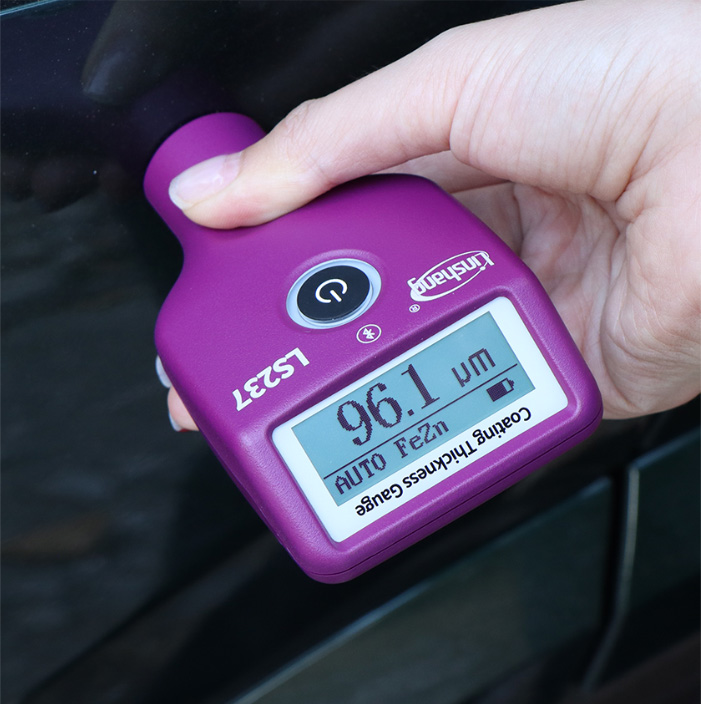

Rotatable display allows for easy reading
When the rotation is switched on, the screen can be rotated by short press on the power button, enhancing readability.
Positive reading
Negative reading
Intelligent recognition of ferrous putty
The instrument can automatically identify ferrous putty, and the measurement is accompanied by two beeps, and both the screen backlight and the button indicator light up red.
Identify car body substrates intelligently
The instrument can quickly detect ferrous, aluminum, galvanized iron and non-metallic car body, which is multi-purpose and easy to identify the car body substrate material.

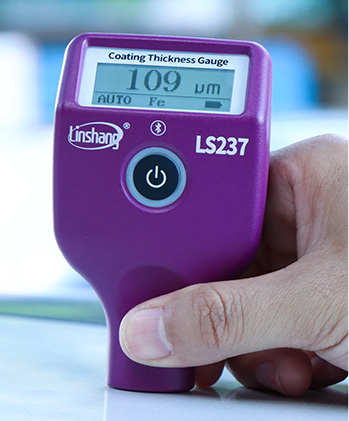

Fe

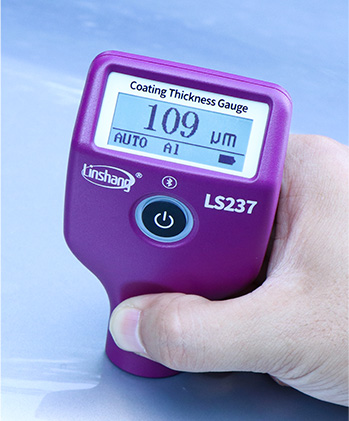

Al

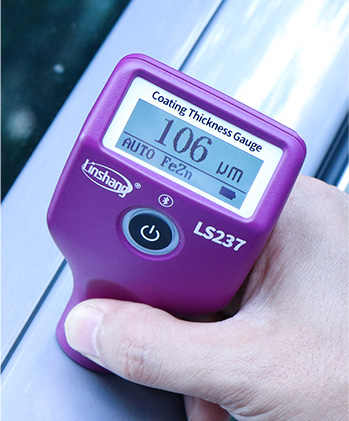

FeZn

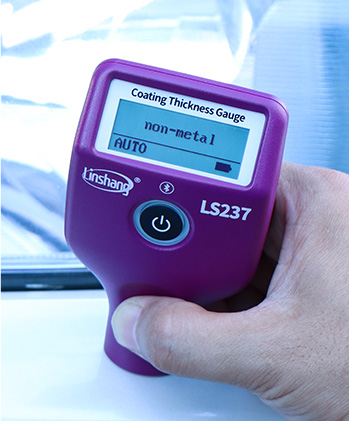

Non-metal
Three-color display, paint thickness at a glance
The tricolor display can be switched on/off in the settings. The instrument's screen backlight and button indicator lights display three colors corresponding to varying car paint thickness. Paint thickness less than 170μm, white backlight display; paint thickness between 170-350μm, yellow backlight display; paint thickness greater than 350μm or identify ferrous putty, red backlight display.

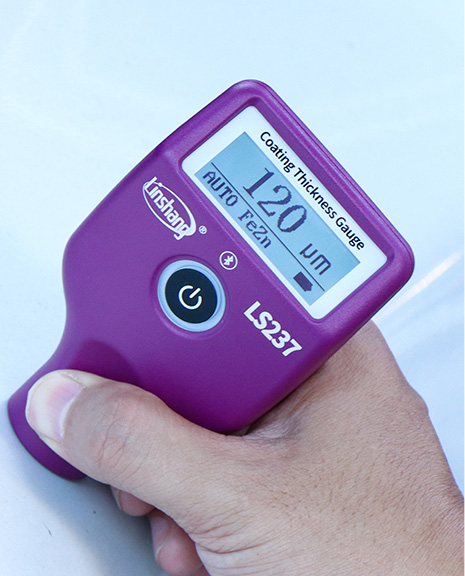

White light

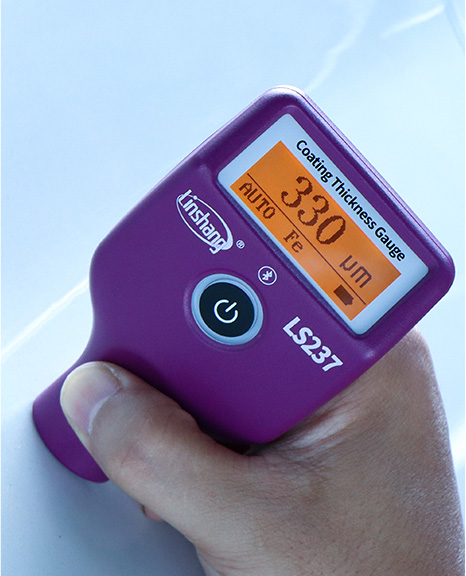

Yellow light

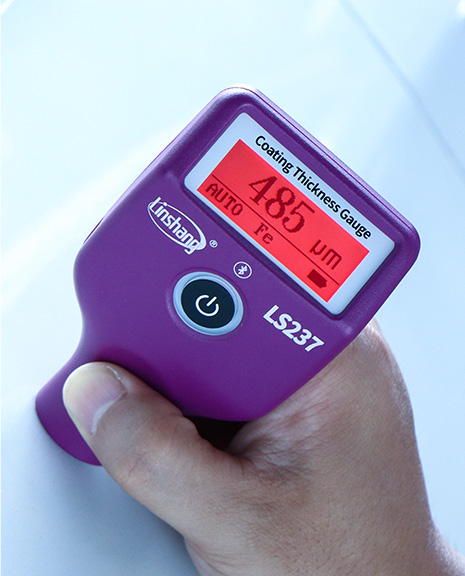

Red light

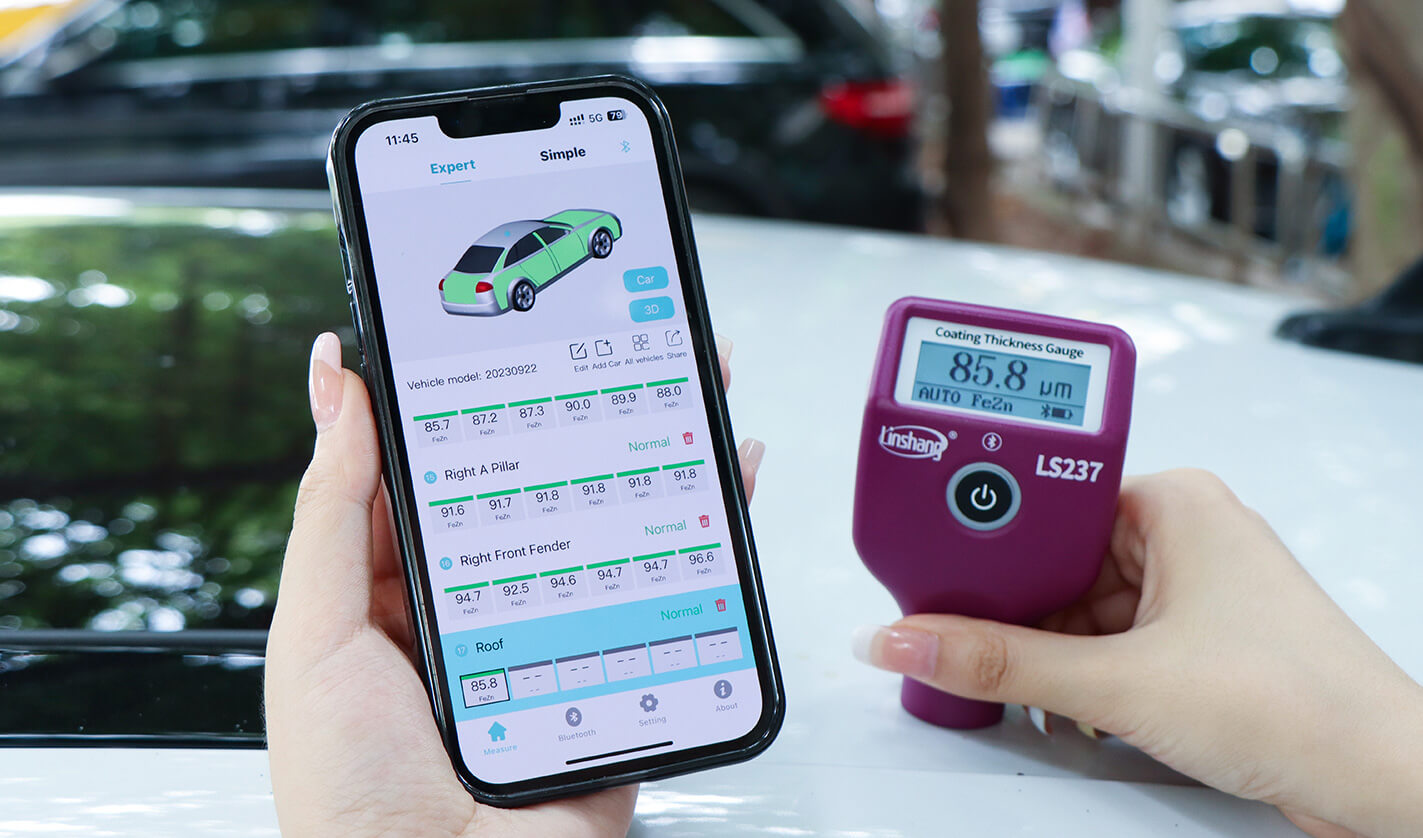

Equipped with APP, generate vehicle inspection report
With Bluetooth data transmission function, online operation with cell phone APP, which can generate test report and save or share the report.
Ultra-large measuring range, up to 5mm thick
The instrument has a large measuring range of up to 5000μm.

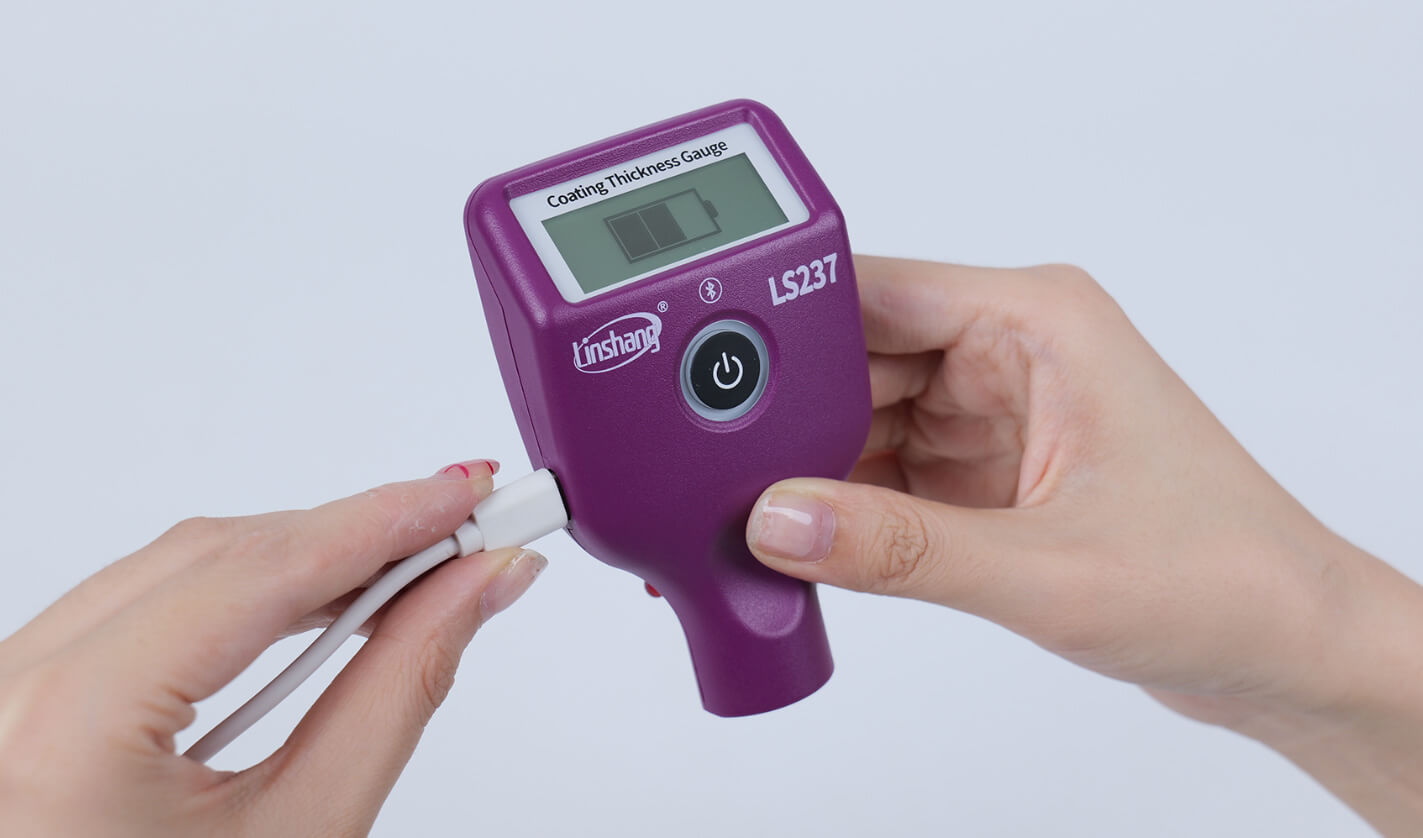

Rechargeable lithium battery, ultra-low power consumption
Powered by rechargeable Lithium battery, rechargeable via Type-C interface, ultra-low power consumption, can be used continuously for more than 50 hours after charging once.
Fast measurement speed
The instrument has ultra-fast response speed, 0.5s can complete a measurement.
Ruby probe, hard and wear-resistant
The hard wearing ruby probe reduces measurement errors caused by wear and tear and extends the life of the instrument.
Digital probe, more accurate measurement
Using mature digital probe technology, digital signal processing is done directly on the probe. The probe is less susceptible to interference and provides good test accuracy to ensure very good repeatability.
No need for calibration, just zero adjustment.
Six language switchable
Switchable micron/mil units
Qualifications and Standards
Standards for the product:
DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
GB/T 4956-2025 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
GB/T 4957-2025 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
Qualification of the product:
App Installation
Coating Thickness Gauge APP supports ios12.0 and above and Android OS 6.0 and above. Scan the QR code below with Google play and follow the instructions to download and install CoatingThicknessGauge.apk software. After installation, the "Coating Thickness Gauge" icon will appear on the desktop of your phone as shown below.
Packing
| S/N | Item | Quantity | Unit |
|---|---|---|---|
| 1 | Coating thickness gauge | 1 | set |
| 2 | Fe zero adjustment plate | 1 | pcs |
| 3 | Al zero adjustment plate | 1 | pcs |
| 4 | Standard film | 1 | pcs |
| 5 | User manual | 1 | pcs |
| 6 | Certificate/Warranty card | 1 | pcs |
