Equipped with 7-inch touch screen, easy to use One-touch measurement of SCAA, HCCI and roast degree 50mm large test aperture Lab value and color differrence comparison of coffee beans measurement
LS177C is a coffee colorimeter. It has a 7-inch touch screen, which is easy to use. The instrument can quickly match the closest SCAA number and HCCI to the measured coffee beans, and display the relevant coffee roast level. It also has color difference comparison function and color difference threshold can be set to achieve rapid QC testing. The instrument is equipped with mobile APP and PC software to facilitate color management of coffee beans. The instrument uses full-spectrum LED light source and mature spectral sensor. It can pass the test of relevant metrology institute.
Features
SCAA, HCCI and roast degree measurement
It can simultaneously measure the SCAA number, HCCI and roast degree of coffee beans, providing reference data for coffee roasting.
Color measurement and color difference comparison function
It can measure Lab value and colour difference comparison function of coffee beans, which can provide more professional data analysis for coffee bean raw material testing and roasting process.
50mm large aperture
Measuring aperture up to 50mm with two special plastic cuvettes, which is suitable for measuring coffee beans of various uneven shapes.
7-inch touch screen
Adopt a 7-inch touch screen with human-machine interaction interface for convenient operation.
Good repeatability
High precision and good repeatability with standard deviation △E*ab≤0.03. It can pass the test of relevant metrology institute.
SCAA and HCCI multi-point calibration
The instrument has the function of multi-point calibration of SCAA Agtron number and HCCI (HunterLab Coffee Color Index).

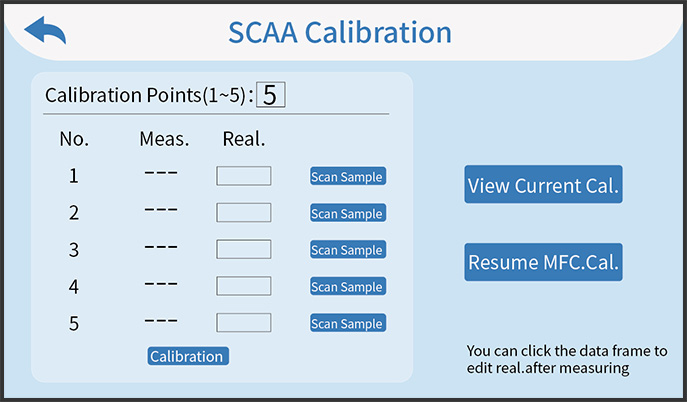

SCAA Calibration
HCCI Calibration
Provide QC function
It has QC function which can set the color difference threshold by yourselves, and it will automatically judge whether the color difference is qualified or not.
Provide practical mobile APP and PC software
It is equipped with mobile APP and PC software to facilitate color management of coffee beans.

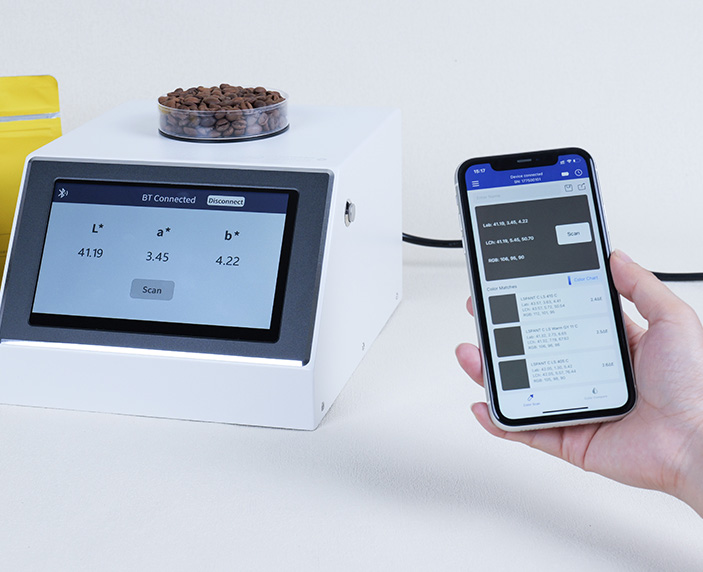

Coffee colorimeter with APP

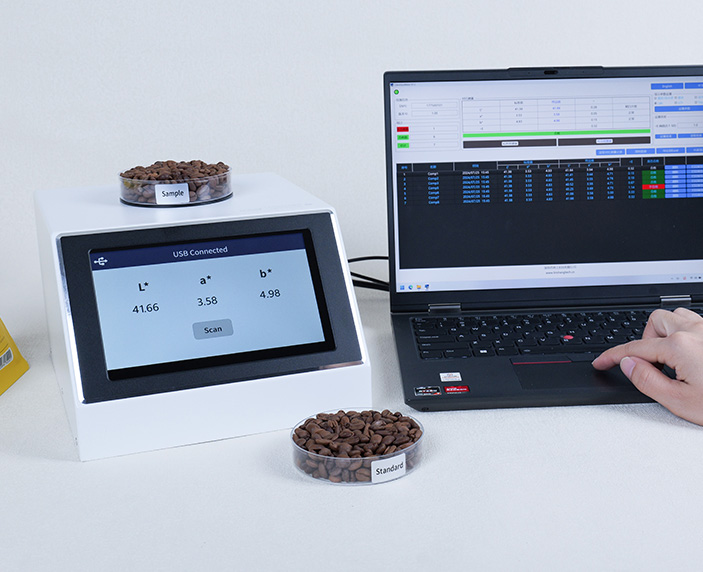

Coffee colorimeter with PC software
Full spectrum LED light source
Large storage space
Compensation optical path
Qualifications and Standards
The coffee colorimeter conforms to the following standards:
JJG 595-2002 Verification Regulation of Colorimeters and Color Difference Meter
GBT 3978-2008 Standard illuminants bodies and geometric conditions
GBT 7921-2008 Uniform color space and color difference formula
GBT 11186.1-1989 Methods for measuring the colour of paint films——Part I: Principles
GBT 11186.2-1989 Methods for measuring the colour of paint films——Part II: Colour measurement
GBT 11186.3-1989 Methods for measuring the colour of paint films——Part III: Calculation of colour difference
LS177C coffee colorimeter calibration certificate
Software Installation
1. Mobile APP installation
The mobile APP support Android operating system version 7.0 or higher and iPhone supports iOS 7.0 or higher version. It can be installed in the following ways:
● Scan the QR code on the Spectrocolorimeter with a mobile browser or WeChat, follow the prompts to download and install.
● Click on the link LScolor APP to install the APP.
● Search for "LSColor" (not case sensitive) in the APP Store/Google Play to install the application.
2. PC software installation
Connect to the computer via USB, you can use the PC software of the colorimeter. (PC software one supports Windows operating system)
● It can be installed in the following ways:Download "Product support | Colorimeter-Linshang" to the local and run it directly after decompression.
Packing List
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Colorimeter | 1 | Set |
| 2 | USB cable | 1 | pcs |
| 3 | Cleaning cloth | 1 | pcs |
| 4 | Power cable | 1 | pcs |
| 5 | User manual | 1 | pcs |
| 6 | Certificate / Warranty card | 1 | pcs |
| 7 | Calibration Report | 1 | pcs |
| 8 | Plastic Cuvettes | 2 | pcs |
