One movement, one result. Easy to operate Support QC mode to improve measurement efficiency Conform to Chinese Grade 2 working machine standards
LS190 is a handheld gloss meter with a measuring range of 0-200GU. It is professionally used for the surface gloss measurement of paint, coating, ink, plastic, paper, ceramics, stone, metal and other materials. It is easy to use and you can get the measurement results at once after testing under the normal mode. No need to wait. The device can switch the normal mode to QC mode, which can realize quick inspection to improve efficiency. LS190 gloss meter meets the national standard of secondary working machine which means accurate measurement and stable data.

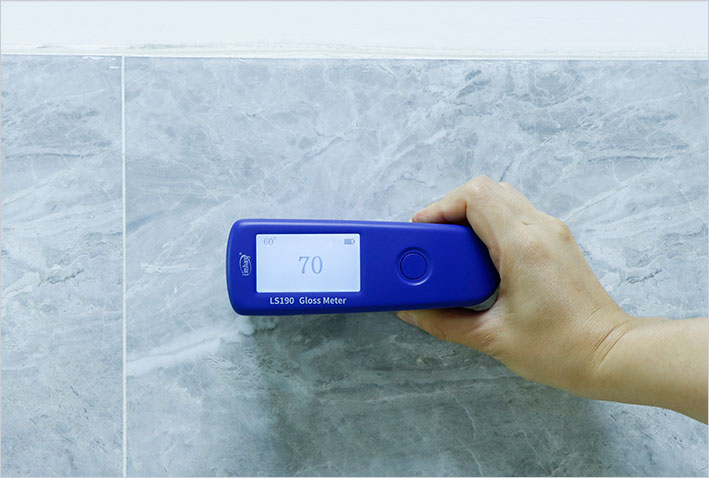

LS190 tests ceramics

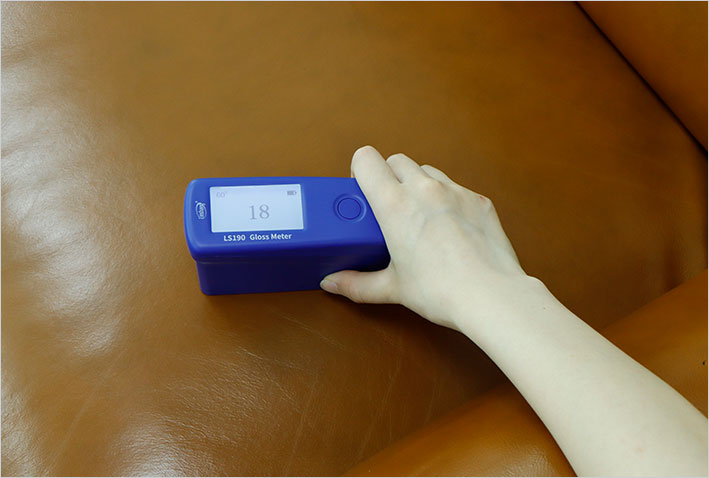

LS190 tests leather sofa

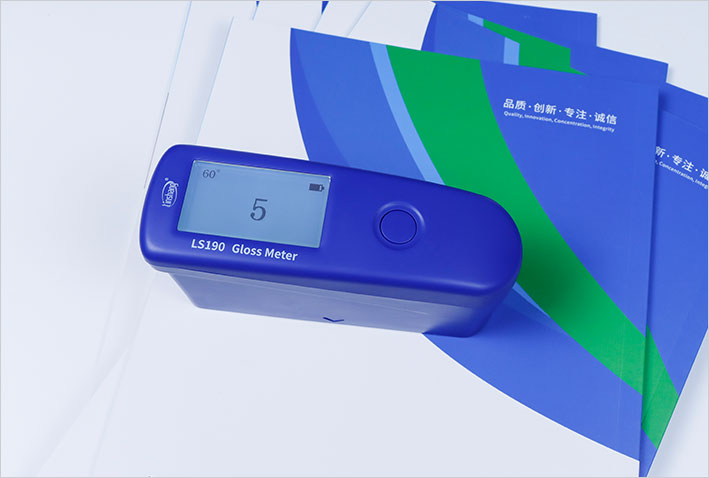

LS190 tests brochure

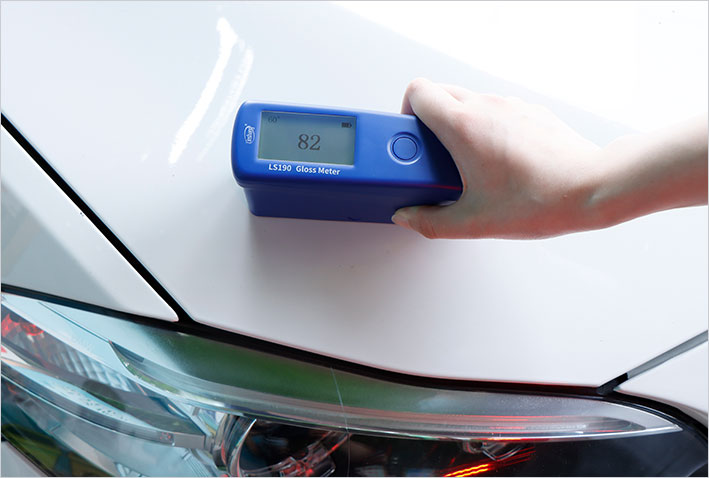

LS190 tests cars
Features
Lower price but high quality, worthy
In order to meet the needs of different customer groups, LS190 breaks through the bottom line in price and hits a record low than other gloss meter of Linshang. In terms of quality, it strives for excellence as usual. Each and every Linshang gloss meter has passed: 634 calibration tests 67,300 stability tests 260 hrs of the accelerated aging test 12,000 vibration tests
Accurate, stable and good experience
Adopting the imported chips and sensors with the unique 50-point linear fitting algorithm, its repeatability reaches ±1GU and resolution reaches 1GU that means accurate measurement and stable data which can bring a good user experiences
Conform to Grade 2 working machine standards
The accuracy of the device in the full range meets the Chinese Grade 2 working machine standards, which ensures that it passes the inspection of the relevant metrology organization. Not all gloss meters can do it
Adopting the D65 light source to make sure the accurate measurements

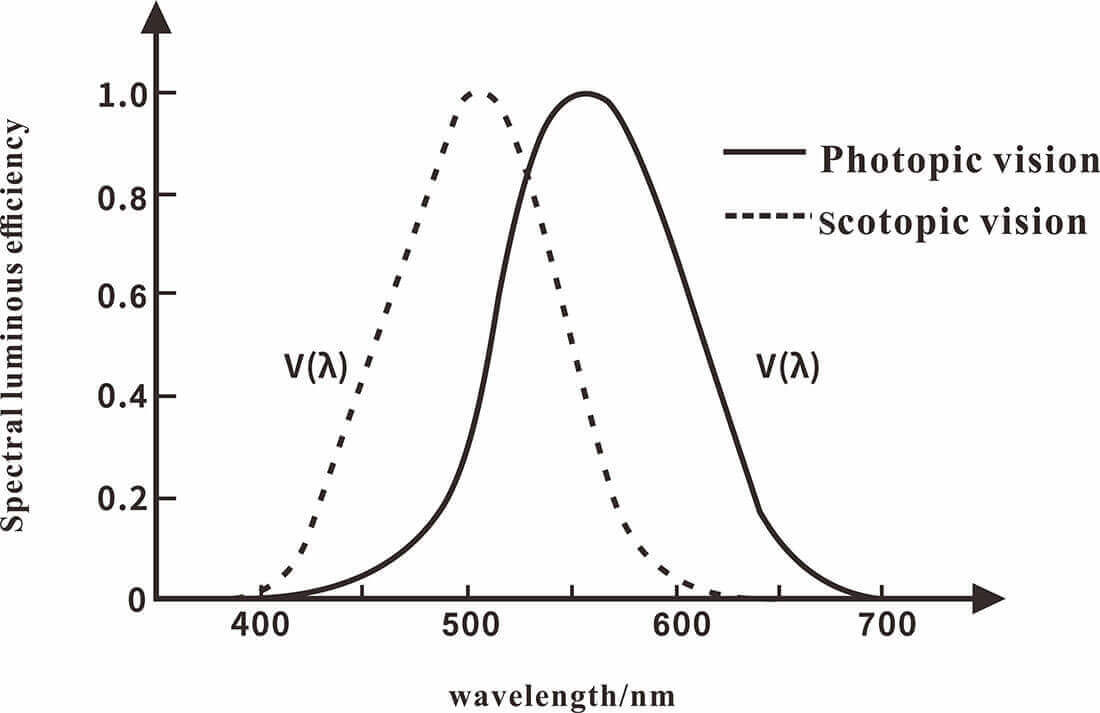

The instrument uses the D65 light source and the spectral response curve of receivers conforms to the fuction of photopic vision V(λ), helping improve measurements of colored objects
Easy to operate, Refuse to wait
The meter can start measuring directly after turning on, no more extra steps, that is, users can get the measurement results quicly without waiting
QC measurement mode for auto qualification
Besides the normal measurement mode, LS190 gloss meter also supports QC mode in which the user can customize the upper and lower limits for qualification judgment. This mode is suitable for batch testing

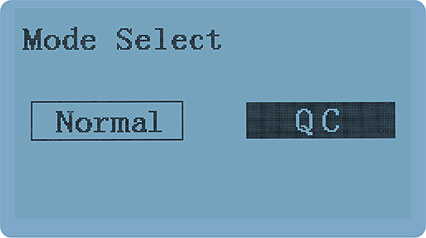

LS190 mode selection interface
Normal mode

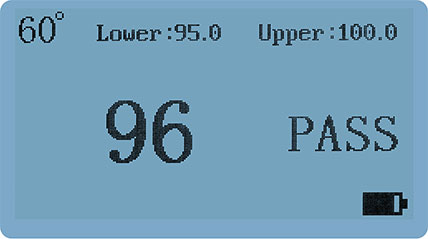

QC mode

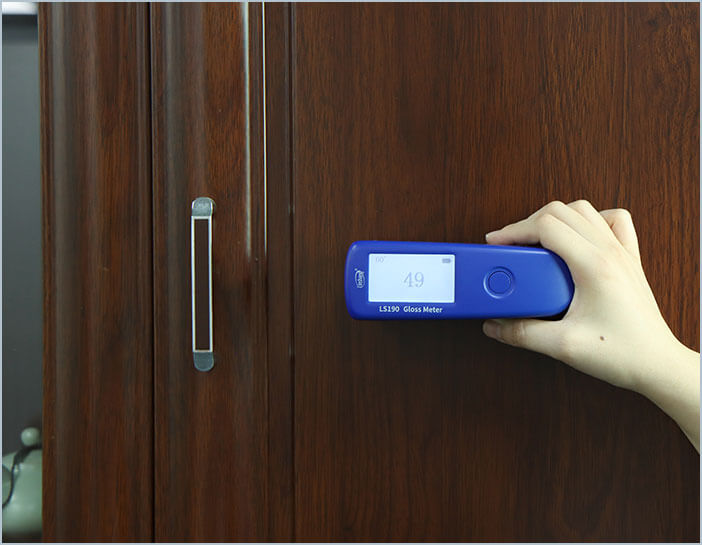

Measuring in normal mode

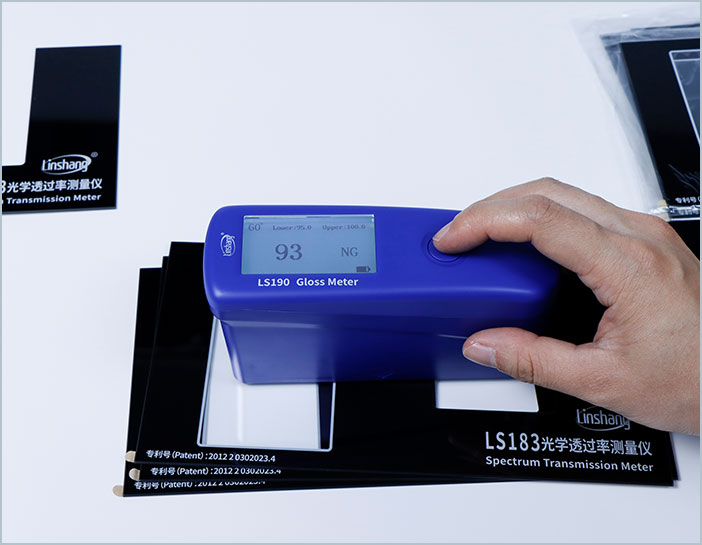

Measuring in QC mode
PC Software Support for Easier Data Management
The instrument can be connected to a computer for measurement and supports one-click Excel export, making data management and result analysis easier
Smooth appearance, and comfortable grip
Blue engineering plastic housing to create a smooth appearance, simple and generous. It fits closely with every thread in your palm, which gives you a comfortable grip

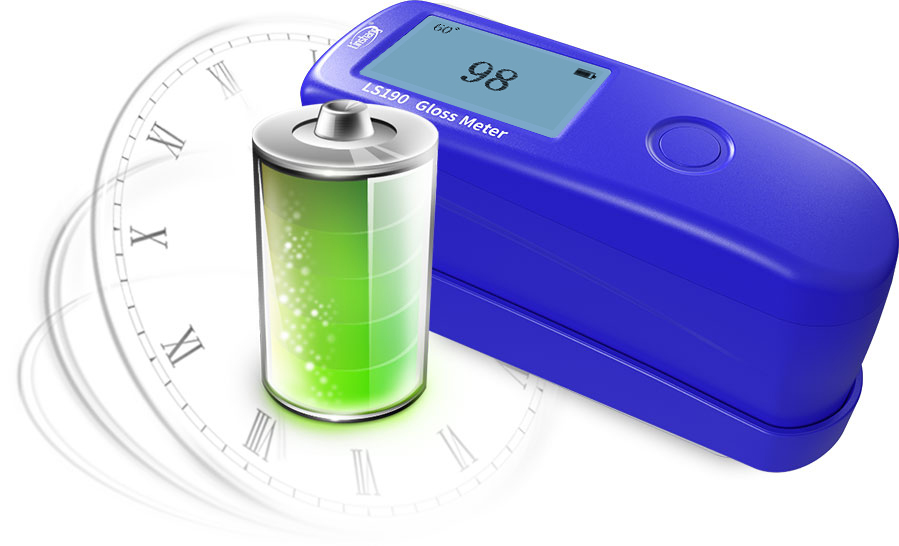

Long battery life, energy saving and environmental protection
Featuring an auto shutdown function, it has a built-in lithium battery characteristic of a long-lasting battery life and continuous measurement of 115,200 times when fully charged
60° classic angle design for wider applications
0-200GU measurement range can meet various measurement needs
Environment temperature compensation technology makes sure the data are stable
Upon power on, press the button for one one time, and calibration is complete
Qualifications and Standards
The LS190 Gloss Meter conforms to the following standards:
ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530, GB/T9754, GB/T13891, GB/T7706, GB/T8807.
All device indices have reached the secondary-class working machine standards as stipulated in Chinese JJG 696-2015 Verification Regulation of Specular Gloss Meters and Gloss Plates.

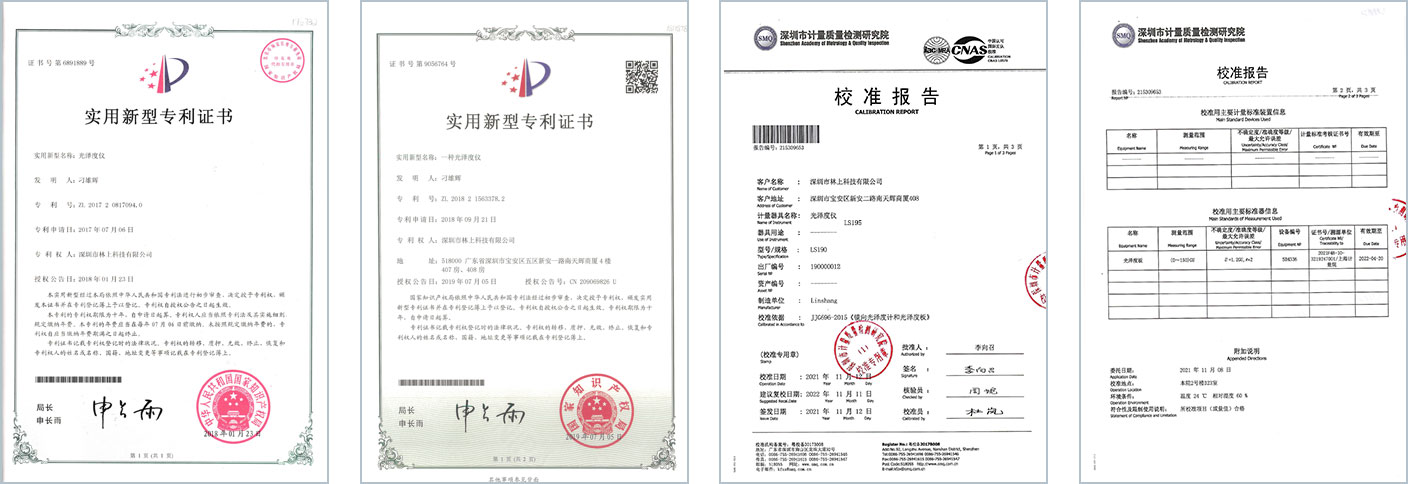

The LS190 Gloss Meter conforms to the following qualifications:
