Universal angle 60°, large range up to 1000GU Provide free PC software Automatically judge whether the data is qualified in QC mode
LS192 is a hand-held gloss meter with universal measuring angle 60° and its measuring range is 0-1000GU. The instrument is widely used in surface gloss measurement on paint, coating, metal, ceramics, stone, printed material. It's so convenient that you can use even without pressing button. QC mode is optional to conduct quick QC process. This instrument supports connection to a computer for measurement. Measurement results can be exported as an Excel file, making measurement data management more professional.
Application

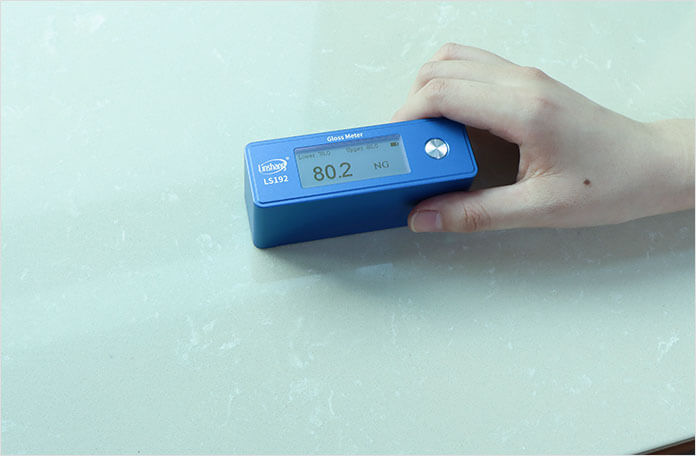

LS192 measures ceramic

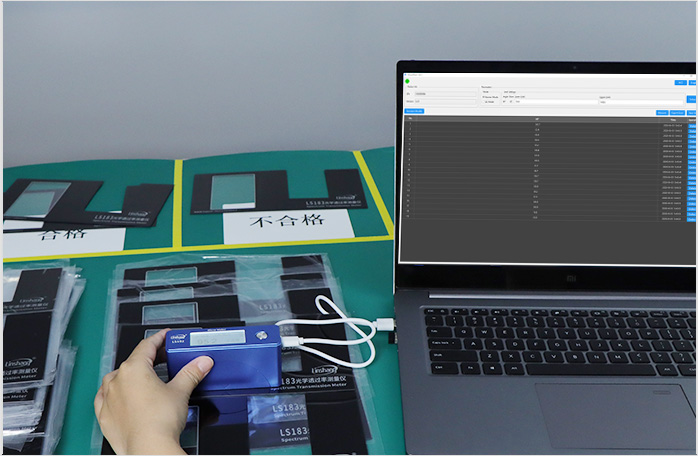

LS192 measures PC

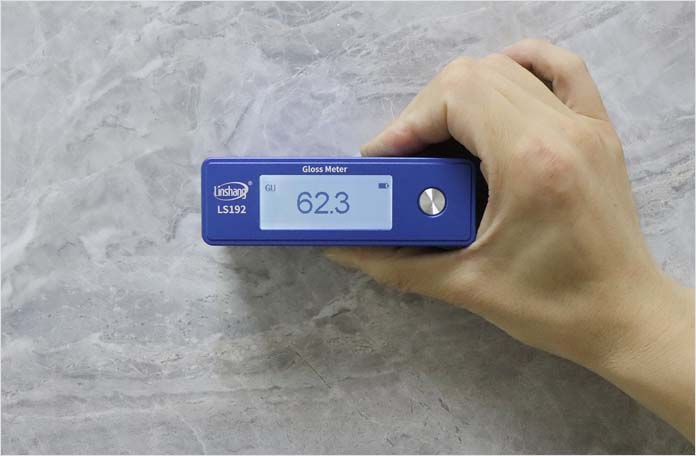

LS192 measures marble

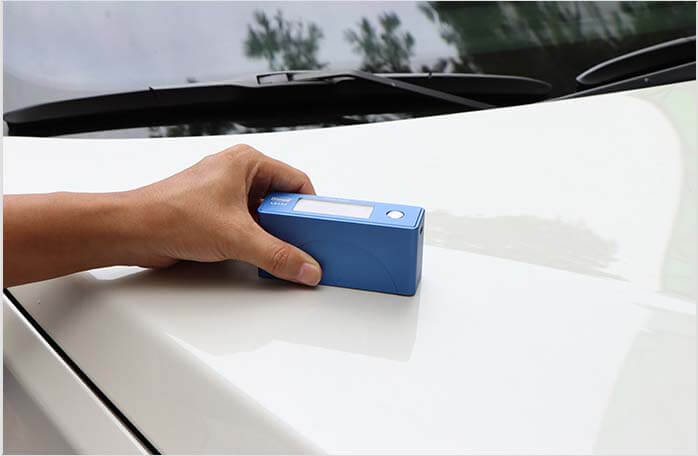

LS192 measures car
Feature
Easy to operate
The instrument is easy to use. All you have to do is to put the instrument on the surface of the material and read the result in the screen
Adopting the D65 light source to make sure the accurate measurements

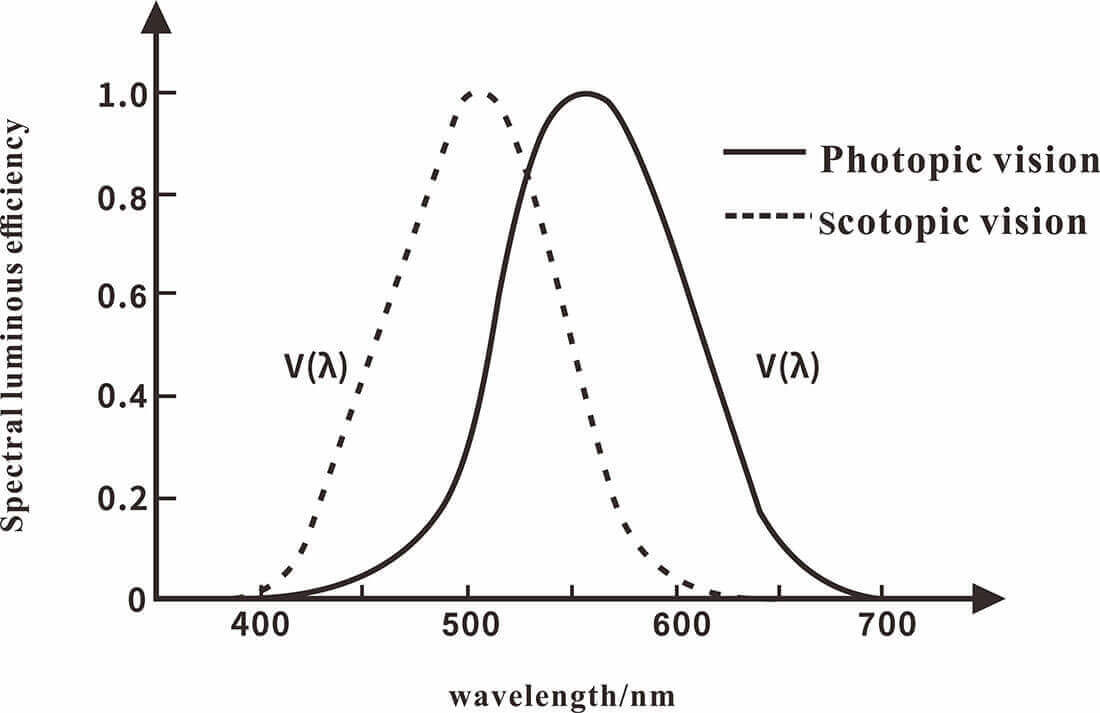

The instrument uses the D65 light source and the spectral response curve of receivers conforms to the fuction of photopic vision V(λ), helping improve measurements of colored objects
Precise measurement
The accuracy of the device in the full range meets the Grade 1 gloss meter standards, which is designed with reference to relevant metrology requirements, and actual inspection results are subject to the testing organization. Great repeatability: ±0.2GU for 0-100GU; ±0.2% reading for 100-1000GU
| Categories | Standard Gloss Meter | Grade 1 Gloss Meter | Grade 2 Gloss Meter |
|---|---|---|---|
| Stability | 0.2GU | 0.4GU | 1.0GU |
| Zero Error | 0.1GU | 0.2GU | 1.0GU |
| Indication Error | ±1.0GU | ±1.5GU | ±2.5GU |
Dual Mode
LS192 has dual measurement modes that are applicable to different occasions. One is normal mode in which you can quickly read measurement results after putting the instrument on the material. Another is QC mode in which it can automatically judge whether the result is qualified
Mode Select

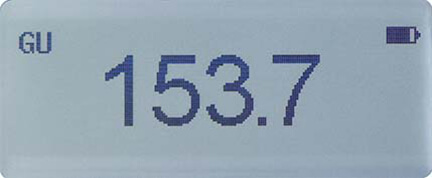

Normal Mode
QC Mode

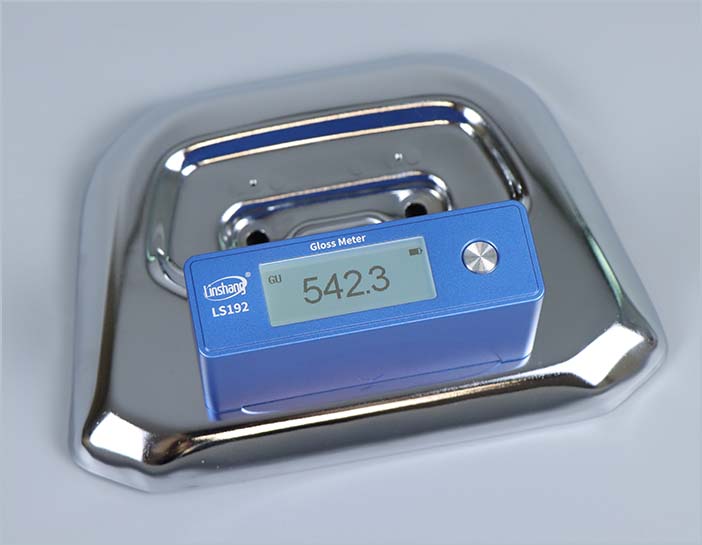

measurement in normal mode
measurement in qc mode
Portable and Smart
The instrument shell made of aluminum is small and convenient to carry out

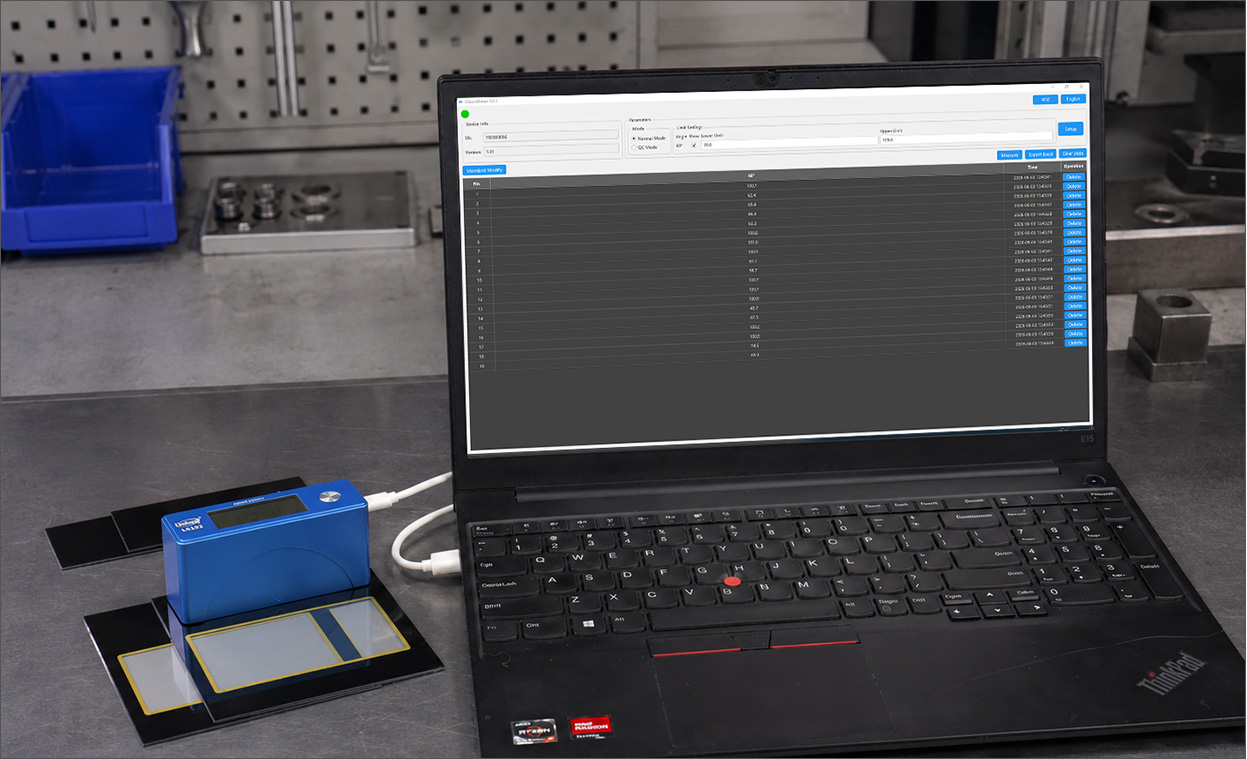

Practical PC Software
The instrument supports PC-connected measurement, intelligent data statistics, and Excel file export, making it easier to organize, analyze, and archive measurement results
60°universal angle design and widely used in many fields
Long battery life, energy-saving and environmental
Mature temperature compensation technology
After powering on, short press the button and calibration is conducted
Qualifications and Standards
LS192 gloss meter conforms to following standards
ISO2813，ISO7668，ASTM D523，ASTM D2457，DIN 67530，GB/T9754, GB/T13891，GB/T7706, GB/T8807, also meeting all the requirements of 1st class working machine calibration in JJG 696-2015 Verification Regulation of Specular Gloss Meters and Gloss Plates.
Certificates

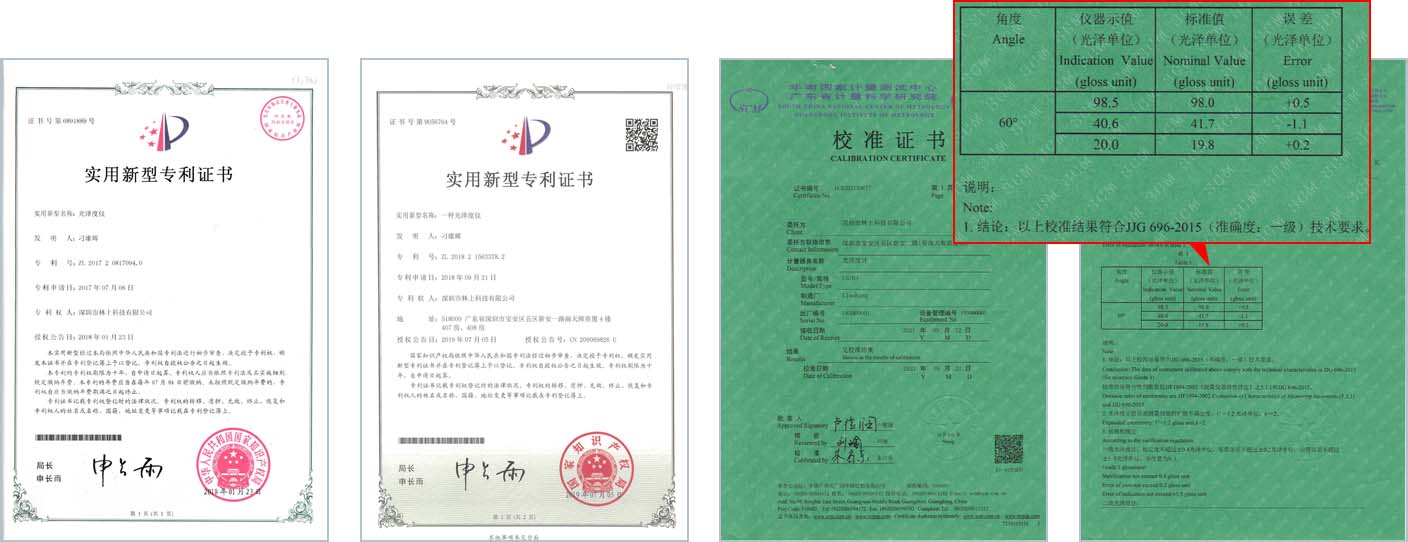

LS192 gloss meter certificates
