Universal angle 60°, measuring range: 0-1000GU In line with requirement of Chinese Grade 1 gloss meter standard GB/T 9754
LS193 is a portable gloss meter with micro measuring aperture, universal angle 60°. Its measuring range is 0-1000GU, and exclusively applicable to surface gloss measurement on curved or mini size material.
Application

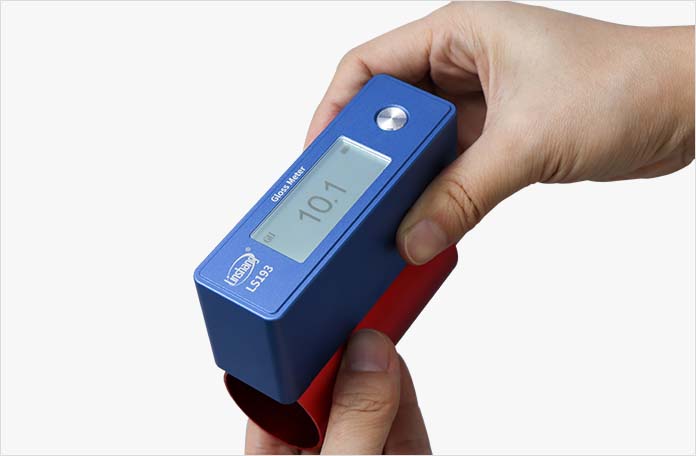

LS193 measures curve material

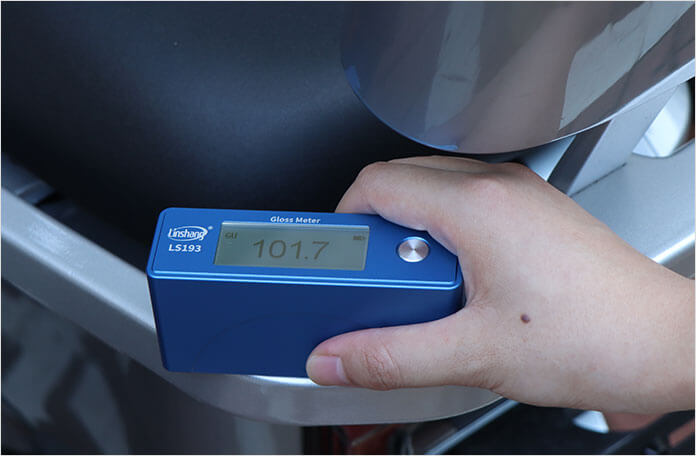

LS193 measures material with irregular shape

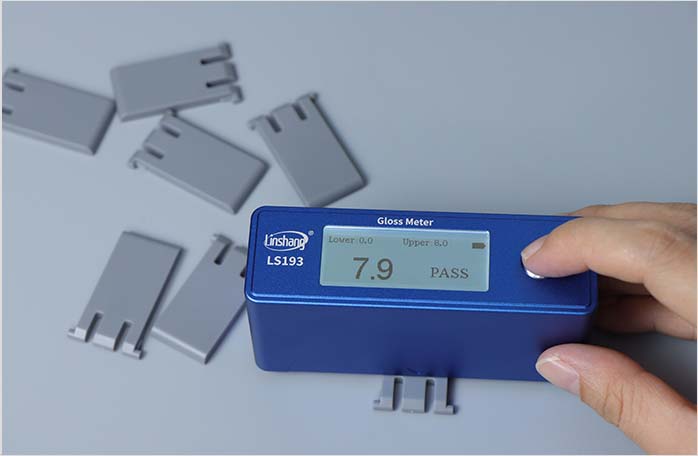

LS193 measures small size plastic material

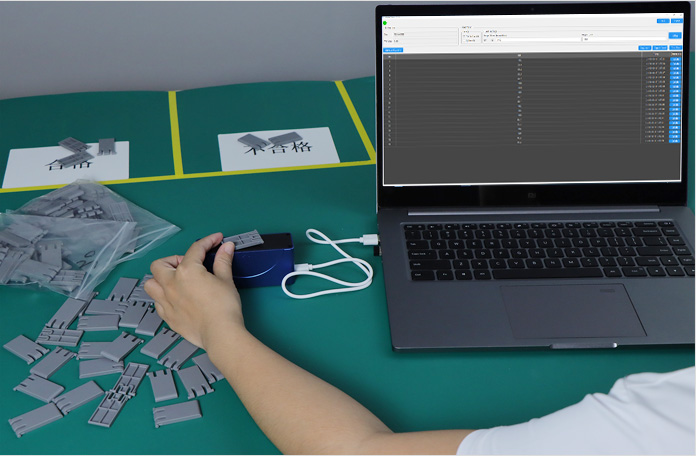

Measuring in QC mode
Feature
Micro measuring aperture, Large measuring range of 1000GU
3*6mm measuring aperture is suitable for measuring curved or mini size material Large measuring range allows LS193 to measure most low, medium and high gloss materials
Operate easily, Measure quickly
Put and read with no button operation
Adopting the D65 light source to make sure the accurate measurements

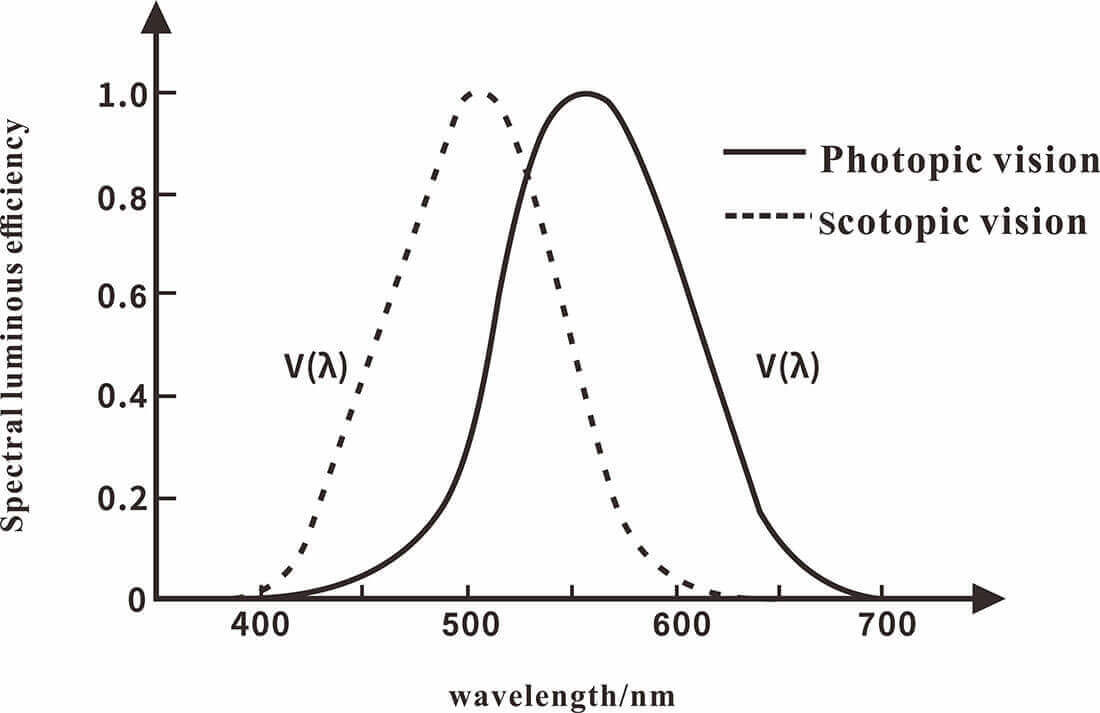

The instrument uses the D65 light source and the spectral response curve of receivers conforms to the fuction of photopic vision V(λ), helping improve measurements of colored objects
Precise measurement
LS193 Gloss Meter could pass calibration by any national metrology institute, in line with Grade 1 gloss meter standard of JJG696-2002 Great repeatability: ±0.2GU for 0-100GU; ±0.2% reading for 100-1000GU
| Categories | Standard Gloss Meter | Grade 1 Gloss Meter | Grade 2 Gloss Meter |
|---|---|---|---|
| Stability | 0.2GU | 0.4GU | 1.0GU |
| Zero Error | 0.1GU | 0.2GU | 1.0GU |
| Indication Error | ±1.0GU | ±1.5GU | ±2.5GU |
Dual Mode
LS192 has dual measurement modes that are applicable to different occasions. One is normal mode in which you can quickly read measurement results after putting the instrument on the surface of sample. Another is QC mode in which it can automatically judge whether the result is qualified
Mode Select

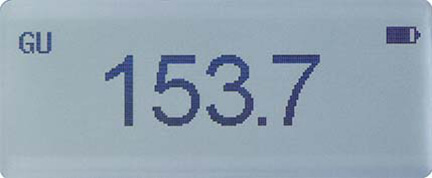

Normal Mode
QC Mode

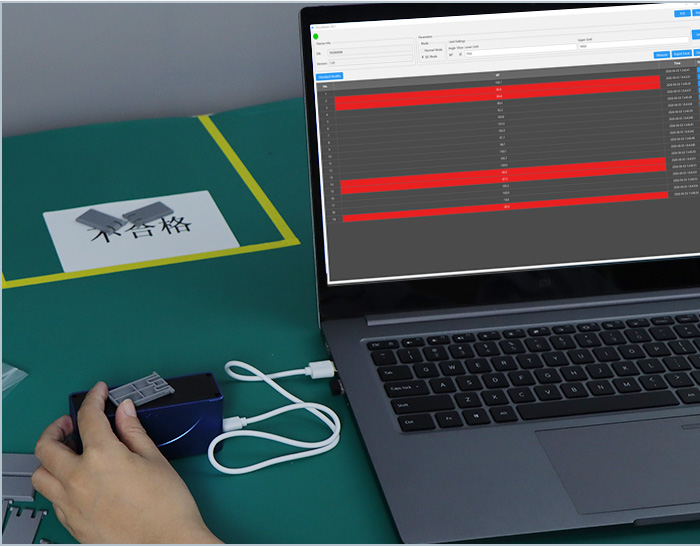

measuring in QC mode

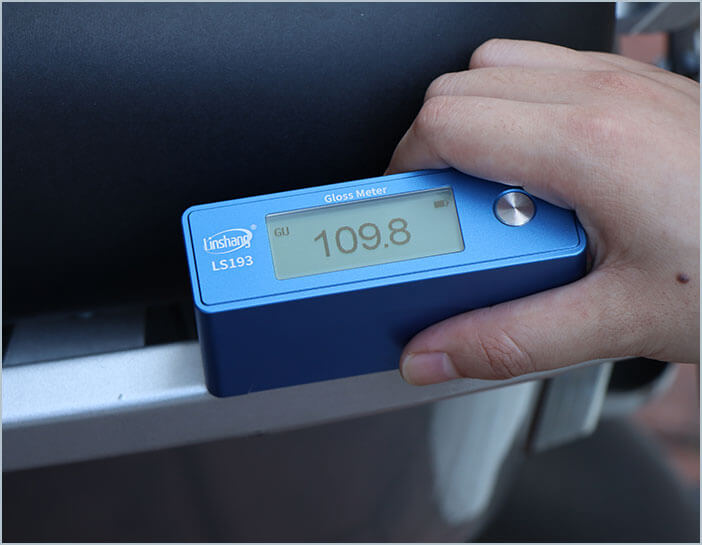

measuring in Normal mode
PC Software Support for Online Measurement
The instrument supports PC-connected measurement. The PC software can display measurement results in real time and export them as Excel files, making data records clearer
Compact appearance
The instrument shell made of aluminum is small and convenient to carry out
60° universal angle design is widely used in many fields
Long battery life, energy-saving and environmental
Mature temperature compensation technology
Qualifications and Standards
LS193 gloss meter conforms to following standards:
ISO2813，ISO7668，ASTM D523，ASTM D2457，DIN 67530，GB/T9754, GB/T13891，GB/T7706, GB/T8807, also meeting all the requirements of 1st class working machine calibration in JJG 696-2015 Verification Regulation of Specular Gloss Meters and Gloss Plates
Certificates

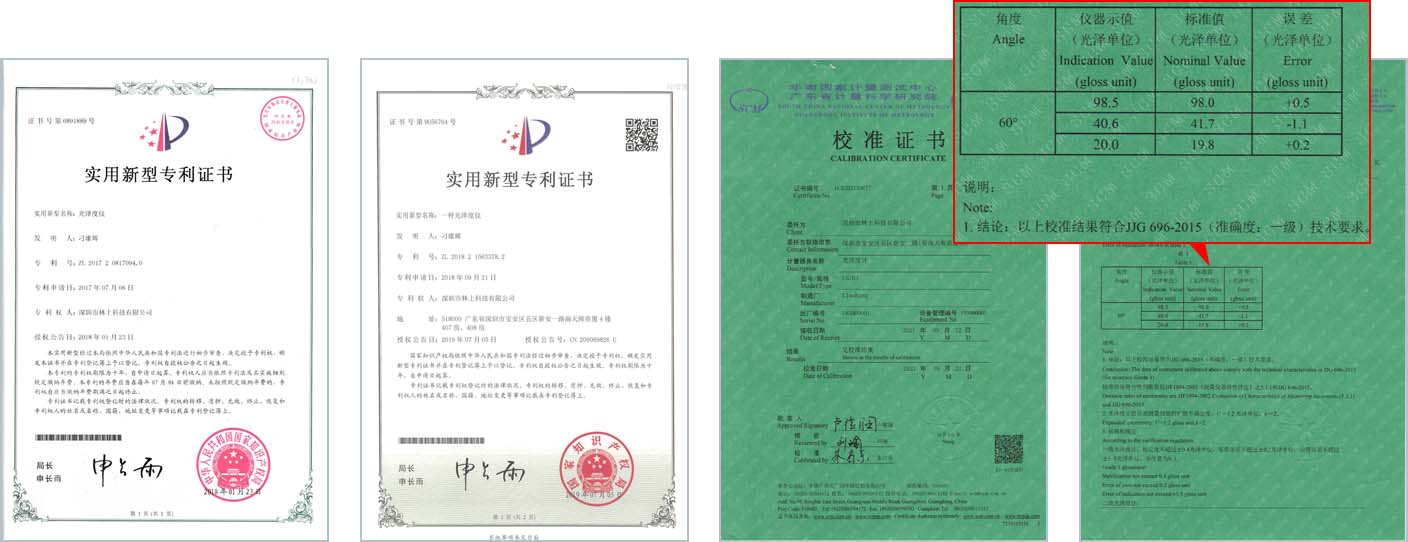

LS193 gloss meter certificates
