20°/60°/85° multi-angle measurement modes 2000GU large measuring range High precision, and conforms to Chinese Grade 1 gloss meter standards

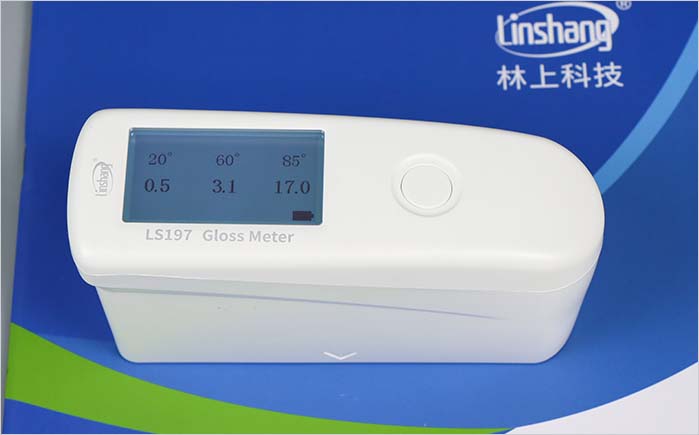

LS197 is a multi-angle designed gloss meter. Thanks to its ivory white engineering housing, its appearance is simple and generous. The device is widely used for the surface gloss measurement of paints, coatings, inks, plastics, ceramics, paper, stones, metals and other materials.
It has 3 measuring angles of 20°, 60° and 85°, so that the gloss at different angles can be measured at the same time. With its 2000GU measuring range, the device can measure materials with high gloss and even specular reflectivity. The device supports normal mode and QC mode. In normal mode, all you need to do is put the gloss meter on the sample whose gloss will be displayed on the screen of the device instantly. No need to wait. In QC mode, it can automatically determine whether the gloss of the material is qualified, thus the measurement efficiency is improved.
Application
ls197 measures printing material
ls197 measures metal

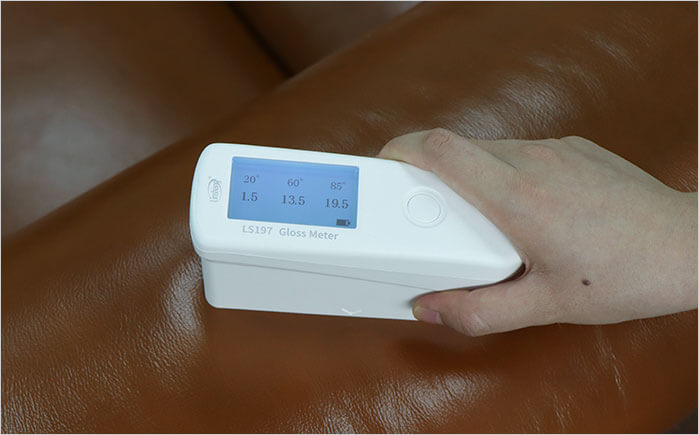

ls197 measures leather goods

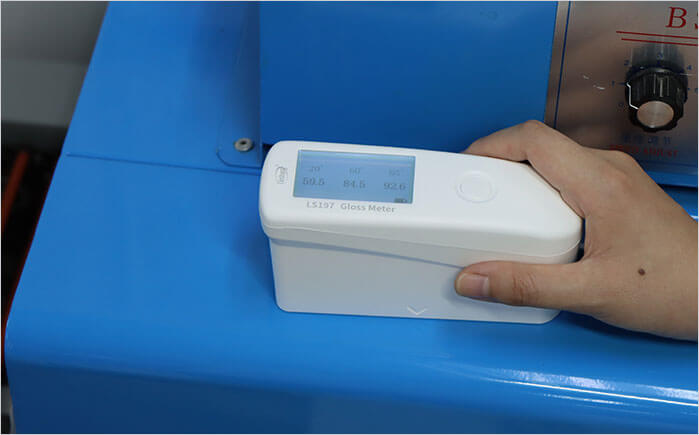

ls197 measures the paint
Feature
Multi-angle design, simultaneous measurement of gloss at different angles
LS197 gloss meter breaks the conventional single-angle measurement mode and adopts a unique design of 20°, 60°, and 85° three-angle measurement. The gloss of different angles can be measured at the same time, which truly makes the measurement easier
2000GU large measuring range
LS197 gloss meter has a measuring range of up to 2000GU, which can measure high gloss and even specular reflective materials, so as to meet the different measurement needs of customers
Free choice of measuring angle
Free combinations of single-angle, double-angles or multi-angles measurement. Free choice of angles

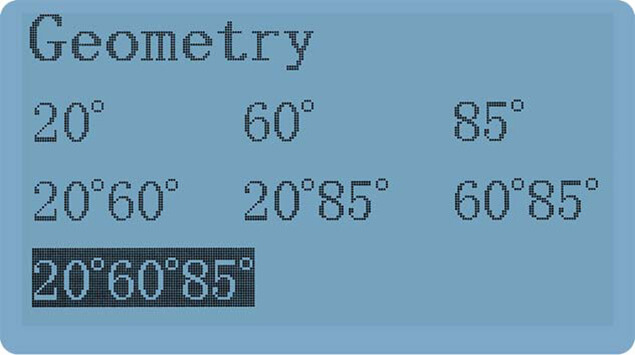

The combination of different measuring angles

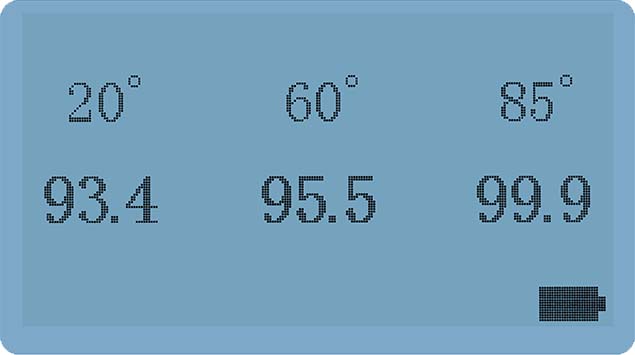

LS197 gloss meter measurement interface
0.2GU good repeatability makes measuring data stable
Using the imported chips and sensors with the unique 50-point linear fitting algorithm, repeatability of LS197 gloss meter reaches ±0.2GU, and its resolution reaches 0.1GU. All these have contributed to unimaginable user experiences
Adopting the D65 light source to make sure the accurate measurements

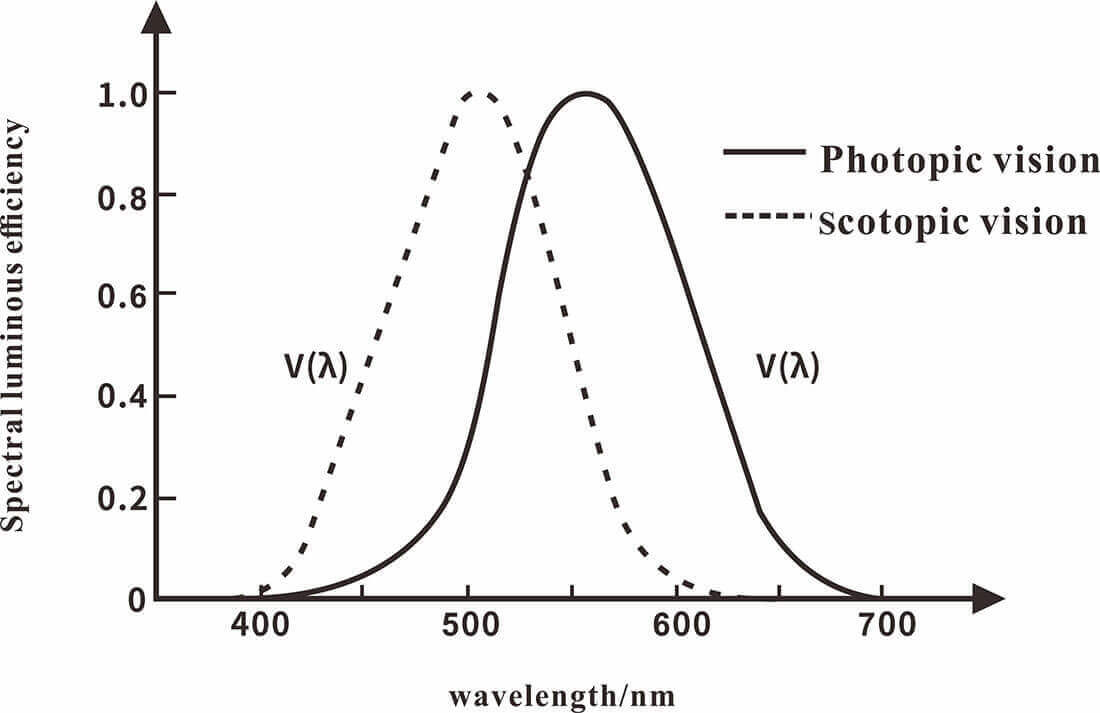

The instrument uses the D65 light source and the spectral response curve of receivers conforms to the fuction of photopic vision V(λ), helping improve measurements of colored objects
Our device conforms to Grade 1 gloss meter standards, not all gloss meters can do it
The accuracy of the device in the full range meets the Chinese Grade 1 working machine standards, which ensures that it passes the inspection of the relevant metrology organization. Not all gloss meters can do it.

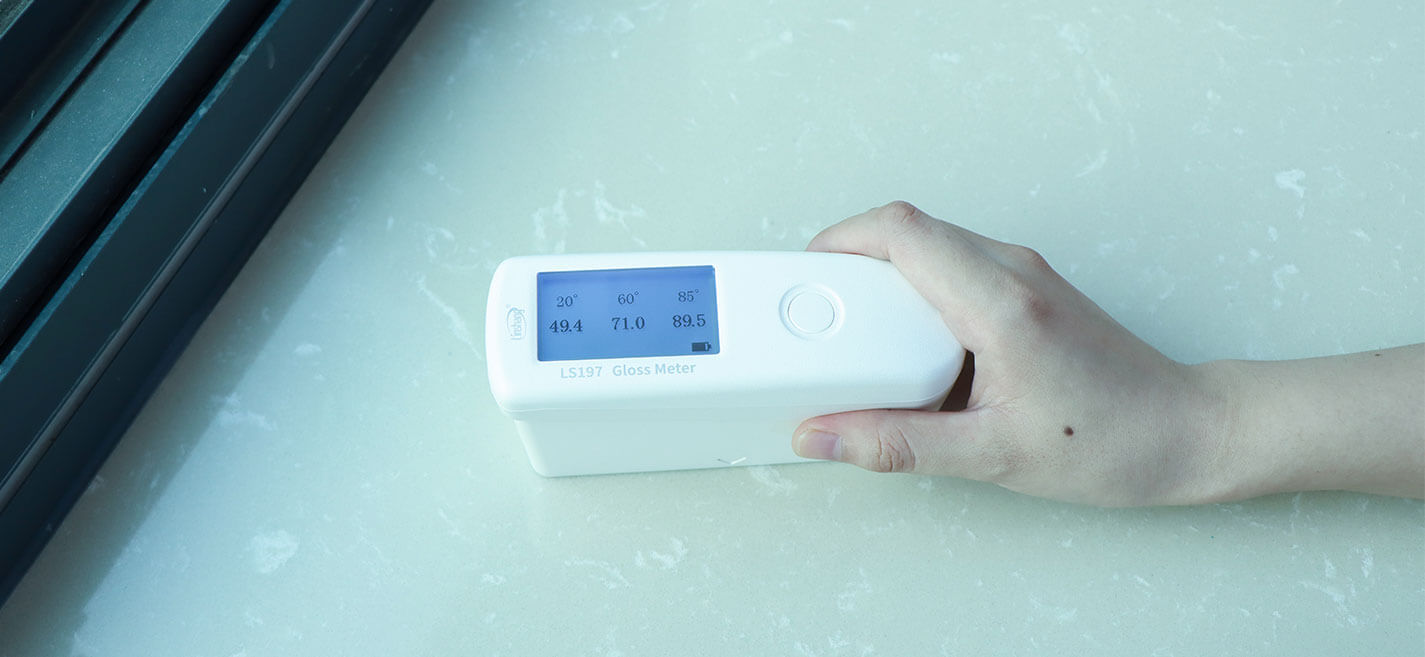

Just put and test, refuse to wait for 0.5s
After the device is turned on, there is no need of button operations and the measuring speed is so fast that users don't have to wait for even 0.5s to see the gloss of the tested materials
QC mode for auto qualification
In addition to normal mode, the device also supports QC mode. In this mode, the user can set the upper and lower limits for qualification judgment. This mode is suitable for batch testing

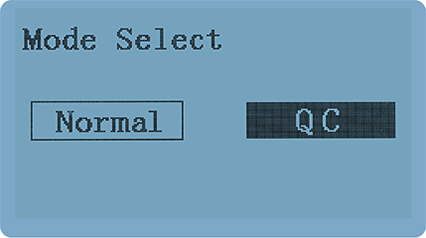

mode select interface

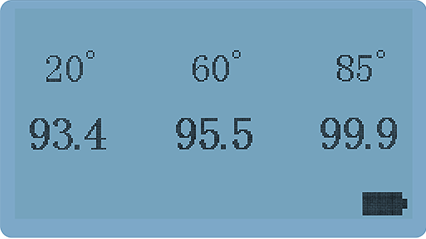

normal mode interface

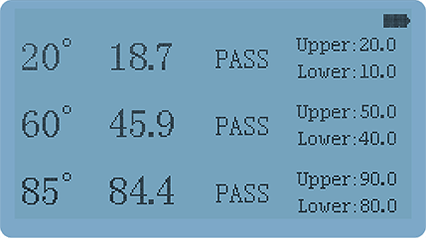

QC mode interface
LS197 measures car paint in normal mode

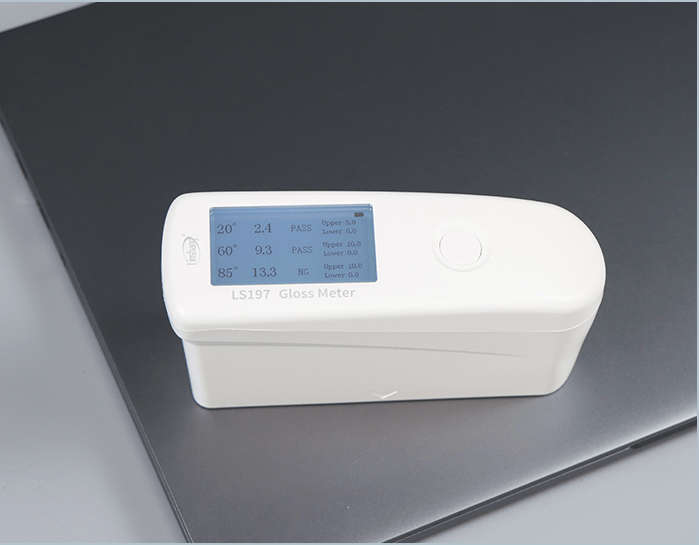

LS197 measures metal in QC mode
Professional PC Software for Clearer Data Records
The instrument supports PC-connected measurement. The PC software can display measurement results in real time and export them as Excel files, making measurement data management more professional
Smooth appearance, and comfortable grip
The housing is made of ivory white engineering plastic, humanized. And the streamlined body brings a comfortable grip, which realizes effortless long-term measurement
Strive for suitableion, and pursue good quality
Long battery life, energy saving and environmental protection
Environment temperature compensation
One-button calibration for accurate measurement
Qualifications and Standards
Product Standards
LS197 gloss meter meets the following standards：ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530, GB/T9754, GB/T13891, GB/T7706, GB/T8807
It also meeting all the requirements of 1st class working machine calibration in JJG 696-2002 Verification Regulation of Specular Gloss Meters and Gloss Plates

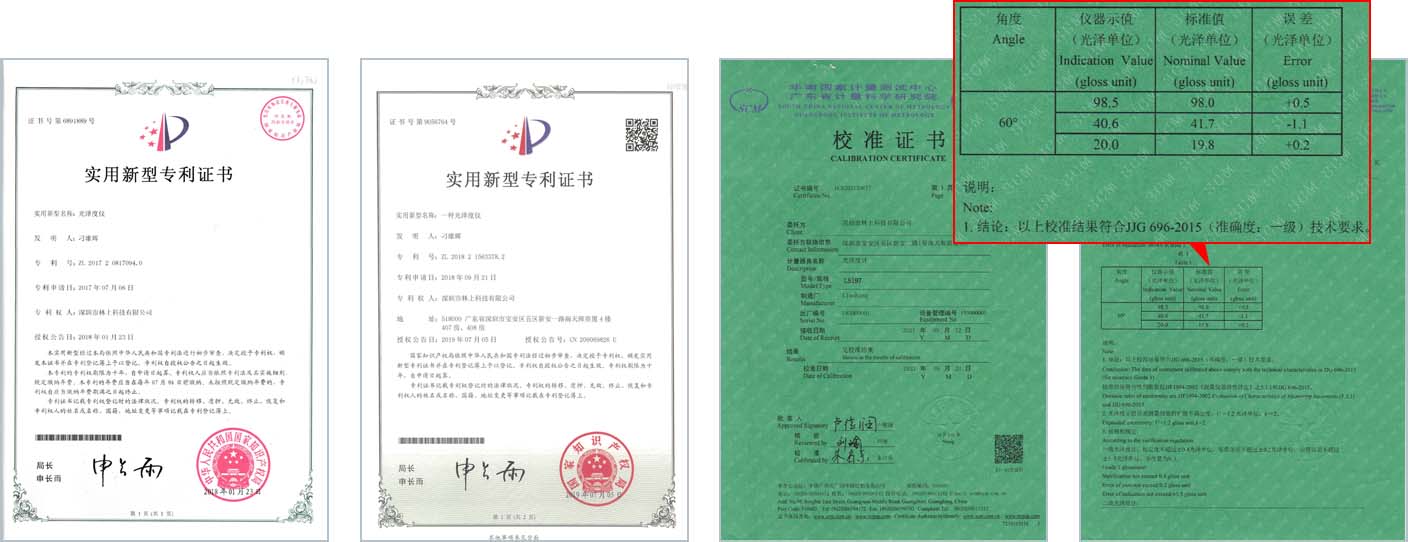

Product Qualifications
Gloss meter model selection
