Optional bluetooth wireless printer to quickly print measurement results Double-coil digital probe, accurate measurement Automatic switching of various hardness standards, eliminating the cumbersome manual table lookup Built-in orientation sensor and 360-degree impact mitigation for the probe
LS253 is a split-type Leeb hardness tester. The probe and the host are connected by aviation plugs, and the host is capable of automatically identifying the impact device. The instrument adopts mature digital double-coil probe technology, which provides precise measurement results and great interference-resistance. Providing a variety of hardness scales , such as Leeb scale (HL), Vickers scale (HV), Brinell scale (HB), Shore scale (HS), Rockwell scale (HRA/HRB/HRC), and they can make a mutual conversion to avoid cumbersome manual calculation. Besides the hardness, the instrument can measure the strength of the materials. For various measuring needs, the instrument may be fitted with four different impact devices, D, DC, DL, and C.
Application
LS253 Leeb hardness tester is suitable for testing the hardness of materials such as steel, cast steel, alloy steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy, copper-tin alloy, pure copper and forged steel. The instrument can be widely used in machine tool guides, automotive chassis, heavy workpieces, mold cavities, bearings, pressure vessels and installed machinery or assembly parts and can help manufacturers to carry out product quality inspection and reasonable process analysis.
Impact device selection
| No | Impact type | Application |
|---|---|---|
| 1 | D | Ordinary metal parts |
| 2 | DC | Short size, suitable for internal holes or narrow areas |
| 3 | DL | Slender narrow groove, tooth flank or bottom of bore |
| 4 | C | Hardfacing and small or thin components |
Features
Free to match 4 kinds of impact devices.
Aviation plugs link the host and impact device, and one host may be freely matched with up to four impact devices to meet various measuring settings.

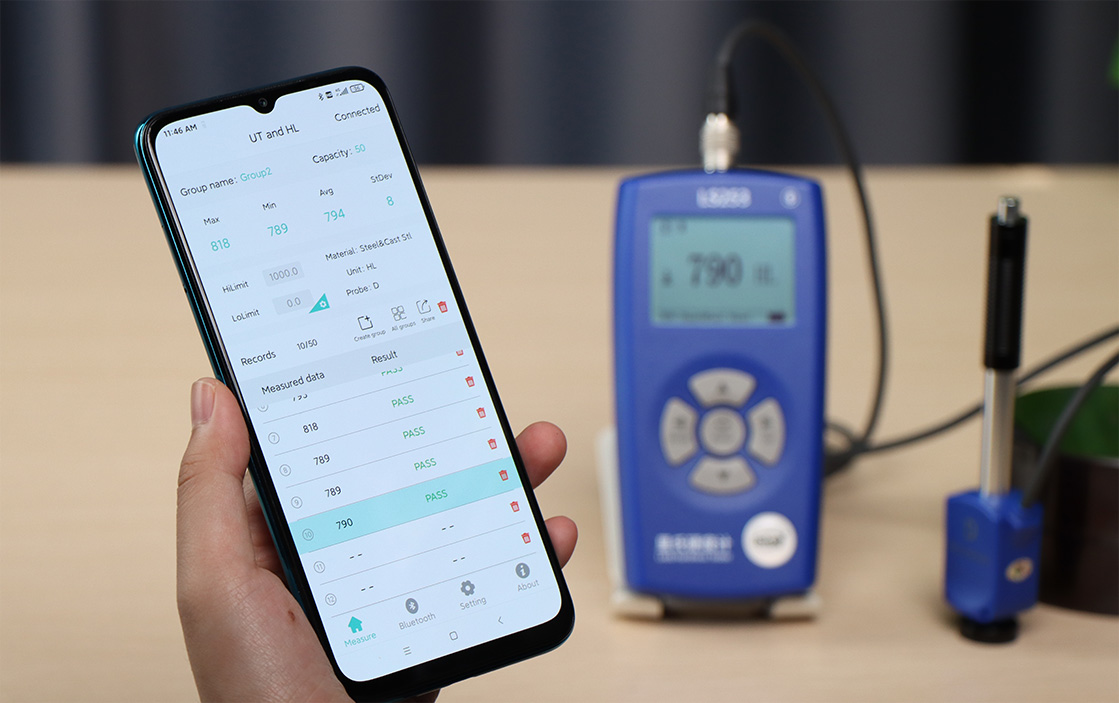

Equipped with Bluetooth APP
The instrument is connected to the mobile phone APP through Bluetooth to realize multiple sets of data storage, and the measurement data can be shared.
Double coil technology, high precision, good repeatability
Using mature dual-coil technology, it has good measurement accuracy and repeatability

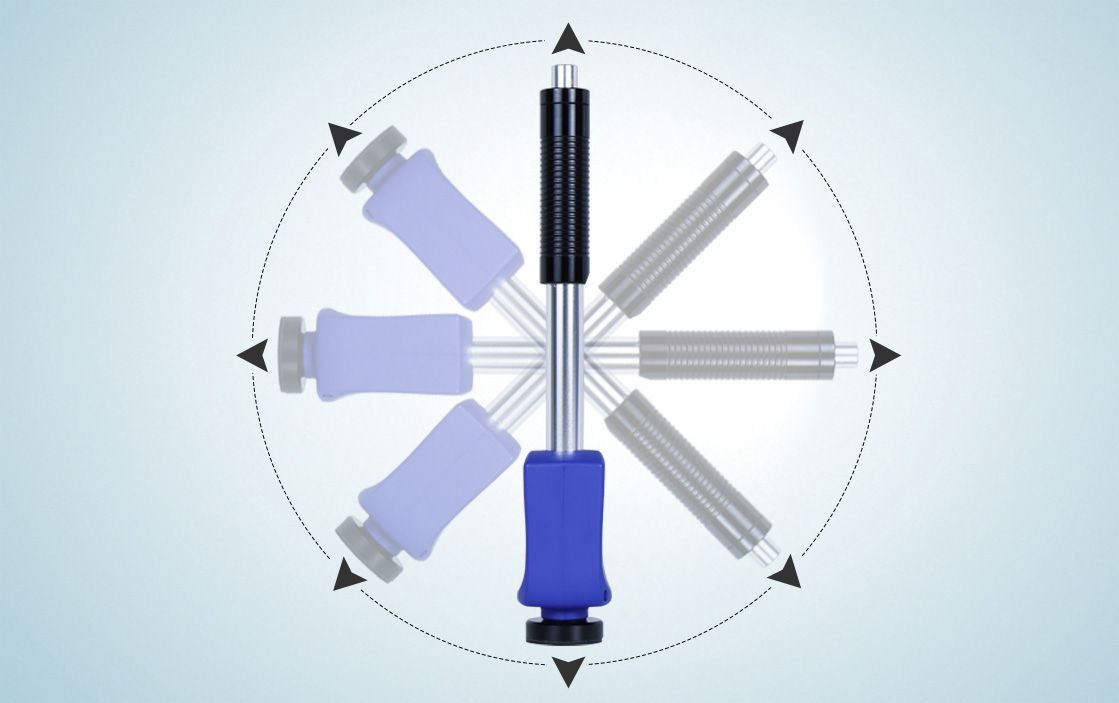

Built-in direction sensor, all-round impact compensation
The probe contains an integrated direction sensor that accomplishes 360° all-around worry-free measurement by automatically compensating measurement mistakes in various direction
Conversions to different hardness scales
LS253 hardness tester provides a variety of hardness scales, which can be converted between Leeb (HL), Vickers (HV), Brinell (HB), Shore (HS) and Rockwell (HRA/HRB/HRC) eliminating the cumbersome steps of manual table lookup.
High-precision, ensuring that it can pass the inspection of the Chinese relevant metrology institute
The LS253D's measurement precision may be as high as 6HL, enabling it to pass examination by the Chinese national relevant metrology institution.

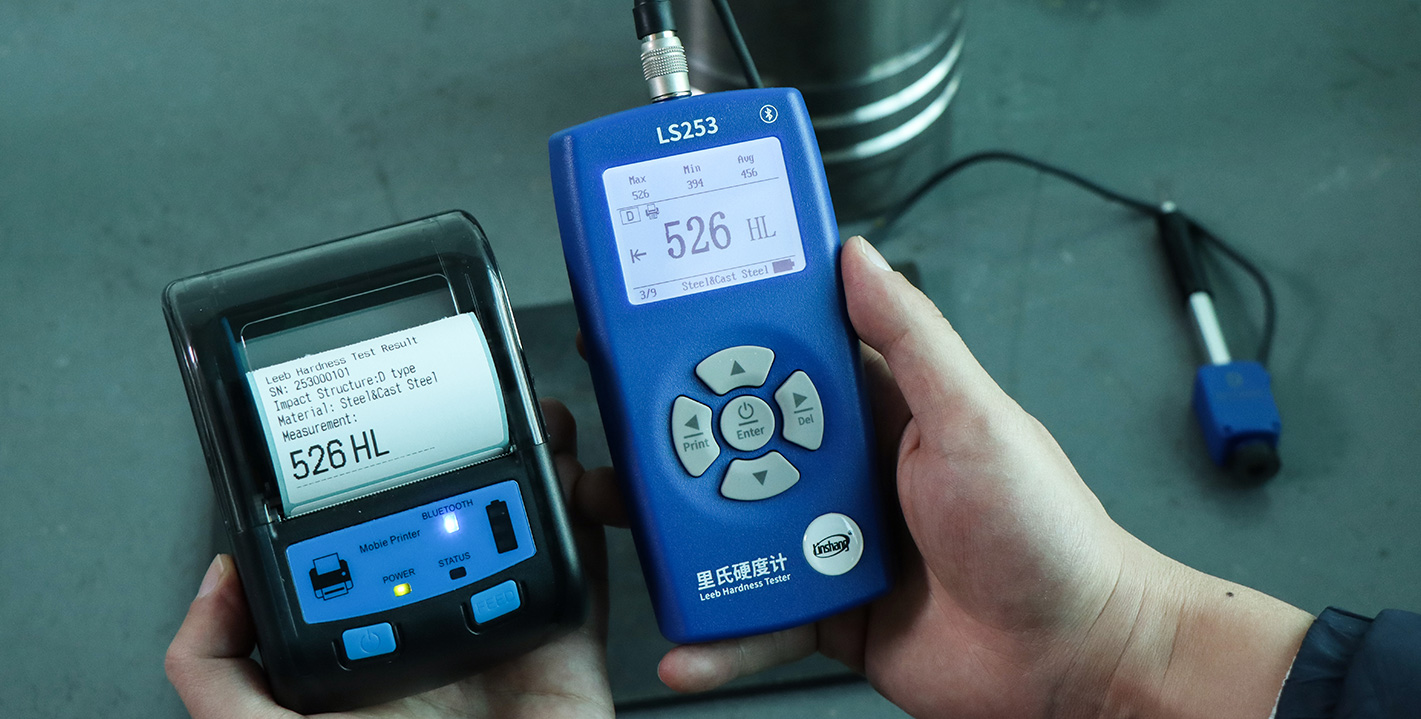

Optional Bluetooth thermal printer
The measurement results may be printed on-site by connecting through Bluetooth to a thermal printer.
Two measurement modes are optional
Two measurement modes, QC mode and statistical mode, can be selected to meet different measurement needs. The tester can automatically count the maximum value, minimum value, and average value of the lastest 9 measured values. The tester can set the upper ad lower limits and judge whether the hardness of the materials is qualified which is convienent for batch inspection

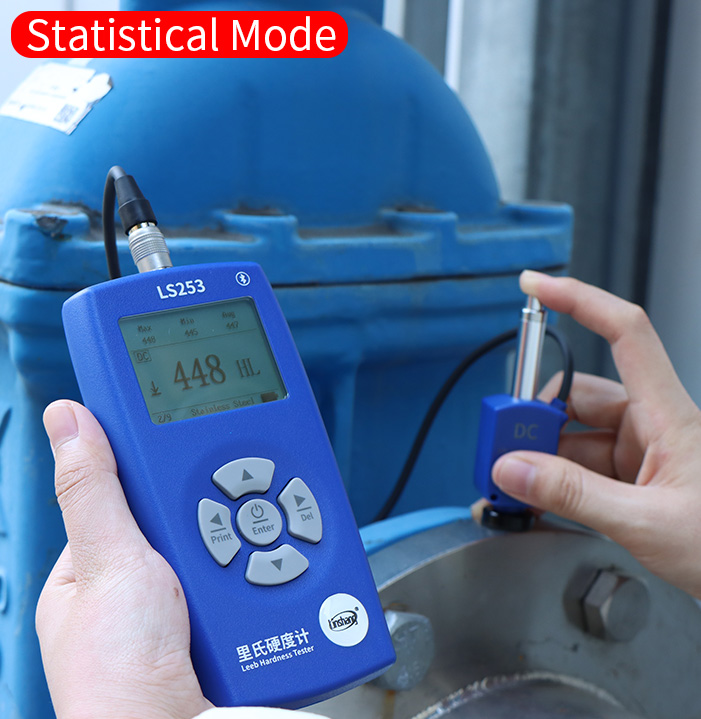

Statistical Mode

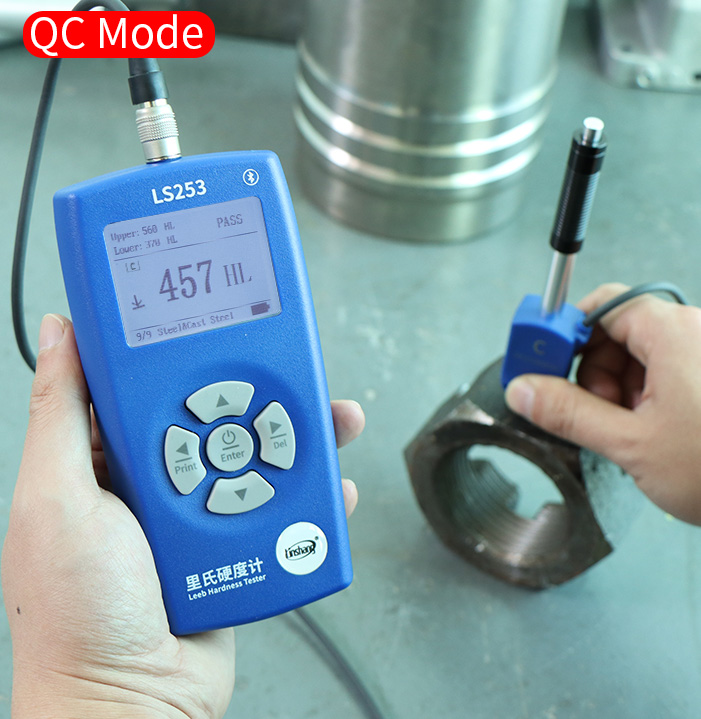

QC Mode
Instrument low power consumption technology, adopts dynamic sleep algorithm, automatic shutdown function, more energy-saving
Using digital probe technology, strong anti-interference ability
LCD screen, high brightness and easy for reading in dark environment
Equipped with standard Leeb hardness standard test block, the user can save the cost of subsequent test block consumables
Qualifications and Standards
LS253 Leeb Hardness Tester conforms to the following standards:
GB/T 17394.1 Metallic materials-Leeb hardness test-Part 1: Test method
GB/T 17394.2 Metallic materials-Leeb hardness test-Part 2: Verification and calibration of hardness tester
GB/T 17394.4 Metallic materials-Leeb hardness test-Part 4:Tables of hardness values conversion
JB/T 9378-2001 Industry standard of Leeb hardness tester
JJG 747-1999 Verification regulation of Leeb hardness tester

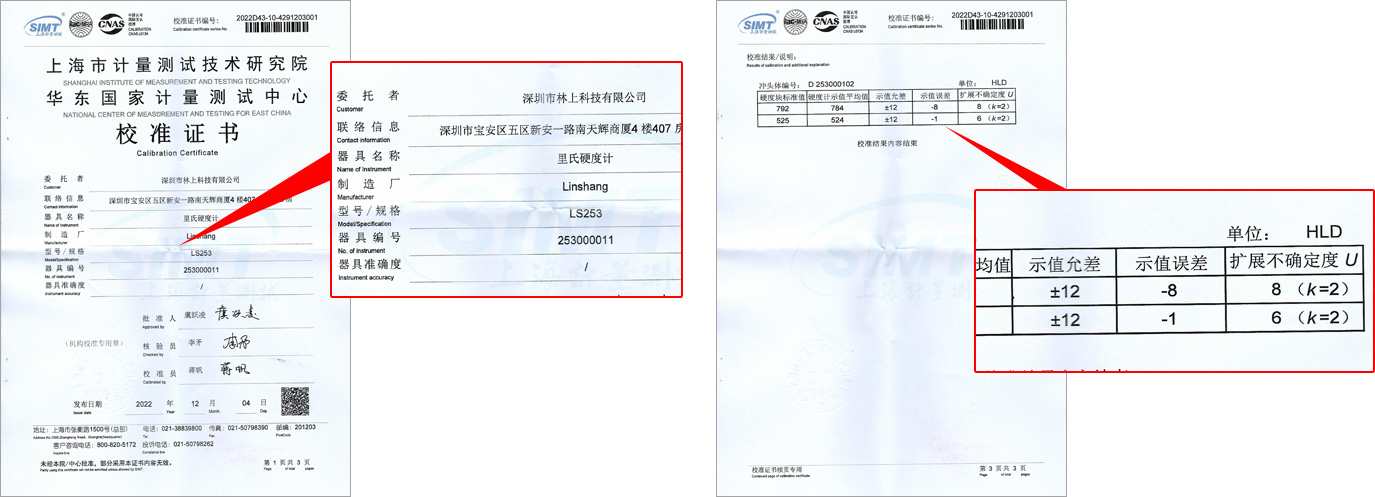

Caliberation Certificate
Precaution
The Leeb hardness tester is one suitable for large, heavy workpieces. Small, thin workpieces should be coupled to a firm support for testing.
| Impact device type | Minimum mass | Minimum thickness (uncoupled) | Minimum thickness (coupling) |
|---|---|---|---|
| D、DL、DC | 5kg | 25mm | 3mm |
| C | 1.5kg | 10mm | 1mm |

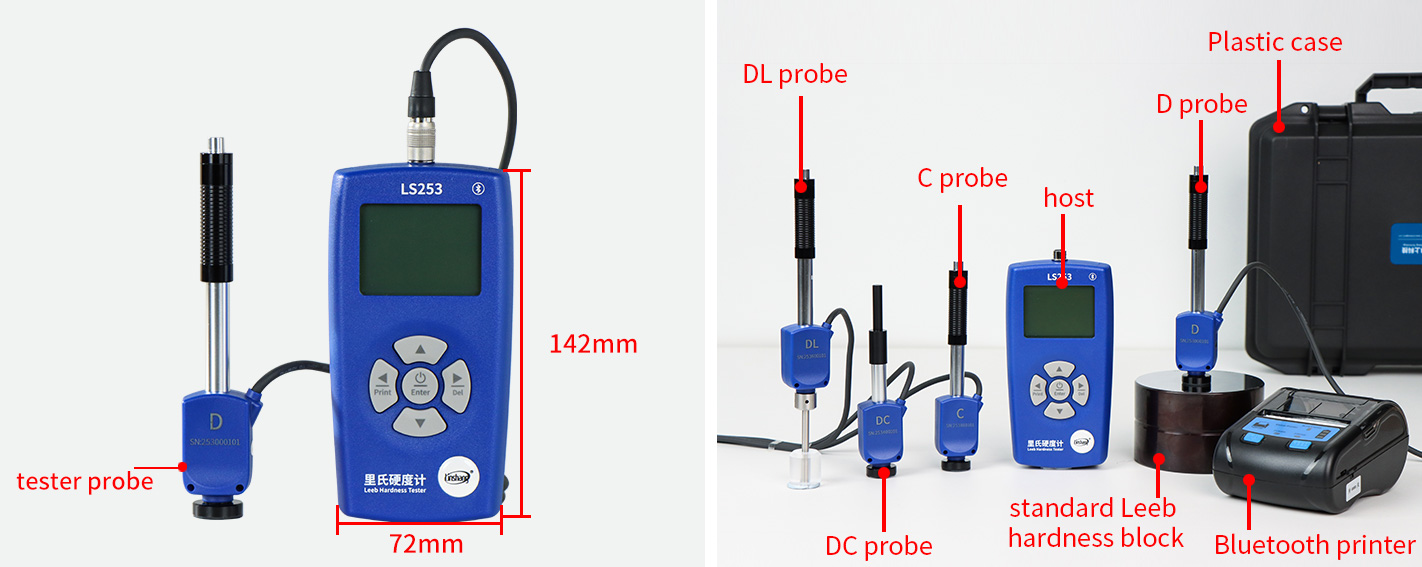

Packaging
| No. | Product Name | Quantity | Unit |
|---|---|---|---|
| 1 | Leeb Hardness Tester Host | 1 | Set |
| 2 | Leeb Hardness Tester Probe | According to the numbers of probe ordered | |
| 3 | Bluetooth Printer | According to the numbers of printer ordered | |
| 4 | Standard Leeb hardness block | 1 | pcs |
| 5 | Nylon Brush | 1 | pcs |
| 6 | Small support ring | 1 | pcs |
| 7 | User Manual | 1 | pcs |
| 8 | Calibration Report | 1 | pcs |
| 9 | Certificate / Warranty card | 1 | pcs |
| 10 | Plastic Case | 1 | pcs |
