Multi-mode, multi-parameter measurement for broader applications Equipped with plant mode，accurately detect PPFD 1,000,000Lux ultra-large range design High precision, meet relevant metrology inspection requirements

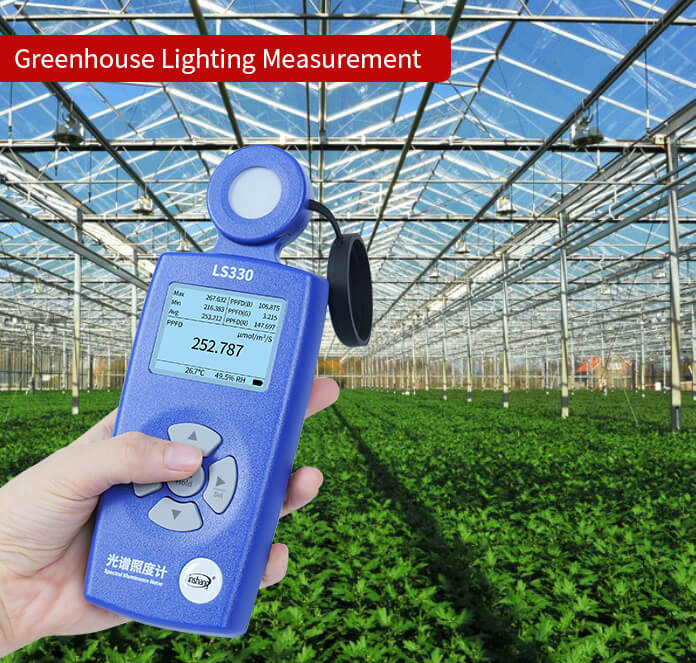

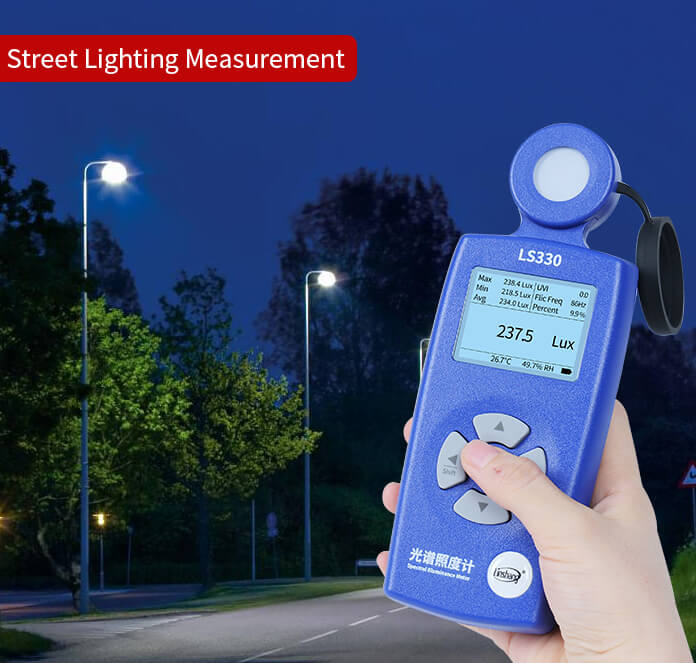

LS330 spectral Illuminance Meter is a versatile instrument designed with a spectral sensor. It is used for measuring illuminance, UV index, flicker frequency, standard deviation of color matching (SDCM), color rendering index (CRI), correlated color temperature (CCT), blue light hazard ratio, temperature, and humidity in various scenarios such as lamps and lanterns lighting, outdoor lighting, greenhouse lighting, and stage lighting. The instrument also can display the spectral curve, which helps identify the type of lighting fixture.The instrument also has a plant illumination mode, which is specially designed for plant growth environments. It can accurately measurephotosynthetic photon flux density(PPFD), PPFD (Blue), PPFD (Green), PPFD (Red), Yield Photon Flux Density (YPFD), chlorophyll-a, and chlorophyll-b, helping users understand and optimize light management during the planting process and improve plant growth efficiency. It is suitable for home gardening, plant factories, greenhouses, agricultural research, plant lighting, and other fields.
Features
Multi-parameter, wider application
In normal mode, the instrument measures parameters like illumination, CCT, flicker frequency, UV index, SDCM, CRI, temperature, and humidity to evaluate lighting characteristics. In plant mode, it accurately measures PPFD, YPFD, chlorophyll-a, and chlorophyll-b to optimize plant lighting for better quality and yield.
Freely switch between normal and plant modes
The instrument offers both normal and plant illumination modes, meeting diverse measurement needs. It handles both everyday lighting detection and plant growth parameters (e.g., PPFD, chlorophyll content), helping users optimize lighting in various scenarios.

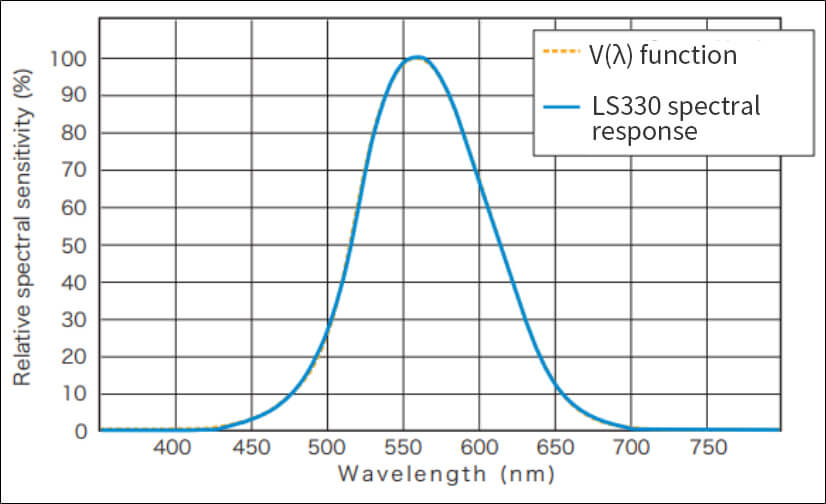

High-precision spectral sensors
The instrument is designed with a spectral sensor, and the spectral response matches the V(λ) function. This ensures accurate measurement precision.
Spectral curve measurement
The instrument has a spectral curve measurement function, which can view the light intensity and distribution at different wavelengths, identify whether the light source has spectral missing and detect whether it has blue light protection.
1 million Lux measurement range, suitable for both strong and dim light
Ultra-large range design, range up to 1 million Lux, both strong and dim light can be measured accurately.

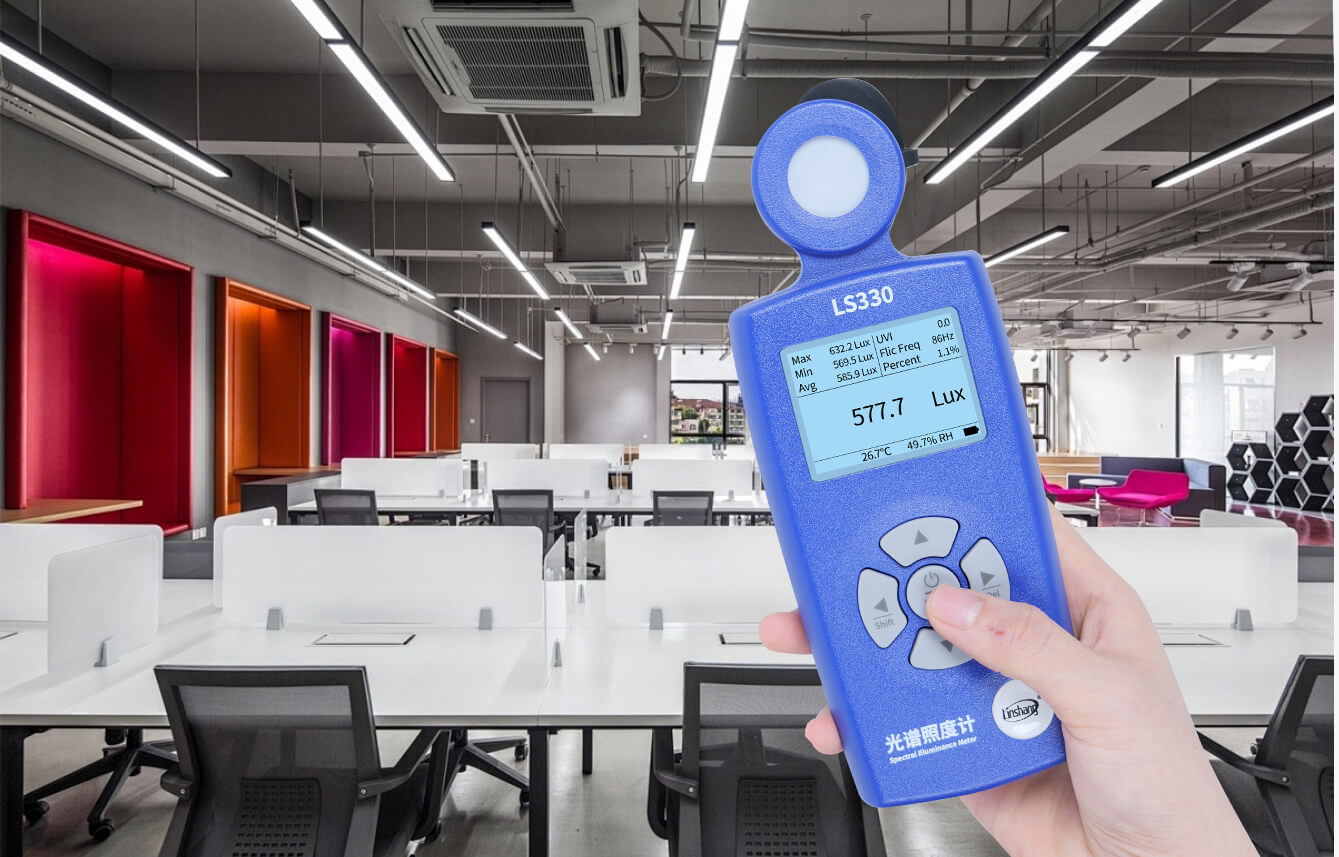

Flicker measurement, easily determine if lighting meets requirements
The instrument features a flicker measurement function, can evaluate whether lighting meets requirements based on flicker frequency and percent flicker. This provides reference for sales and R&D of lighting.
Measurement of CCT
The instrument measures correlated color temperature, aiding lighting manufacturers in fixture development and lighting design.
CRI and CDCM measurement
The instrument has CRI and SDCM measurement function, clearly showing the difference between the testing light source and the standard light source.
Display blue light hazard ratio
The blue light hazard ratio can be displayed to objectively evaluate the blue light hazard of the lighting source. (The blue light hazard ratio is the ratio of the blue light hazard to the corresponding radiation amount. The larger the ratio, the greater the proportion of blue light.)

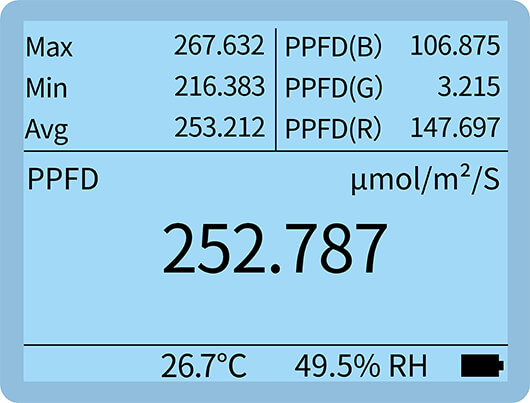

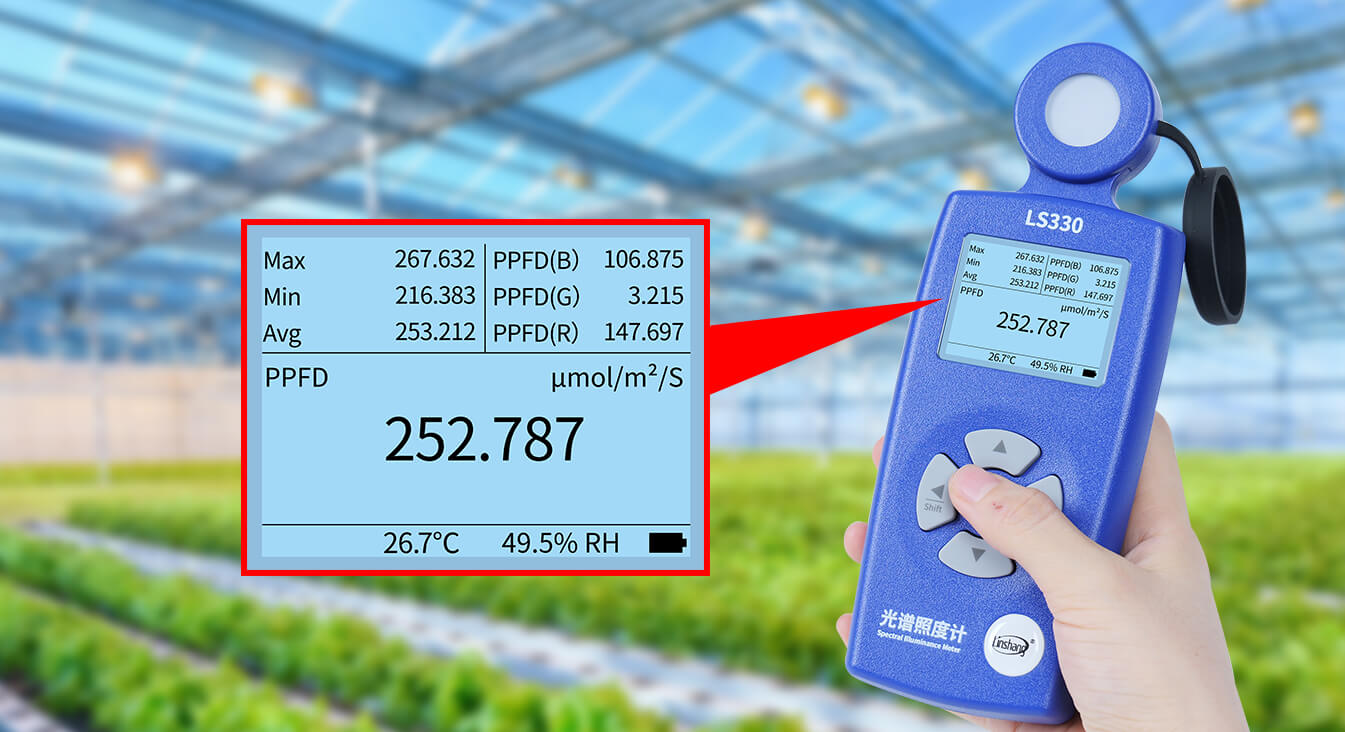

Accurately measure photosynthetic photon flux density (PPFD)
The instrument can accurately measure photosynthetic photon flux density (PPFD), yield photon flux density (YPFD) and chlorophyll content, providing comprehensive data support to help optimize plant light intensity, distribution and health status, and improve growth and yield.
Measure UV index, temperature, and humidity
The instrument also measures environmental parameters such as UV index, temperature, and humidity, making it suitable for evaluating plant lighting sources.
High precision, meet relevant metrology inspection requirements
The instrument's illuminance and color temperature measurements are ensured to pass relevantinspection.

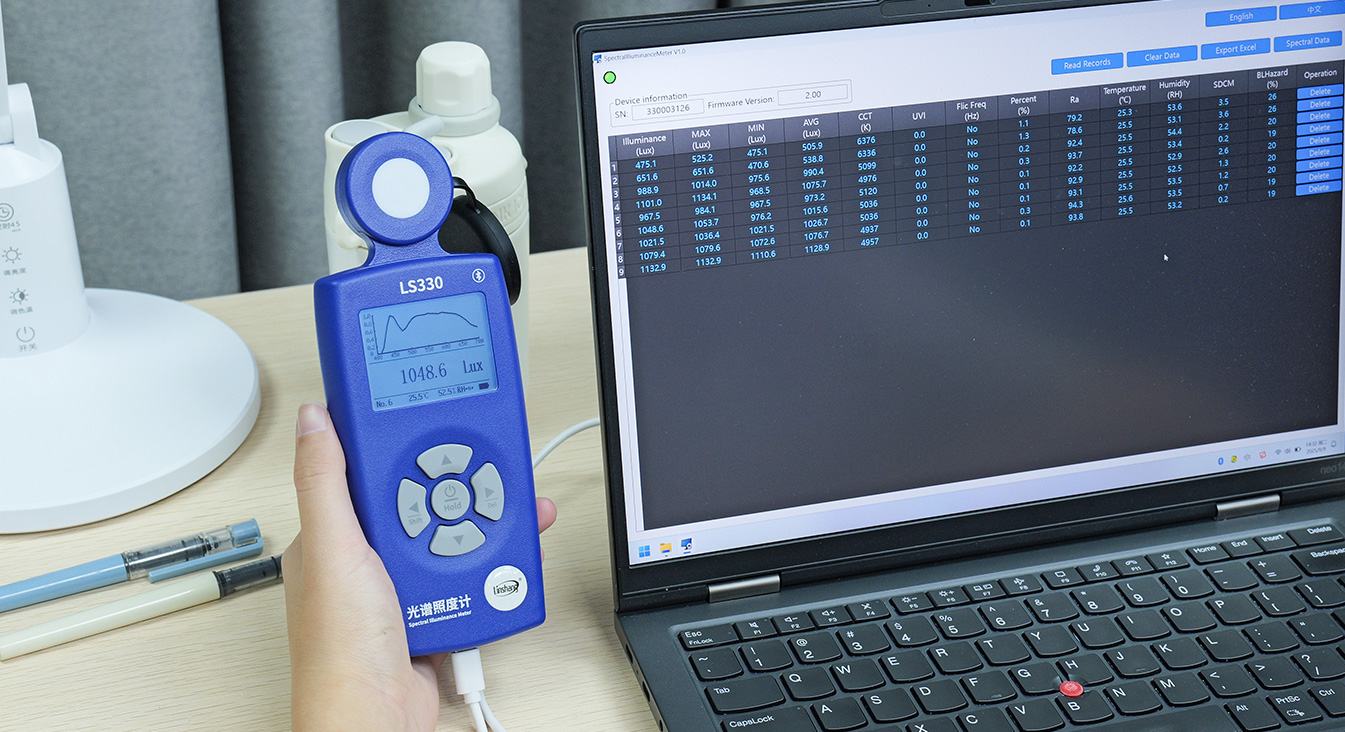

PC Software Function
Supports PC software connection with one-click export of measurement data to Excel, enabling efficient data storage and sharing while improving team productivity.

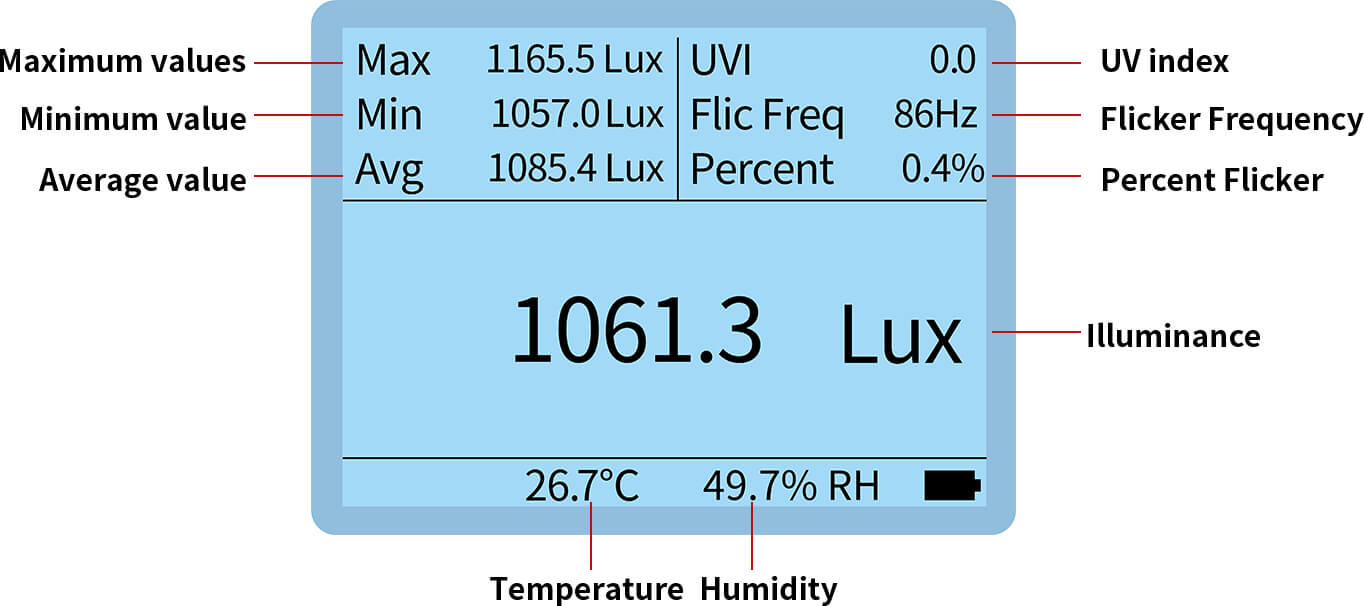

Rich statistical functions

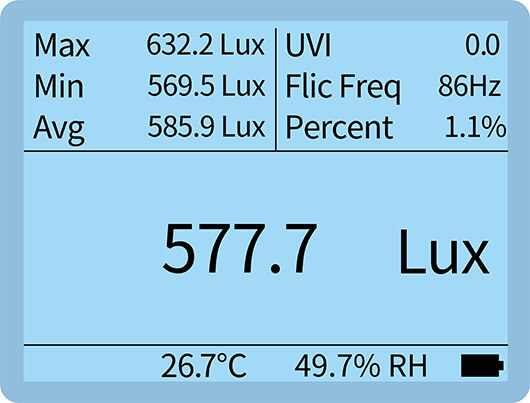

Simultaneously displays real-time, maximum, minimum, and average illuminance values.
Mature digital probe technology
The instrument uses mature digital probe technology, digital signal processing done directly at the probe.This reduces interference and provides good measurement accuracy.
Instant refresh, response time less than 0.7s
AutoOff can prevent battery drain
Switchable between Lux and Fc
Qualifications and Standards
Standards for the product：
JJG 245-2005 Verification Regulation of Illuminance Meter
GB 50034-2024 Standard for lighting design of buildings
GB 40070-2021 Hygienic requirements of study products for myopia prevention and control in children and adolescents
GB/T 5702-2019 Method for measuring the color rendering properties of light sources
GB/T 9473-2022 Performance requirements for table lamps for paper task
GB/T 18204.1-2025 Examination methods for public places Part 1:Physical indicators
GB/T 20145-2006 Photobiological safety of lamps and lamp systems
GB/T 21005-2007 UV erythema reference action spectrum, standard erythema dose and UV index
QX/T 87-2008 UV index forecast
GBZ 39942-2021 Application of GB/T 20145 for the assessment of blue light hazard to light sources and luminaires
GBZ 44064-2024 Technical report on LED artificial lighting environment for plant growth
GBT 44941-2024 Terminology for horticulture lighting
GBT 44473-2024 LED lamps, LED luminaires and LED modules for horticulture
Lighting-Performance specifications
IEEE Std 1789-2015 “IEEE Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers”
Qualifications and Standards
Packing List
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Spectral Illuminance Meter | 1 | pcs |
| 2 | User Manual | 1 | pcs |
| 3 | Calibration Report | 1 | pcs |
| 4 | Certificate/Warranty Card | 1 | pcs |
