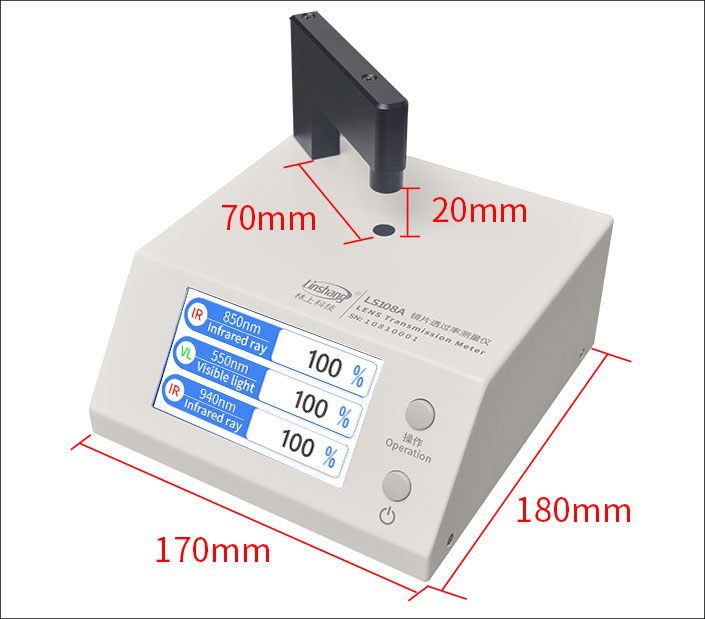

Test 850nm/940nm IR and 550nm visible light transmittace Three data can be obtained by measuring one time Test aperture：1 mm
LS108A lens transmission meter is mainly used to measure IR ink hole of mobile phone lens. (It is also suitable for infrared ray transmittance testing of various products that use infrared technology, such as remote control windows, IR cut, etc.) The LS108A lens transmission meter use an infrared 850nm light source, an infrared 940nm light source and a visible 550nm light source to illuminate the transparent material under testing. The sensor detects the incident light intensity of the three light sources and the light intensity after passing through the transparent material. The ratio of the incident light intensity is the transmittance, expressed as a percentage. The test aperture is 1mm. Measured object whose size is greater than 1mm can be tested. Three data can be measured at a time.

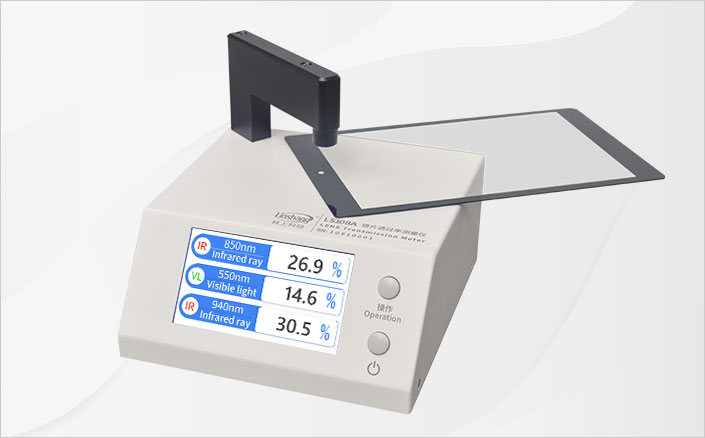

LS108A transmission meter tests IR ink hole

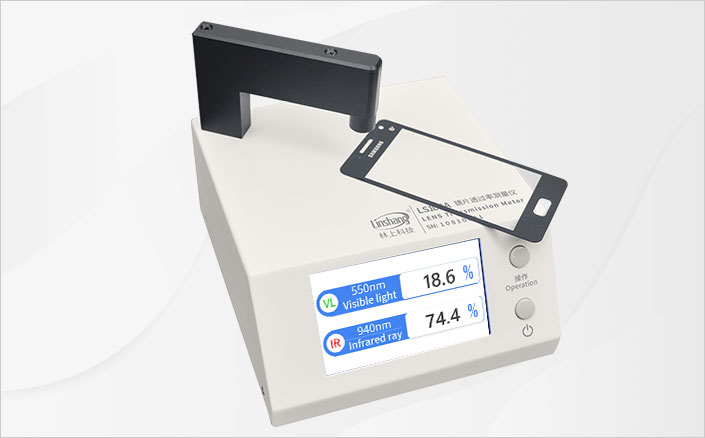

LS108A transmission meter tests IR ink hole

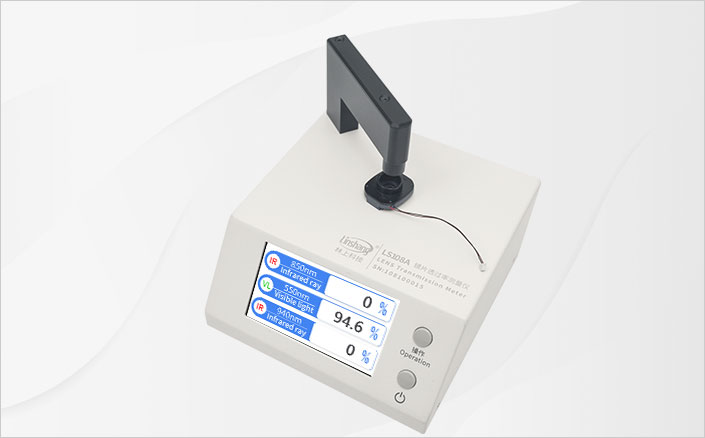

108A transmission meter tests IR window

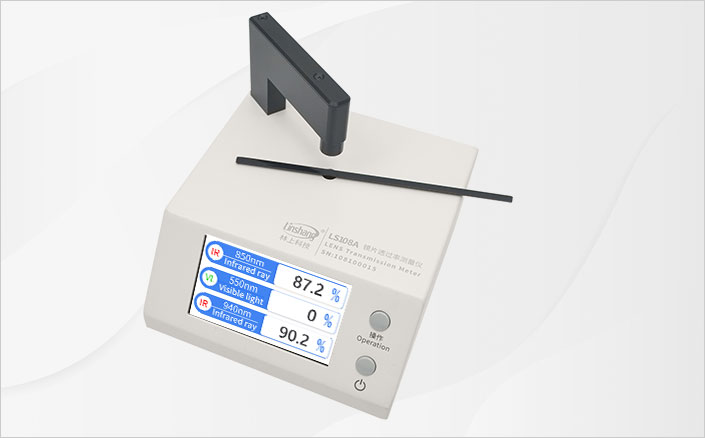

LS108A transmission meter tests infrared cut filter
Features
Three-in-one light source path design
Three light sources share a test hole and are equipped with alignment indicator LEDs for auxiliary alignment. Three data can be measured at a time

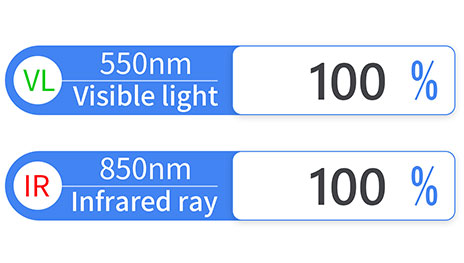

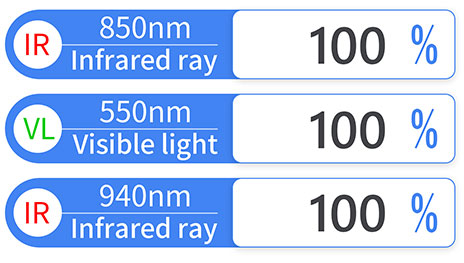

Three parameters can be measured at once, Three dispaly interfaces are available
The spectrum transmission meter can measure the 550nm visible light transmittance and the 850nm and 940nm infrared transmittance
Small test aperture, widely applicable
The aperture of test hole is 1mm, and the meter is not one suitable for measuring the transmittance of the IR ink hole of the mobile phone lens but also for the infrared transmittance test of various products with infrared technology, such as the remote control window and IR cut filter

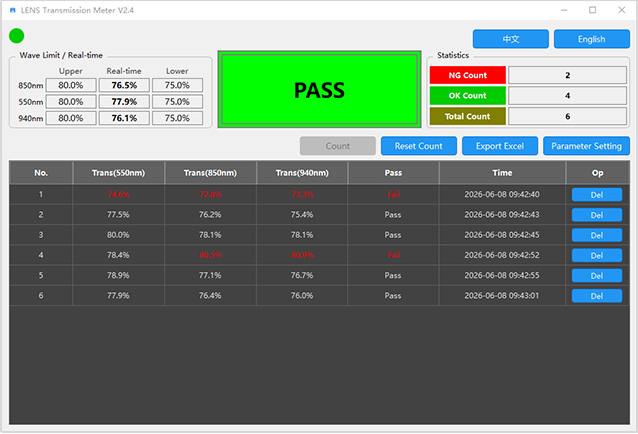

Provide practical computer software support

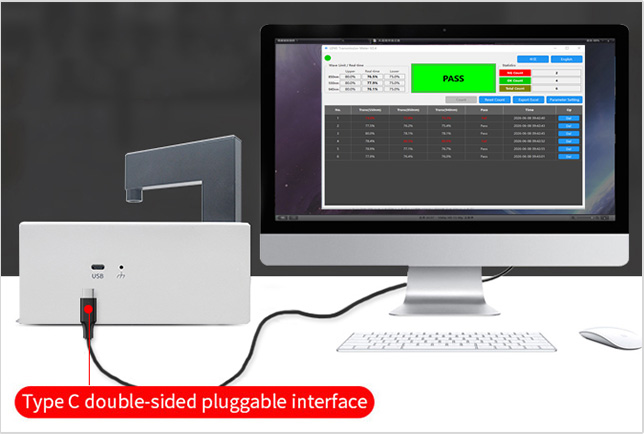

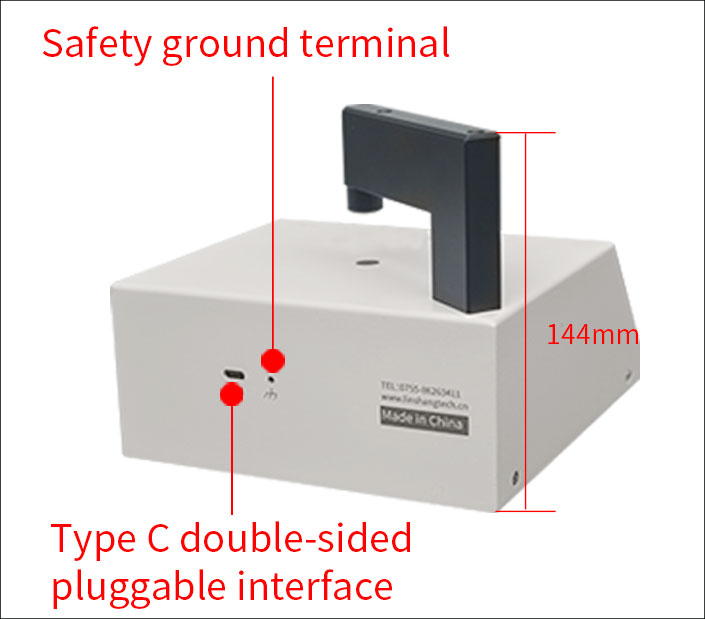

It can connect to computer software via a Type-C interface, and the software can quickly determine whether the test result is PASS or NG, and count the number of tests
Using large LCD screen for easy reading
Real-time dynamic self-calibration function, which automatically calibrates to 100% transmittance after turning on
5V mobile power, easy to connect

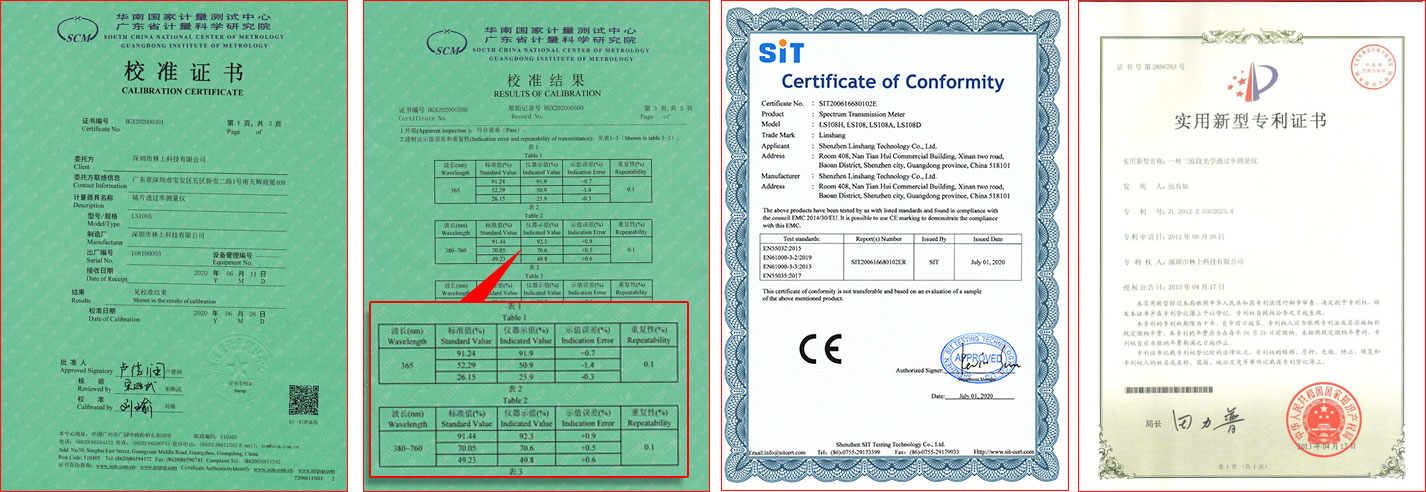

Qualifications and Standards
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS108A lens transmission meter | 1 | pcs |
| 2 | DC5V Adapter | 1 | pcs |
| 3 | User Manual | 1 | pcs |
| 4 | Certificate / warranty card | 1 | pcs |
| 5 | Packing box dimension 231*241*161（L*W*H） | 1 | pcs |
| 6 | USB extension cable | 1 | pcs |
