Obtain three data by one measurement Parallel light path design 1mm test aperture

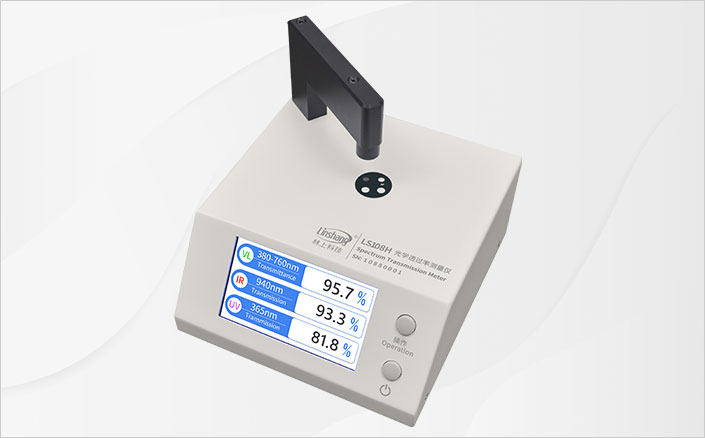

LS108H spectrum transmission meter is a desktop instrument, which is exclusively designed for optical transmittance test of various materials such as lens, glass, coating material, organic material and paint, etc. The test aperture of the meter is 1mm, which is suitable for the measurement of light transmittance, infrared and ultraviolet transmittance of small size materials. The flat bench-top meter is available for placing various test samples. The test is fast and accurate. Once the test material is placed on the meter, the test results will be displayed immediately. The meter use parallel light path design that can measure thick materials.
The LS108H optical transmittance tester use ultraviolet light source, infrared light source and visible light source to illuminate the transparent material. The sensor detects the incident light intensity of the three light sources and light intensity after passing through the transparent material under test. The ratio of the over light intensity to the incident light intensity is the transmittance shown in percentage.
Application

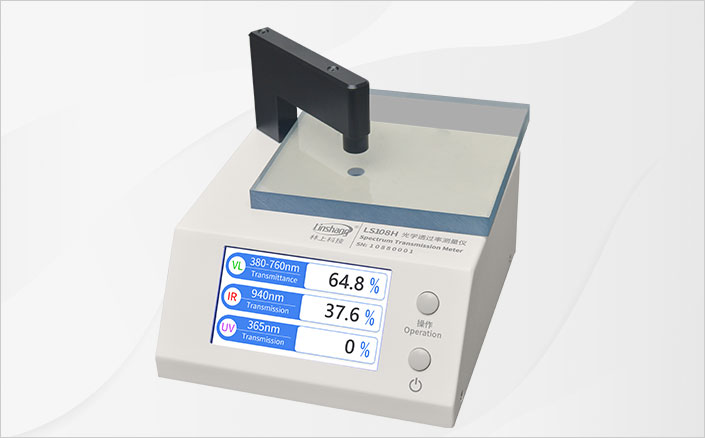

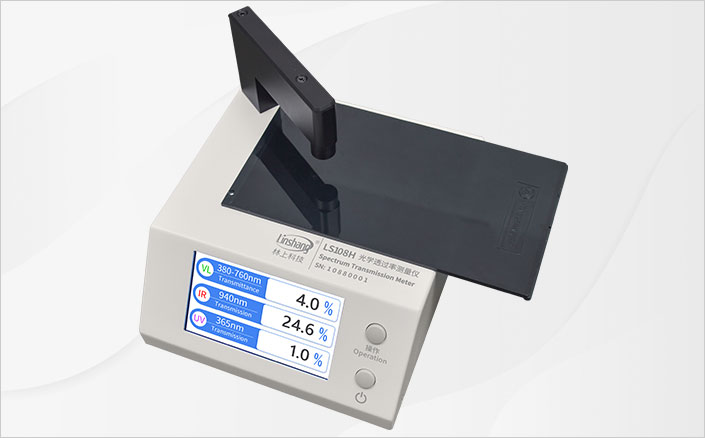

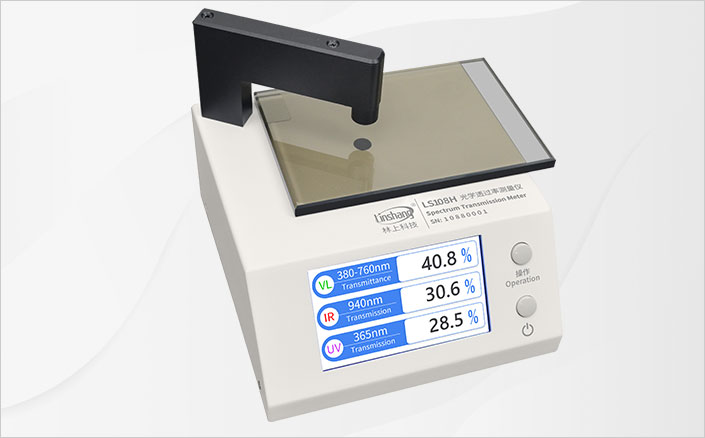

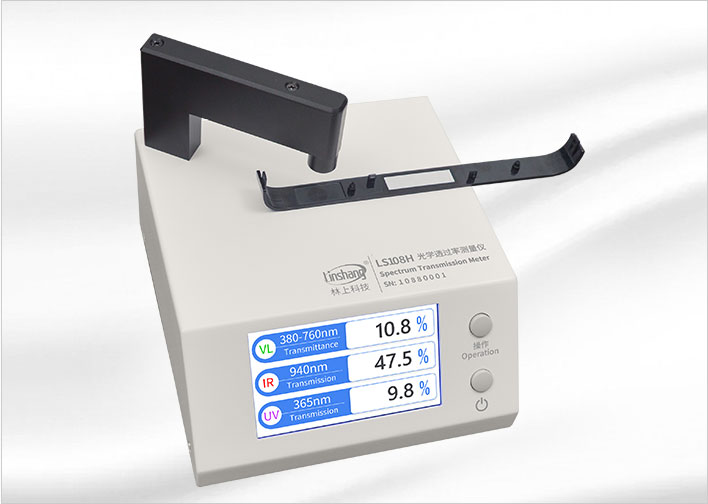

It is suitable for measuring the transmittance of various uniform transparent materials, such as glass, PC, coated glass, IR hole on the remote control window, plastic, paint, lens, organic glass (acrylic), etc.
Features

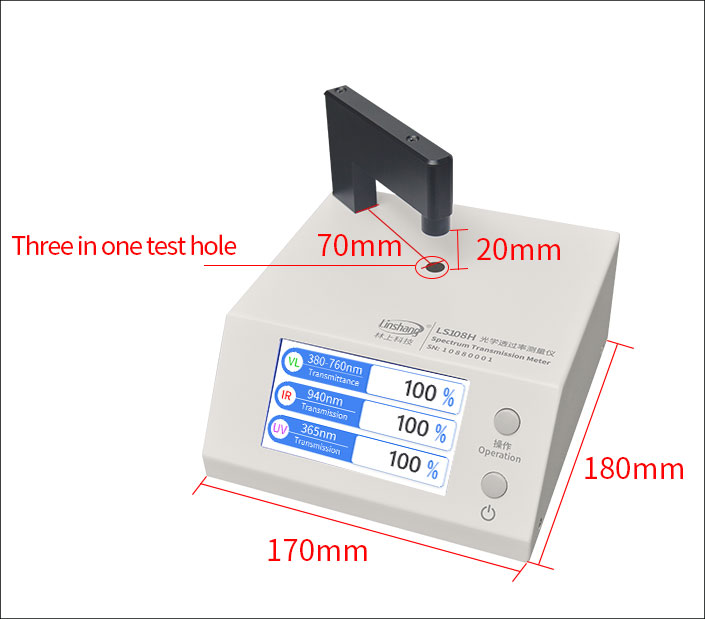

Three-in-one light source path
Three light sources share a test hole, which can obtain 380nm-760nm visible light transmittance, 940nm infrared and 365nm ultraviolet transmittance in one measurement, easy to operate and save time
Parallel beam light design
Parallel light design enables stable and accurate results on testing large thickness materials
Small aperture
The test aperture is 1mm, applicable to test transmittance of small-sized materials

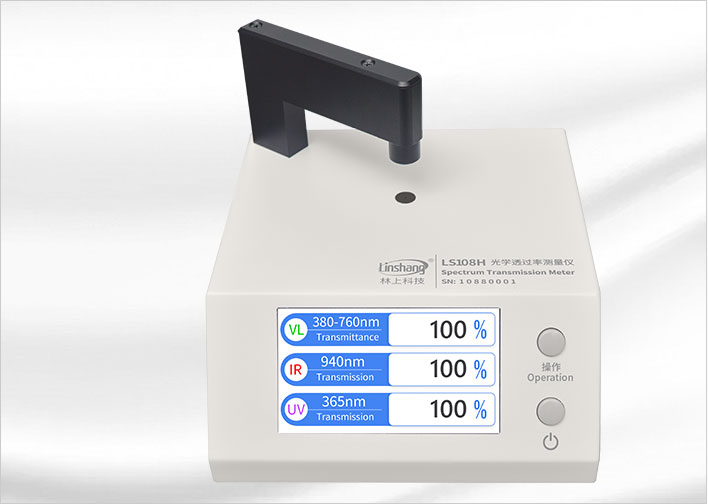

Real-time dynamic self-calibration
The light transmission meter has a real-time dynamic self-calibration function, which automatically calibrates to 100% transmittance after startup
LCD screen, fashionable and easy for reading
Large LCD screen display, exquisite and stylish appearance, can be used in exhibitions and so on

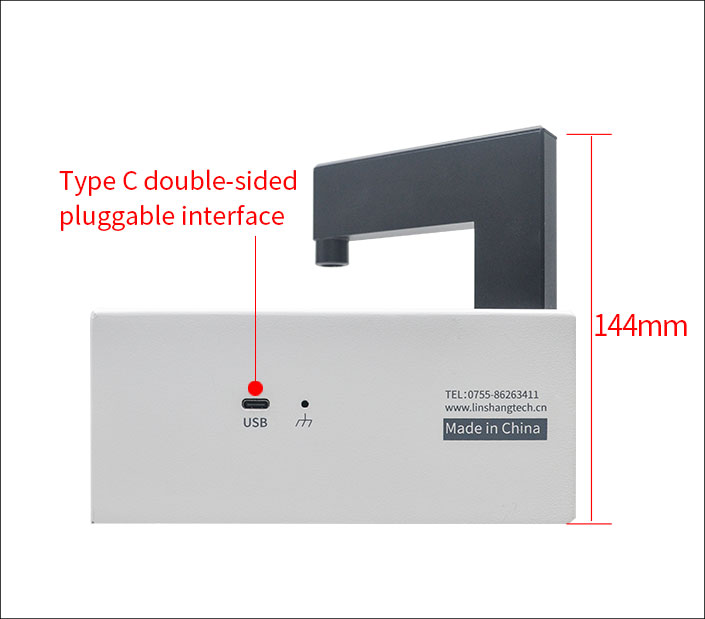

5V power supply
5V mobile power, easy to connect

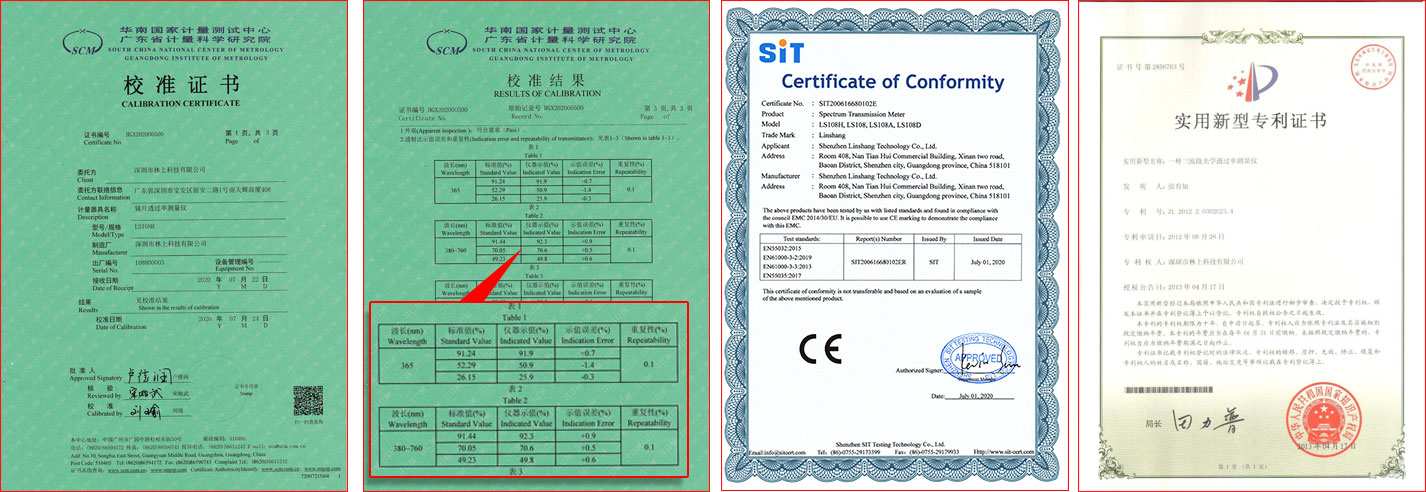

Qualifications and Standards
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS108H Spectrum Transmission Meter | 1 | pcs |
| 2 | DC5V Adapter | 1 | pcs |
| 3 | User Manual | 1 | pcs |
| 4 | Certificate / warranty card | 1 | pcs |
| 5 | Packing box dimension 231*241*161cm（L*W*H） | 1 | pcs |
