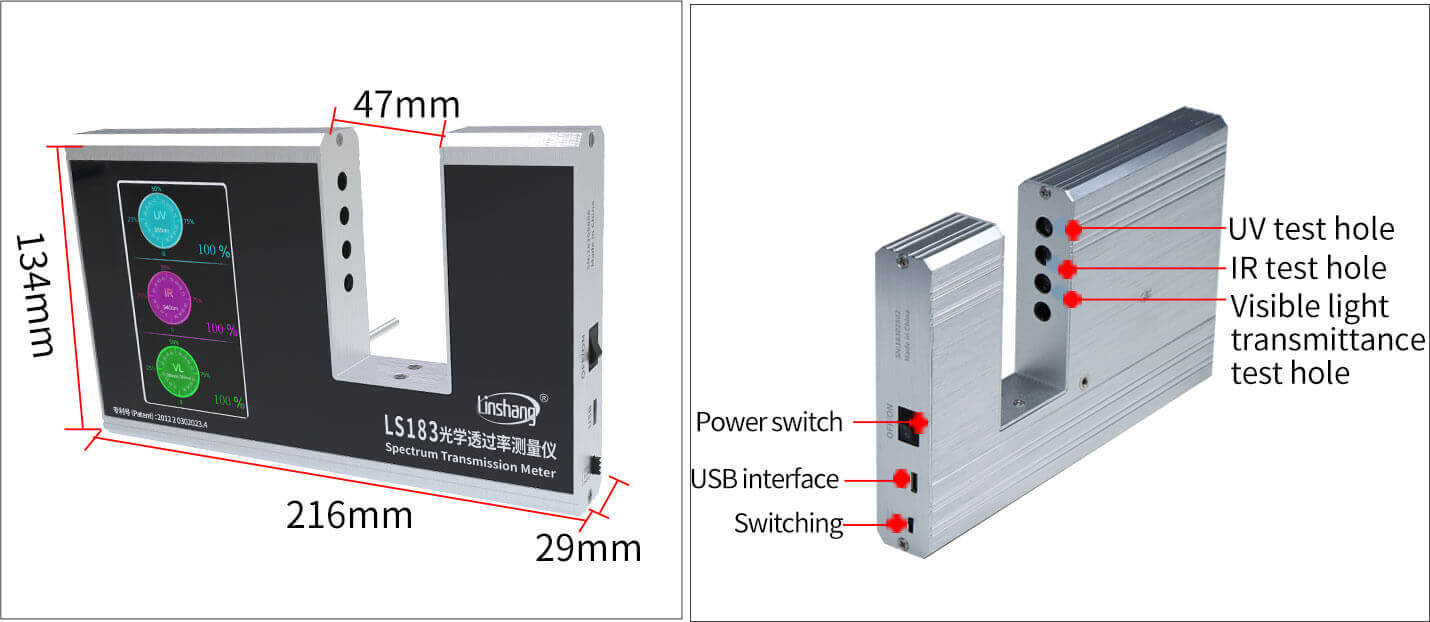

UV, IR and visible light transmission rates can be measured simultaneous Test slot is 47mm wide, which can test large thickness of materials Large LCD display with three different display interfaces
LS183 spectrum transmission meter employing the parallel light path source. is mainly used for the optical performance test of thermal insulation coatings, single-layer glass, laminated glass (insulating glass), glass with film, PMMA, PC and other materials. It can simultaneously test the transmittance of ultraviolet, infrared and visible light. The width of the test slot is 47mm. The meter uses ultraviolet light source, infrared light source and visible light source to illuminate the tested transparent material. The sensor determines the transmittance by detecting the original light intensity emitted by the three light sources and the transmitted light intensity after the light has passed through the transparent material. The final result is expressed as a percentage.

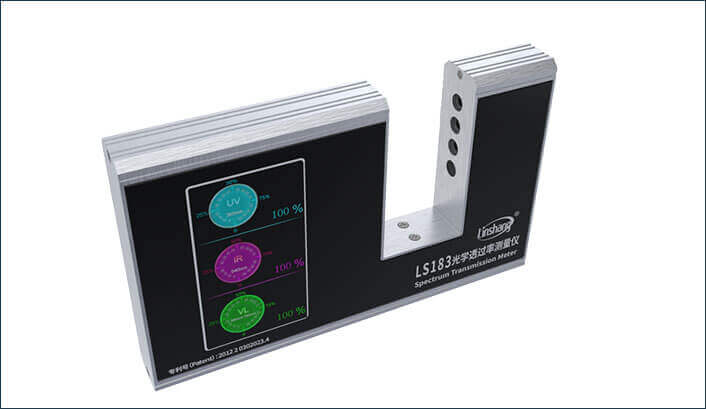

LS183 UV transmission meter appearance
Features
Measure UV, IR and visible light simultaneous
LS183 optical transmittance tester can measure ultraviolet, infrared and visible light simultaneous. Having it is equal to having UV transmittance meter, IR transmittance meter and light transmittance meter at the same time
Easy to operate, Quick to measure
The UV transmission meter has simple operation and fast measurement. We just need to put the measured sample into the test slot and the three test results will be displayed on the interface immediately at the same time
Parallel optical path design ideal for measuring large thick materials
The instrument use parallel light path source which can test materials with large thickness

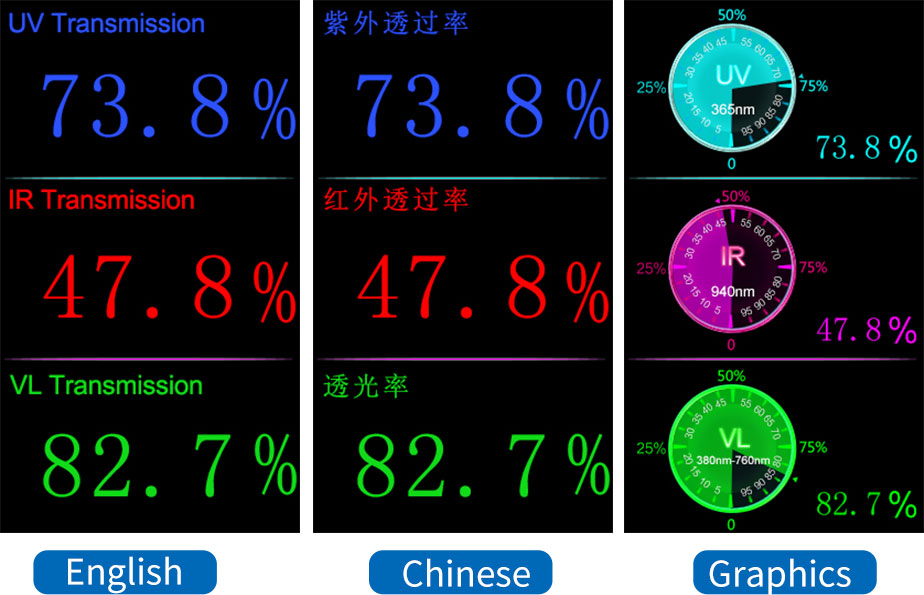

Three display interfaces switchable
The spectrum transmission meter has large LCD display, three different display interfaces can be switched
Real-time dynamic self-calibration
The instrument has real-time dynamic self-calibration function, which automatically calibrates to 100% transmittance after powering on
Before testing

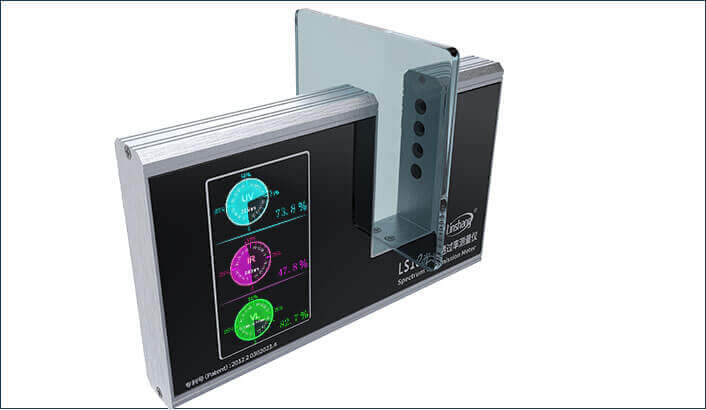

Under testing

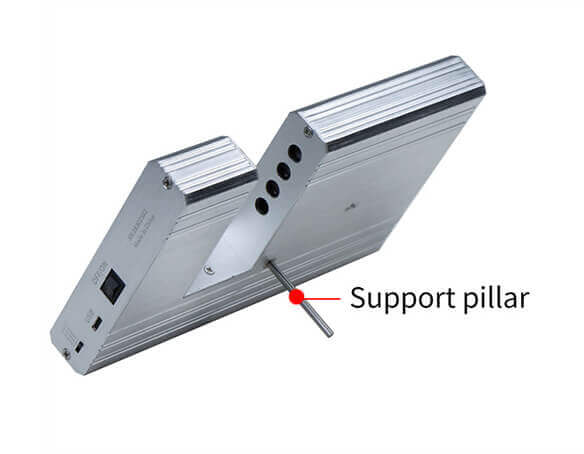

Provide free support pillar for relaxing reading
Supporting pillar in the packing makes it more convenient on the data reading
Qualifications and Standards
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS183 Spectrum Transmission Meter | 1 | pcs |
| 2 | DC5V Adapter | 1 | pcs |
| 3 | User Manual | 1 | pcs |
| 4 | Certificate / Warranty Card | 1 | pcs |
| 5 | Support Pillar | 1 | pcs |
| 6 | Packing Box Dimension 34*29*9 cm（L*W*H） | 1 | pcs |

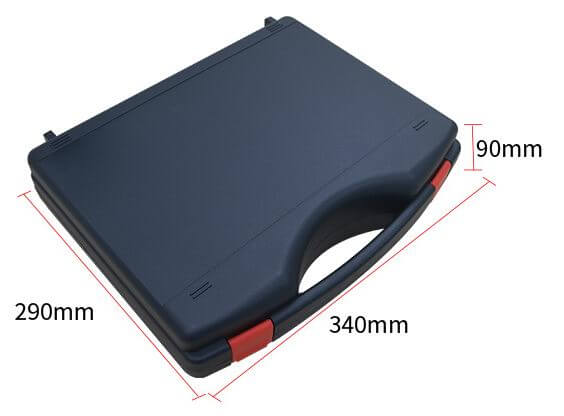

LS183 spectrum transmission meter package
