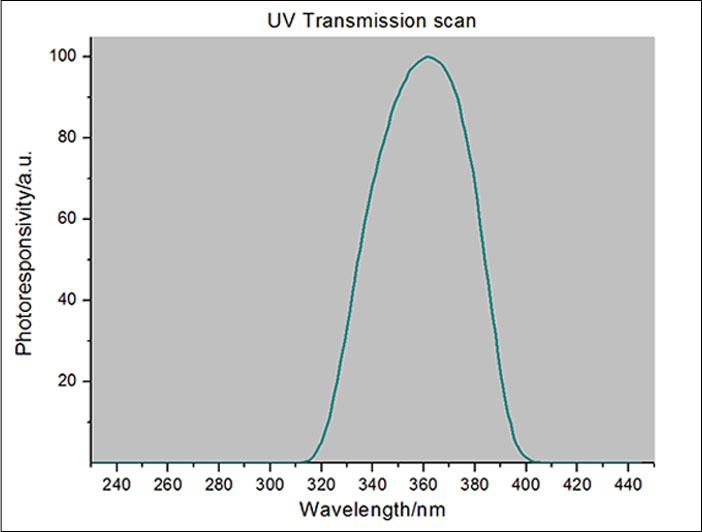

For high pressure mercury lamp and halogen lamps Spectral response range: 315nm-400nm, λp = 365nm Record UV intensity, energy, temperature, test duration together Support PC software

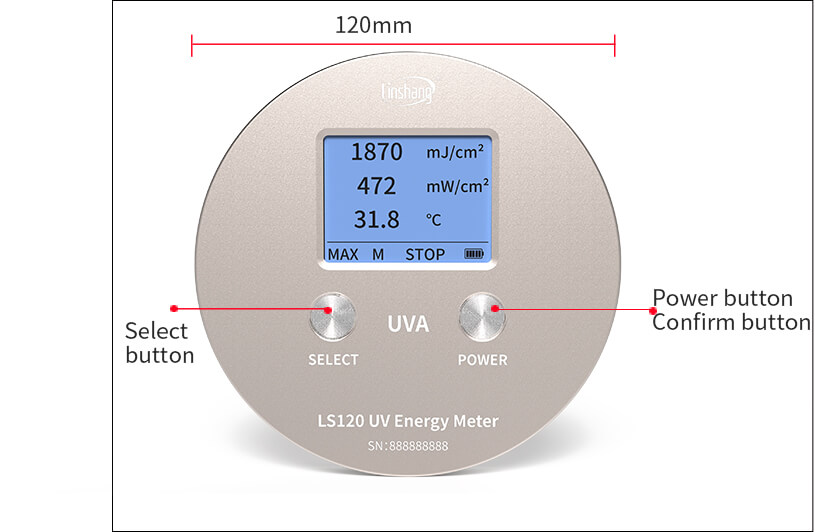

LS120 UV energy meter can not one measure energy, power, temperature and measuring time at the same time but also display the energy and power curves, export data and print test report. It has created many firsts in the UV energy meter industry:
The first UV energy meter that can display the temperature curve
The first UV energy meter can measure real-time temperature and power
The first UV energy meter with a built-in timer that accurately records the curing time
The first UV energy meter that can print a test report via a USB connection to a computer
LS120 UV energy meter is widely used in UV exposure, UV adhesive curing, UV ink curing, UV digital printing, optical communication, UV 3D printing and other fields. It is suitable for energy measurement of high pressure mercury lamps, halogen lamps, gallium lamps, iron lamps, xenon lamps and other light sources.

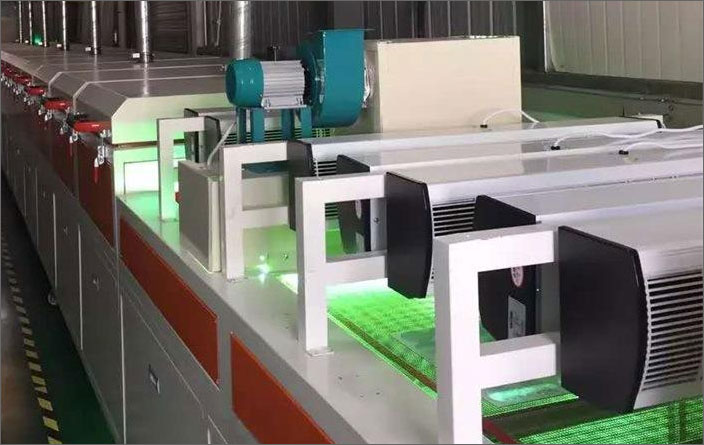

UV printing

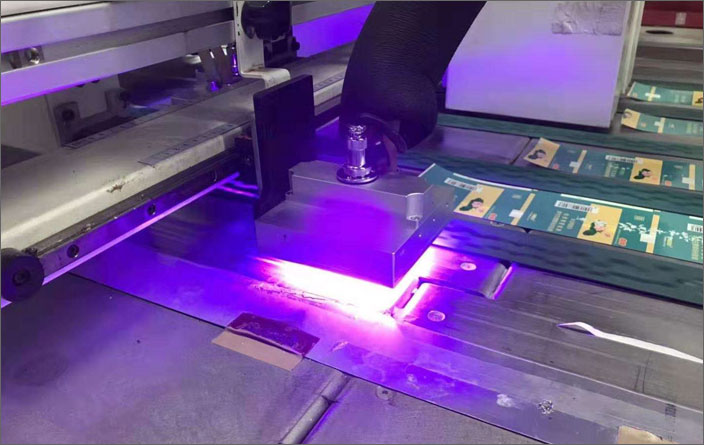

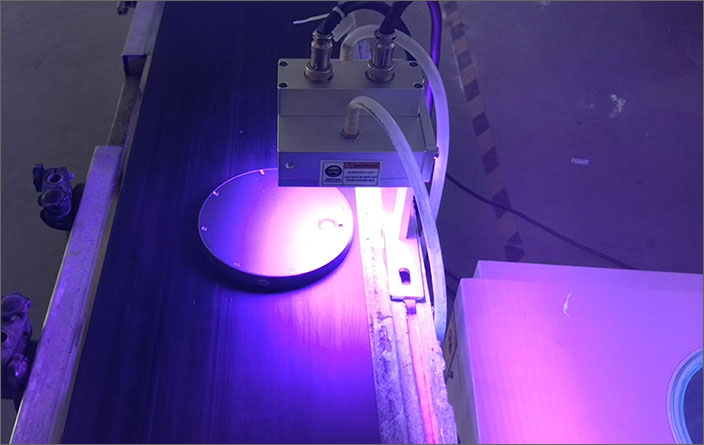

UV curing
UV 3D printing

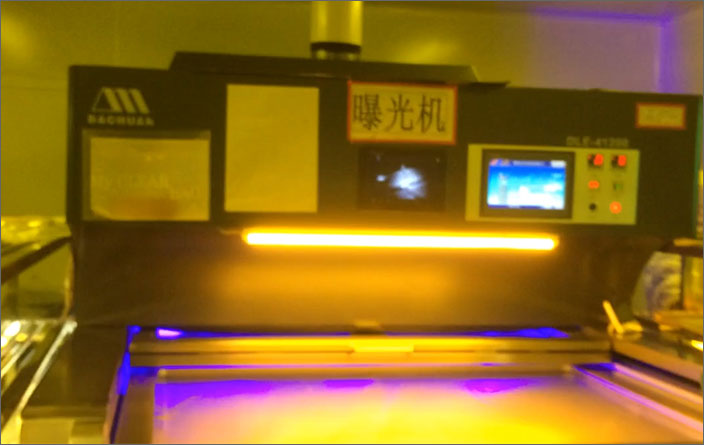

UV exposure
Features
Two measurement modes available
There are two measurement modes. One is Manual mode which needs to start up or end of measurement manually. Another is automatic modes that can automatic switch-on or end of measurement when the energy intensity emitted by the light source is above or below the trigger threshold that can be set

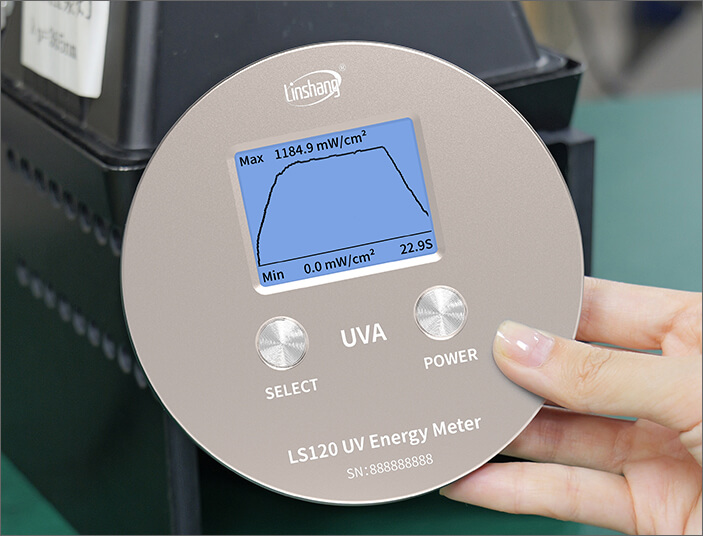

Auto Measurement Mode
The auto measurement mode accurately records curing time and displays the corresponding light intensity curve.

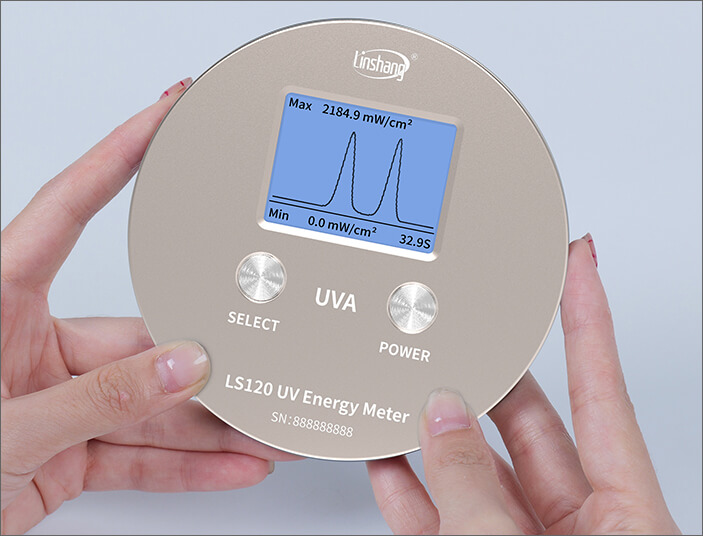

Manual Measurement Mode
When multiple light sources are used, the overall distribution of the UV light source can be analyzed through the power curve.
Four interfaces help you record the data of UV light source

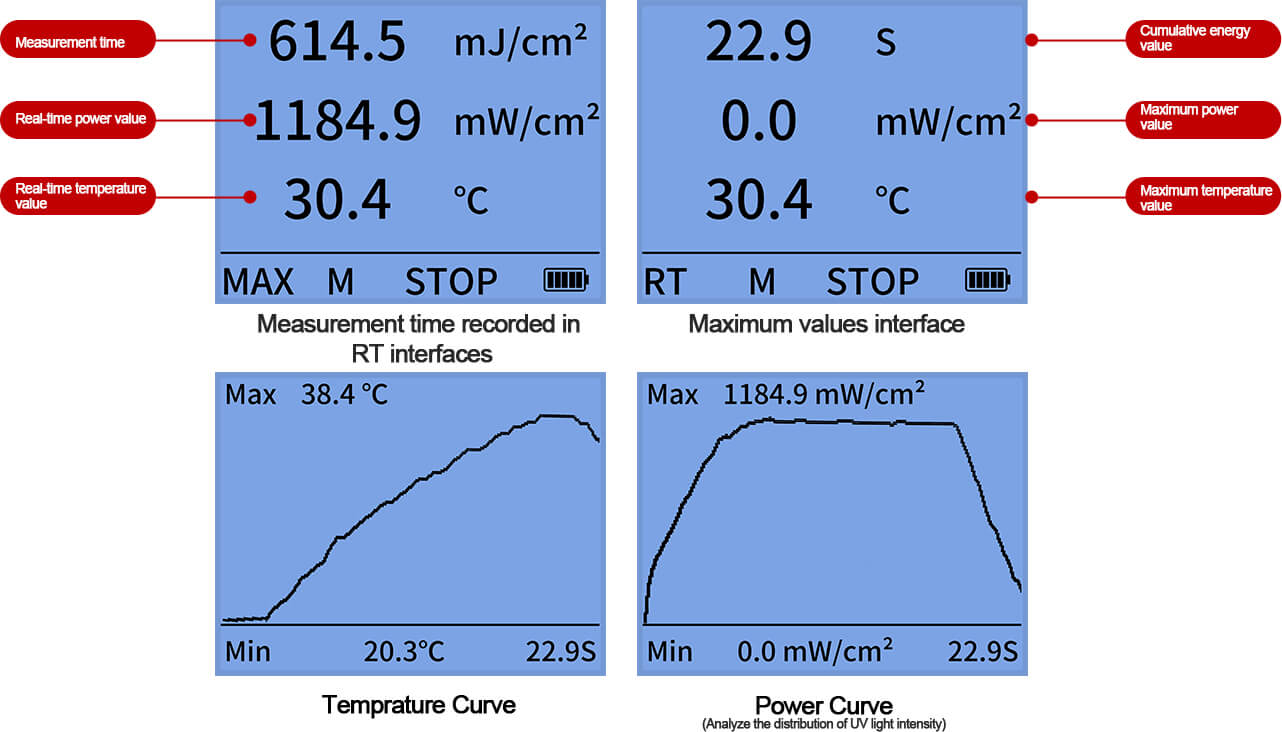

There are four interfaces to help you know better about UV light source you tested: In maximum values interface, you can acquire cumulative energy value, maxiumum power value and maximum temperature value. Measurement time can be recorded in RT interface. In temperature and power curve interface, you can know the temperature change and energy intensity variation of the light source. Four interfaces can be switched freely
Practical PC software

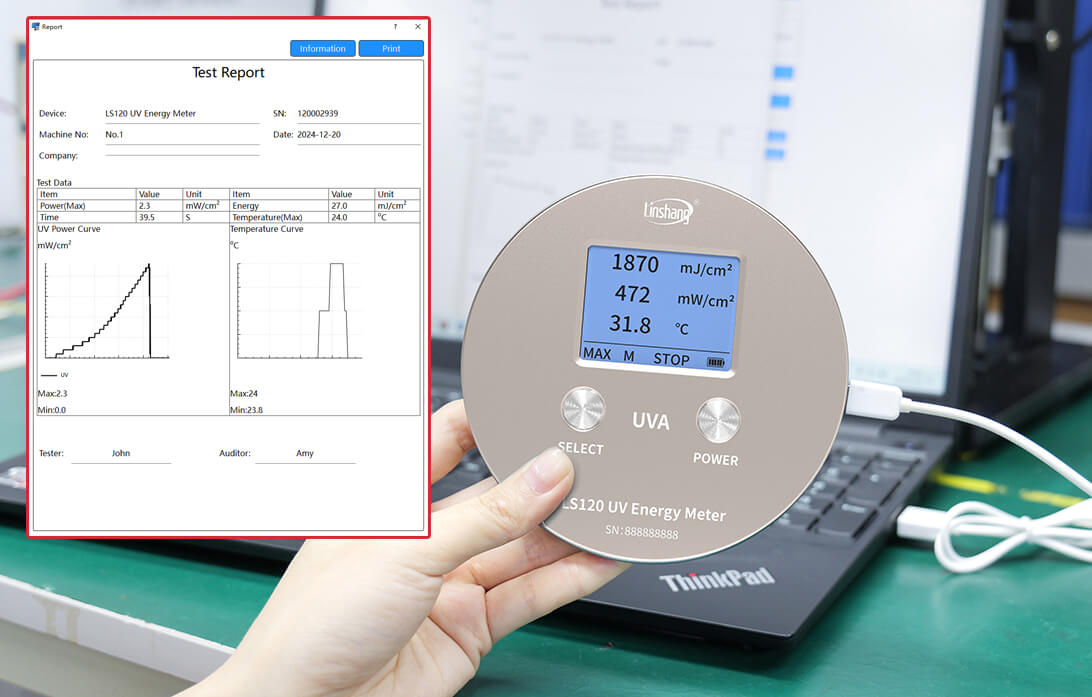

The LS120 UV Energy Meter can be connected to PC software, which allows you to generate reports and print out test results, as well as to export test data
Temperature measurement possible

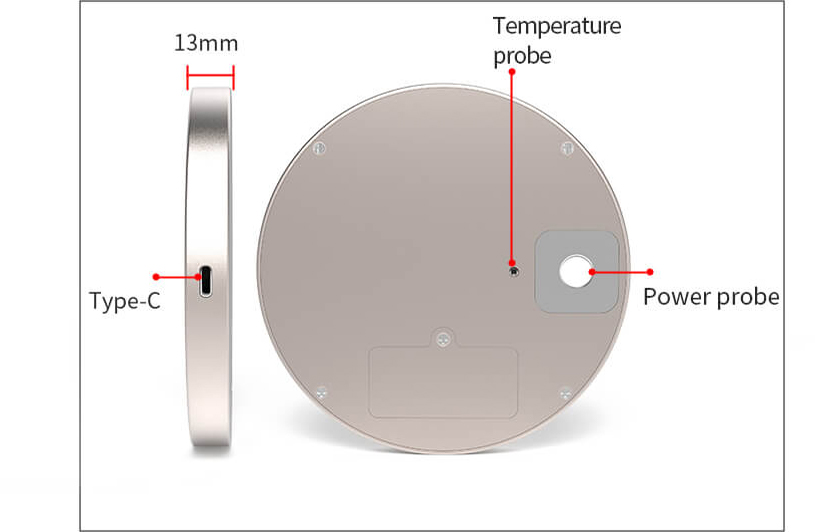

High-accuracy and fast-response temperature detector, truly dynamic measurement of the actual temperature in the curing machine
High temperature resistant
Built-in heat shield, high temperature resistant design. The UV energy meter can run in the environment of 100 degrees Celsius for a long time. For details on the high-temperature resistance experiments of the Linshang UV energy meter, you can click the article below to check: Use Time of Linshang UV Energy Meter at Different High Temperature
More detail information
±10% high accuracy makes practical meter
Accurately record the curing time
2048 times/sec high-speed data acquisition
The stored data will not lost when the power is turned off
Qualifications and Standards
LS120 UV energy meter conforms to the following standard:
JJG 879-2015 Verification Regulation of Ultraviolet Radiometers
Connect the computer via USB and use the software for the UV Energy Meter. (The software is one compatible with Windows)
To install the software:
Download the software, unzip the file, and run it directly.
Click here to download
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS120 UV Energy Meter | 1 | pcs |
| 2 | USB Cable | 1 | pcs |
| 3 | Antistatic Gloves | 1 | pcs |
| 4 | Cross Head Screw-driver | 1 | pcs |
| 5 | User Manual | 1 | pcs |
| 6 | Certificate/Warranty Card | 1 | pcs |
| 7 | Plastic Box Dimension 25*21*7cm (L*W*H) | 1 | pcs |
| 8 | Calibration Report | 1 | pcs |

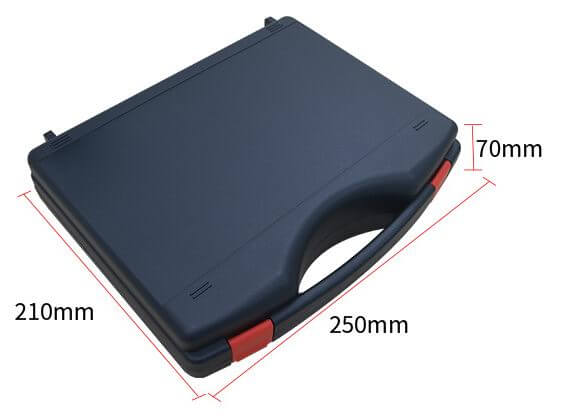

LS120 UV integrator package
