Support 12 different probes for UVA, UVB, UVC, etc. Record UV power, UV energy and test duration together Automatic statistics of maximum, minimum and average power
LS125 is a smart host that can support 12 different probes. It can intelligently identify different probes. This host is connected to the probe through an aviation plug. The main function of the host is to display test data. The host equipped with the probe can be used for ultraviolet intensity and energy detection. To use the host, you need to buy the corresponding probe to use with it as per your test requirements.
LS125 UV light meter host display
Application
Ultraviolet light includes UVA band (315nm-420nm), UVB band (280nm-315nm) and UVC band (230nm-280nm). UVA band is mainly used in photocuring, lithographic exposure, ultraviolet light source, integrated circuit lithography and other industries; UVB band UV lamps mainly include physiotherapy lamps in hospitals and health care places, plant growth lamps and UVB fluorescent lamps for reptiles; UVC band also known as short-wave sterilization ultraviolet, ultraviolet germicidal lamps emit UVC short-wave ultraviolet. Ultraviolet germicidal lamps are mainly used for disinfection and sterilization. They are often used in hospitals, transfer windows of drug factories, disease control centers and sewage treatment plants. The LS125 handheld UV measurement device is widely used. Many of the above industries require different ultraviolet probes to detect the radiation intensity or energy value.
Probe Selection
According to the spectral response range, application, measuring range and test aperture size of the light source, we have introduced 9 different types of probes (probe must be purchased separately). The selection table is as follows:
Select according to the spectral response range and application of the light source
| No. | Probetype | Spectral response range | Power range | Test aperture | Application | Link |
|---|---|---|---|---|---|---|
| 1 | UVC-X0 | 230-280nm | 0 - 200000 μW/cm² | Φ10mm | 254nm UV sterilization mercury lamp | More details |
| 2 | UVC-X2 | 210nm-250nm | 0 - 200000μW/cm² | Φ10mm | 222nm far UVC lamps | More details |
| 3 | UVCWP-X1 | 230-280nm | 0 - 200000 μW/cm² | Φ10mm | 254nm UV sterilization mercury lamp,waterproof | More details |
| 4 | UVCLED-X0 | 230-315nm | 0 - 200000 μW/cm² | Φ10mm | 260nm-285nm UV LED germicidal lamp | More details |
| 5 | UVB-X0 | 280-315nm | 0 - 200000 μW/cm² | Φ10mm | General UVB intensity and energy measurement | More details |
| 6 | UVA-X0 | 315-400nm | 0 - 2000 mW/cm² | Φ10mm | High pressure mercury lamp in UV curing industry | More details |
| 7 | UVA-X1 | 315-400nm | 0 - 200000 μW/cm² | Φ10mm | General UVA intensity and energy measurement | More details |
| 8 | UVA-X2 | 315nm-365nm | 0 - 200000μW/cm² | Φ10mm | 340nm UVA aging lamps | More details |
| 9 | UVALED-X0 | 340-420nm | 0 - 200000 mW/cm² | Φ10mm | Area light source of UV LED in UV curing industry | More details |
| 10 | UVALED-X1 | 340-420nm | 0 - 200000 mW/cm² | Φ1mm | Point light source of UV LED in UV curing industry | More details |
| 11 | UVALED-X3 | 340-420nm | 0 - 200000 μW/cm² | Φ10mm | General UVA+UVV LED, low power measuring range | More details |
| 12 | BL-X0 | 410nm-490nm | 0 - 2000mW/cm² | Φ10mm | 450nm blue light | More details |
Suggestion of Probes for Classic Industry Application
| No. | Application | Suggested Probe |
|---|---|---|
| 1 | Detect UV Aging Box | UVA-X1, UVB-X0, UVA-X2 |
| 2 | Detect Ambient Light and Sunlight | UVA-X1, UVB-X0 |
| 3 | Detect Welding Arc | UVA-X1, UVB-X0, UVC-X0 |
| 4 | Detect UV Light of Non-destructive Testing | UVA-X0 |
| 5 | Detect UV Nail Lamp | UVALED-X3 |
| 6 | Detect Plant Growth Lamp or Reptile Lamp | UVB-X0 |
| 7 | Detecting the 222nm Far UVC Lamps | UVC-X2 |
| 8 | Detecting the Medical Phototherapy Devices or LED Blue Therapy Light | BL-X0 |
Feature
Free to match 12 types of probes
LS125 host and probe are linked by aviation plugs. One host can intelligently match 12 different UV probes to meet different test needs
Using mature digital probe technology
nine probes that equipped with the host all use digital probe technology and is not easily interfered during the test
Intelligent identification of the probe model
The host can intelligently identify the model of the probe after being connected with and adapts the display interface according to the type of the probe
Practical data statistics function
The LS125 host can intelligently count maximum power value, minimum power value, average power value, real-time power value and accumulated energy value of the light source, and accurately record the test time. (You can also choose not to display the energy value in the setting mode)
Provide different unit selections based on the identified probe model
9 sets of measurement data can be saved
Powered by four AAA batteries and the host will automatically shut down after 10 minutes without any operation, avoiding waste
Qualifications and Standards
Patent certificate and calibration report of multi-probe UV light meter
Packing
| No. | Item | Quantity | Unit |
|---|---|---|---|
| 1 | LS125 UV Light Meter | 1 | Pcs |
| 2 | Probe | According to thenumbers of probe ordered | Pcs |
| 3 | User Manual | 1 | Pcs |
| 4 | Calibration Report | 1 | Pcs |
| 5 | Certificate/Warranty Card | 1 | Pcs |
| 6 | Plastic Box | 1 | Pcs |

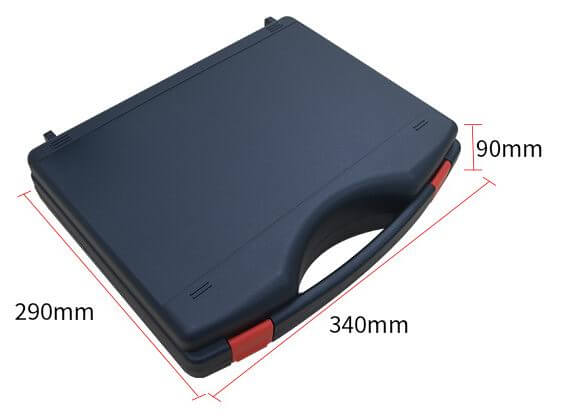

LS125 UV light meter package
