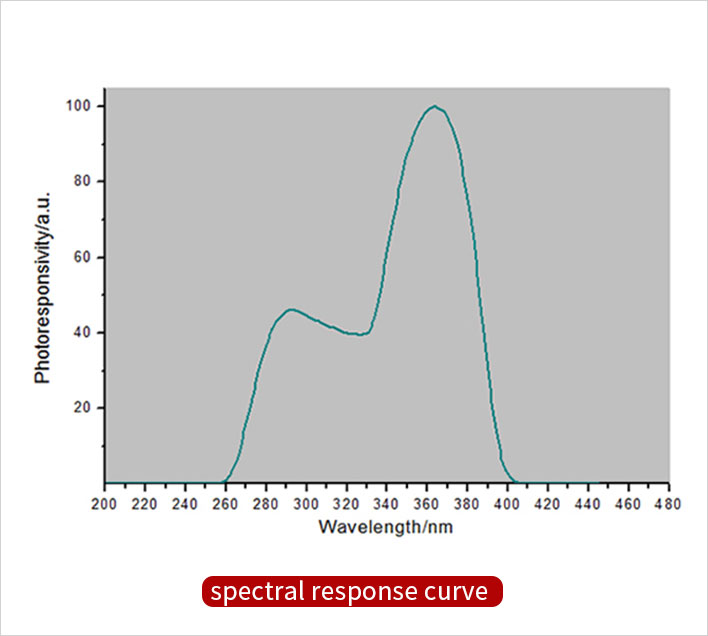

Spectral response range: 315nm-400nm, λp=365nm Power measuring range: 0-200000 μW/cm² It can be used for the detection of sunlight and welding arc light

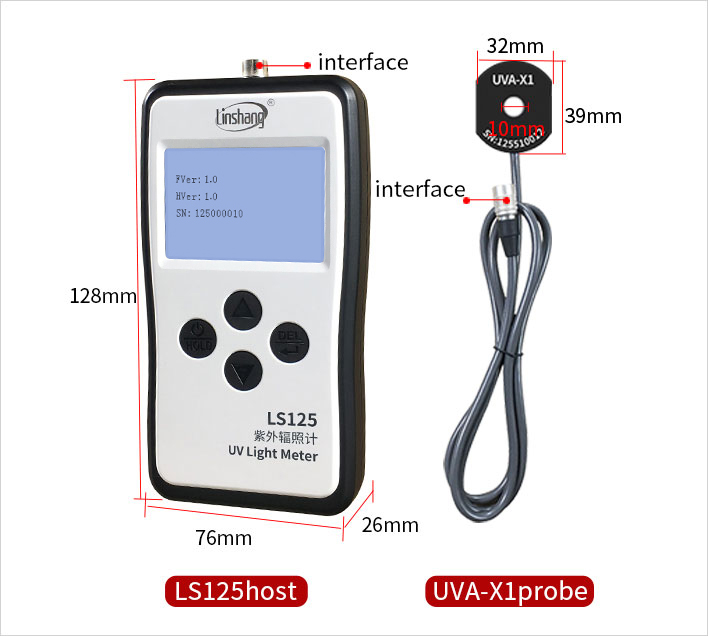

The LS125 UV light meter is a smart host that can support 12 different types of probes. Its main function is data display. The UVA-X1 probe is one of the 12 probes equipped with the LS125 host. The probe's spectral response range is 315nm-400nm, calibrated at 365nm.
If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.
Application
Testing UV rays from sunlight
Detection of welding arc light

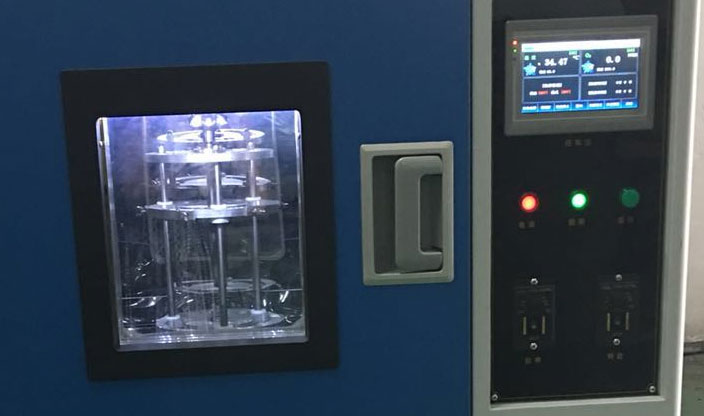

UV aging
Features
Versatile and applicable widely
It is suitable for ultraviolet detection of light sources such as sunlight, aging test and welding arc light. It can measure energy value and power value at the same time

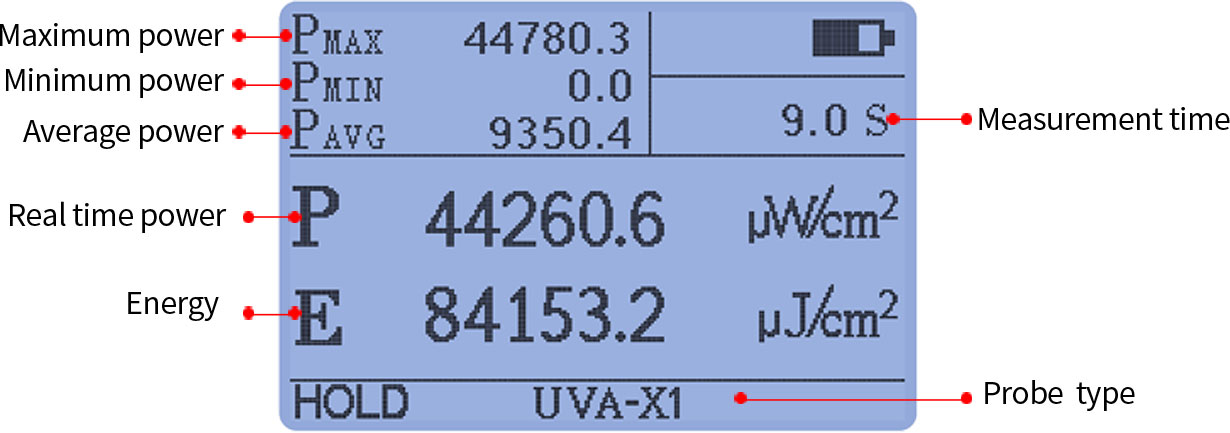

Practical statistics function
The LS125 UV radiometer + UVA-X1 probe has rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time and energy value are displayed at the same time
Mature digital probe technology
Adopting mature digital probe technology, all data collection and processing are completed inside the probe. Data transmission through digital signals with stronger anti-interference ability can ensure more stable test data

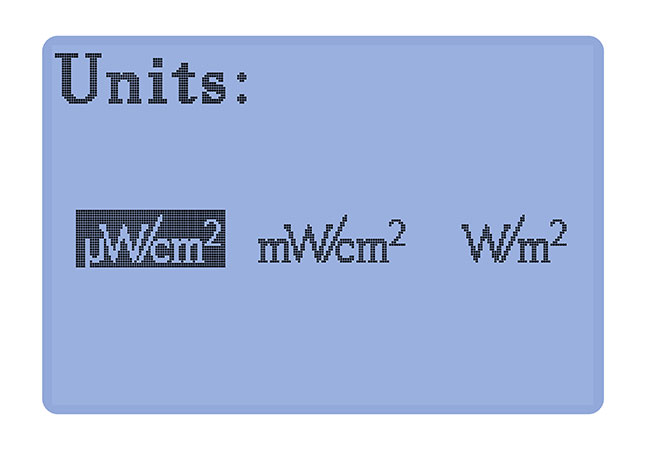

Units switchable freely
Three measurement units can be switched, namely μW/cm², mW/cm², W/m². Data conversion between different units does not require manual calculate
Qualifications and Standards
The UV light meter LS125 host + UVA-X1 probe conform to the following standard:
JJG 879-2015 Verification Regulation of Ultraviolet Radiometers
Certificates for LS125 UV radiometer host +UVA-X1 probe
