Spectral response: 340nm-420nm, calibrated at 395nm LED Power measuring range: 0-200,000mW/cm²
LS125 digital UV light meter is a smart host that can support 12 different types of probes. The main function of the host is data display. The UVALED-X0 probe is one of 12 probes equipped with the LS125 host. The spectral response range of the probe is 340nm-420nm and it is calibrated at 395nm, which is suitable for the intensity and energy detection of UVA LED light sources.
If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.
Application
Compared with mercury lamps, UVA LED light sources have the characteristics of long service life, no heat radiation, high energy, uniform irradiation. It is safer and more environmentally friendly. This kind of light source has been widely used in UV ink curing, UV adhesive curing, PCB exposure, optical communications and many other industries. For places that adopt UVA LED light source, they need to use LS125 UV light meter equipped with the UVALED-X0 probe to detect the radiation intensity and energy of its light source.

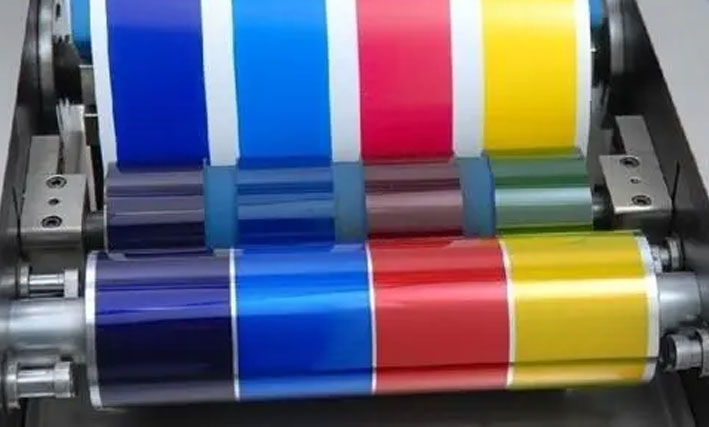

UV ink curing

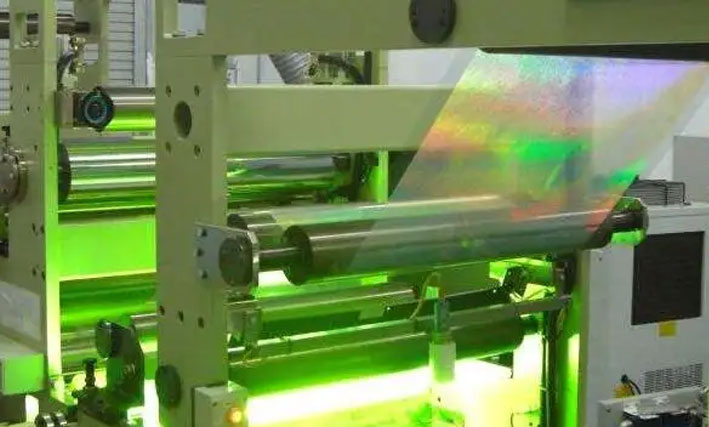

UV adhesive curing
PCB Exposure
Features
Wide spectral response
The probe is suitable for detecting the intensity and energy of UV LED light sources in various bands such as 365nm / 375nm / 385nm / 395nm / 405nm

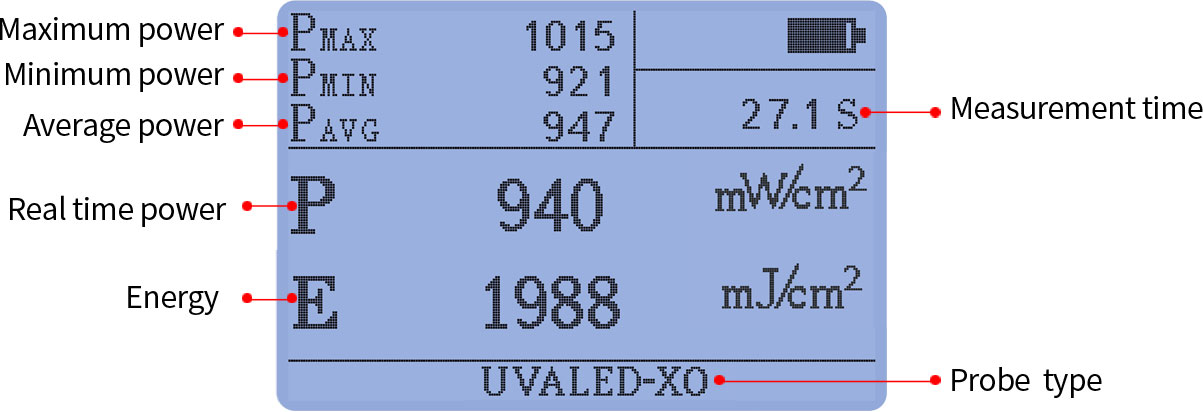

Record energy value and power value together
The UV radiometer can measure energy value and power value at the same time. It also has a wealth of statistical functions, intelligent statistics of real-time power value, maximum value, minimum value, average value, measurement time, energy value
Acquire data at an good speed
High-speed acquisition, which can collect 2048 data per second, makes the measurement results more accurate

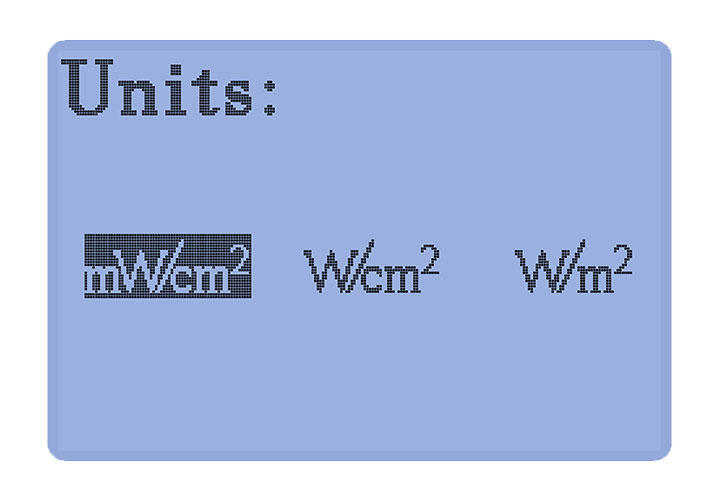

Three units can be changed freely
Three measurement units can be switched, namely mW/cm², W/cm², W/m². Data conversion between different units does not require manual calculation
Mature digital probe technology
Adopting mature digital probe technology, all data collection and processing are completed inside the probe. Data transmission through digital signals with stronger anti-interference ability can ensure more stable test data
Qualification
Patent Certificate for LS125 UV radiometer
