Small aperture with a light hole diameter of 1mm Record energy and intensity value at the same time Spectral response: 340nm-420nm, calibrated with 395nm LED Power measuring range: 0-200,000mW/cm²
The LS125 UV light meter is a smart host that can support 12 different types of probes. Its main function is data display. The UVALED-X1 probe is one of the 12 probes equipped with the LS125 host. The probe's spectral response range is 340nm-420nm, calibrated at 395nm. The light hole diameter is 1mm, which is suitable for the intensity and energy detection of LED point light sources.
If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.
Features
1mm aperture, designed for point light sources
1mm ultra-small test aperture, suitable for 340nm-420nm LED point light source intensity and energy test

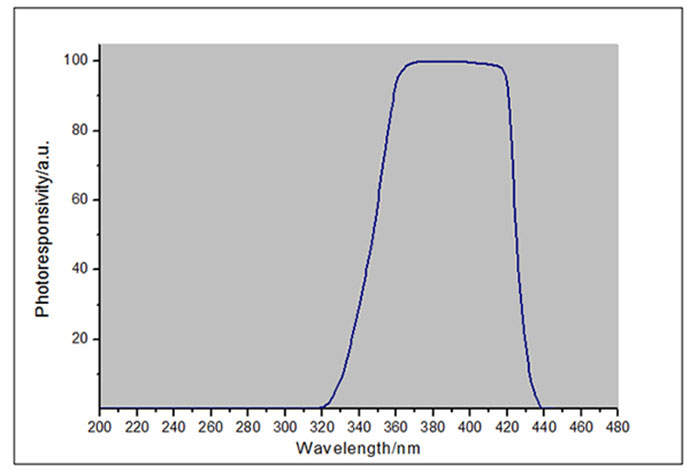

Wide spectral response
The probe features wide spectral response, and it is suitable for 365nm / 375nm / 385nm / 395nm / 405nm LED point light source intensity and energy measurement in various wavelength bands

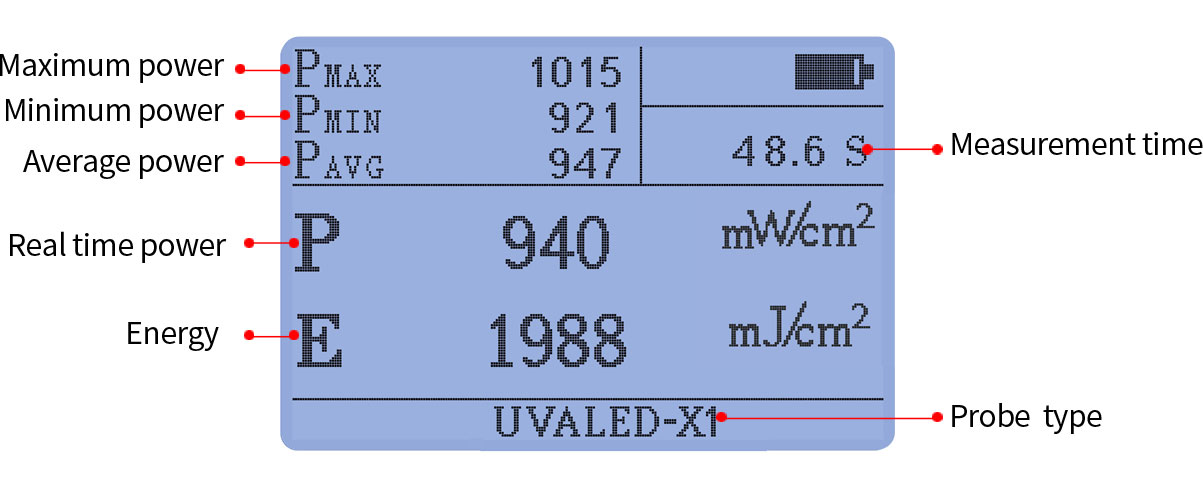

UV LED light source power and energy are measured simultaneously
The UV radiometer can measure energy value and power value at the same time. It also has a wealth of statistical functions, intelligent statistics of real-time power value, maximum value, minimum value, average value, measurement time, energy value
2048 times/sec high-speed acquisition
High-speed acquisition, which can collect 2048 data per second, makes the measurement results more accurate

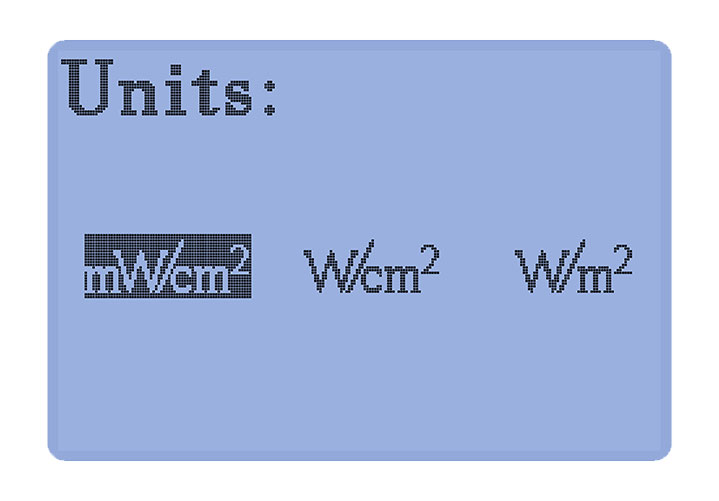

Three units are available
Three measurement units can be switched, namely mW/cm², W/cm², W/m². Data conversion between different units does not require manual calculation
Mature digital probe technology
Using mature digital probe technology, all data acquisition and processing is done inside the probe, and transmission through a more interference-resistant digital signal ensures more stable test data
Qualification
Patent Certificate for LS125 UV radiometer
