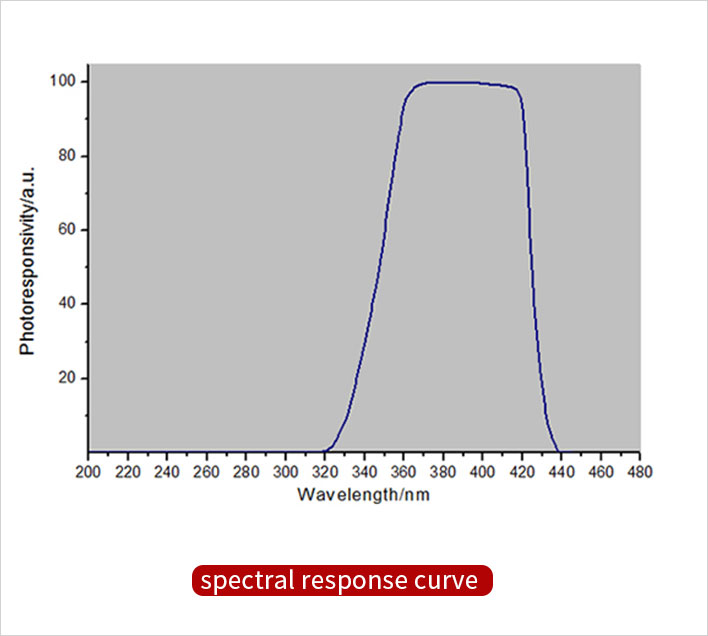

Spectral response: 340nm-420nm, calibrated with 395nm LED Power measuring range: 0-200000μW/cm² With statistics function, multiple test data are displayed at the same time

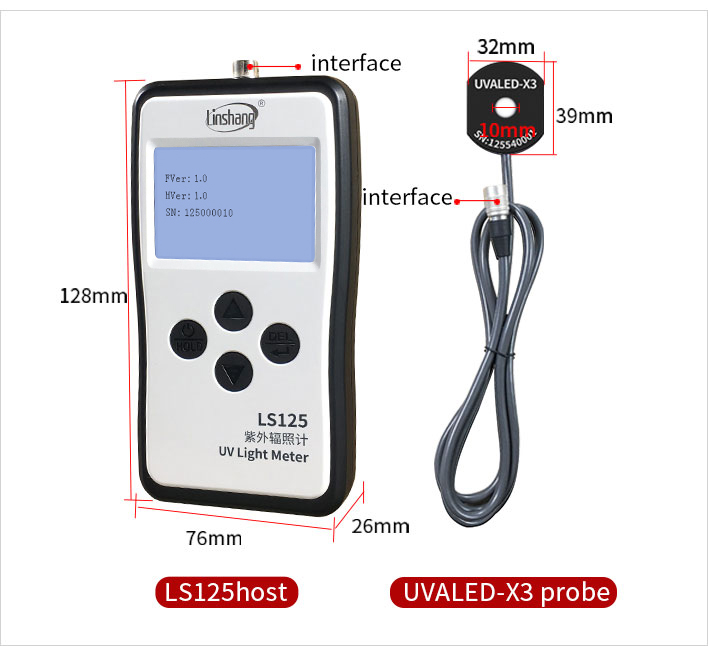

The LS125 UV light meter is a smart host that can support 12 different types of probes. Its main function is data display. The UVALED-X3 probe is one of the 12 probes equipped with the LS125 host. The probe's spectral response range is 340nm-420nm, calibrated at 395nm. The UV light meter is suitable for detecting the intensity and energy of UVA or UVV light sources, as well as the intensity and energy of low power UVA LED light sources.
If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.
Features
Dedicated to low-power UV curing light source detection
The intensity of ultraviolet radiation can be measured to the micron level, which is suitable for the intensity and energy detection of low-power UVA light sources

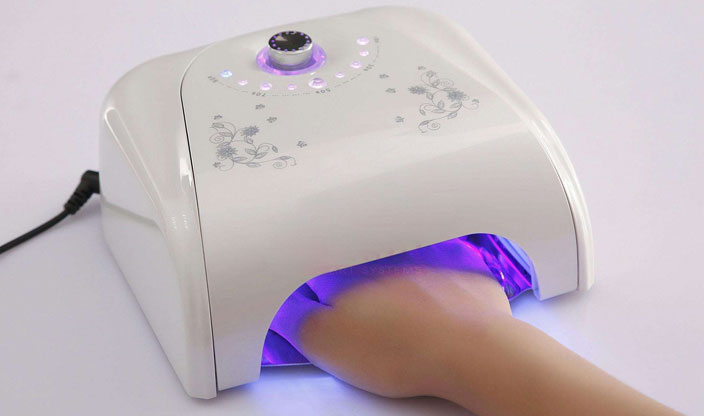

Nail Art Light

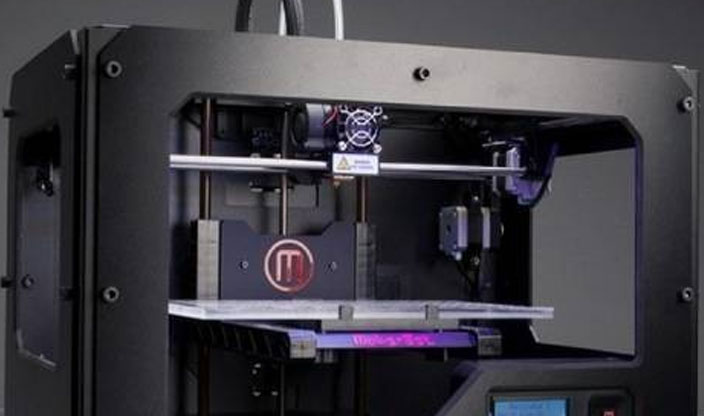

3D printer

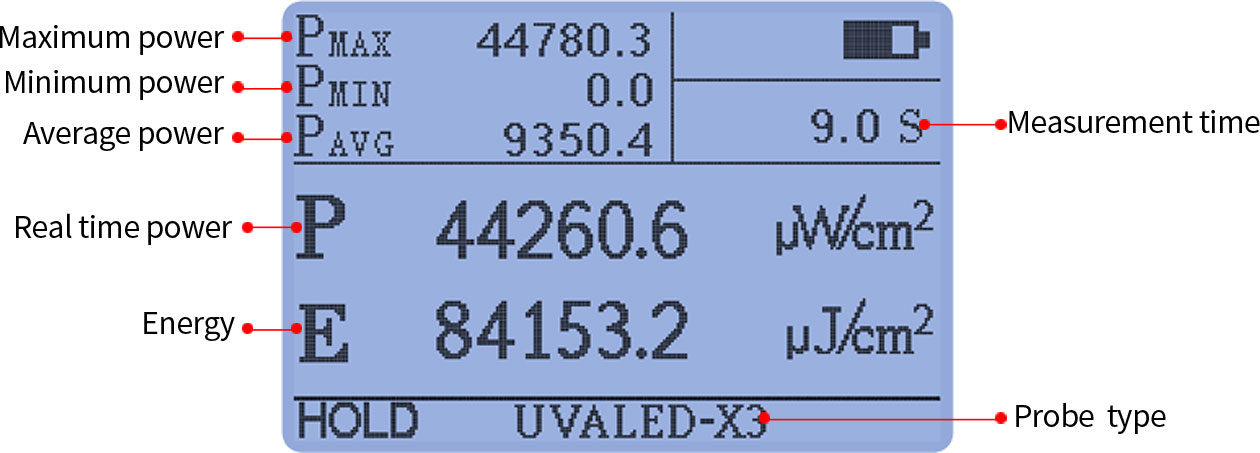

Practical statistics function
The LS125 UV radiometer + UVALED-X3 probe has statistics function, real-time power value, maximum value, minimum value, average value, measurement time and energy value are displayed at the same time
Mature digital probe technology
Adopting mature digital probe technology, all data collection and processing are completed inside the probe. Data transmission through digital signals with stronger anti-interference ability can ensure more stable test data
Provide three units to be chosen
Three measurement units can be switched, namely mW/cm², W/cm², W/m². Data conversion between different units does not require manual calculation
Qualification
Patent Certificate for LS125 UV radiometer
