Spectral response range: 230nm-280nm, λp = 254nm Power measuring range: 0 - 200000 μW / cm²

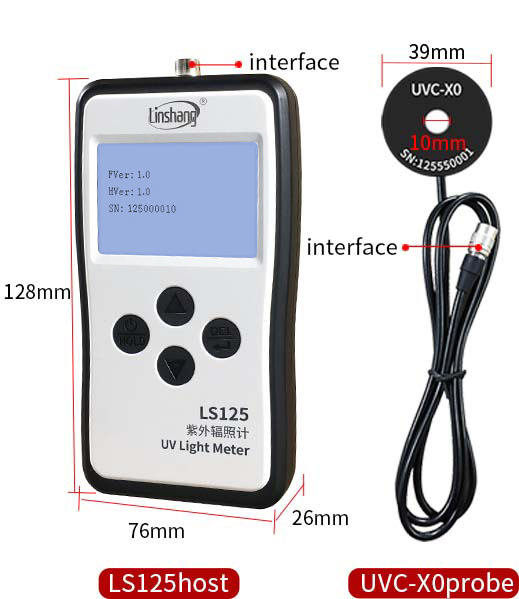

The LS125 UV light meter is a smart host that can support 12 different types of probes. Its main function is data display. The UVC-X0 probe is one of 12 probes which is equipped with the LS125 UV radiometer host. The response wavelength of the probe is 230nm-280nm. It is a digital probe that professionally detects the intensity and energy of 254nm high-power UVC germicidal lamps.
If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.
Features
Specialized used in UVC low pressure mercury lamp inspection
Spectral response range of the probe is 230nm-280nm with its peak wavelength calibrated at 254nm
Maximum measurement power can reach to 200000 μW/cm²
The probe can measure high-power UVC germicidal lamps and the maximum power can reach 200,000 μW/cm² and the instrument can simultaneously display the energy value and power value
Mature digital probe technology
Adopting mature digital probe technology, all data collection and processing are completed inside the probe. Data transmission through digital signals with stronger anti-interference ability can ensure more stable test data
Statistical functions

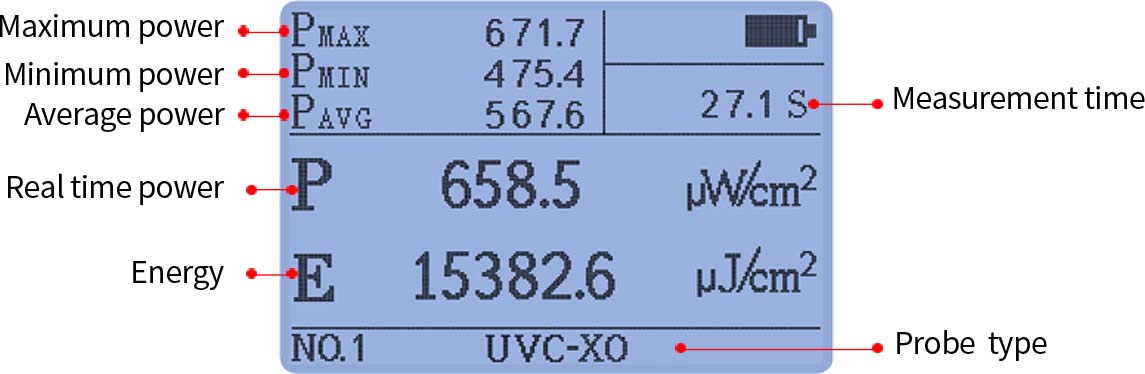

UVC-X0 probe has rich statistical functions, The probe can intelligently statistics the real-time value, maximum value, minimum value and average value of the power, record the measurement time.All these values can be displayed in the screen at the same time
Measurement Units are switchable

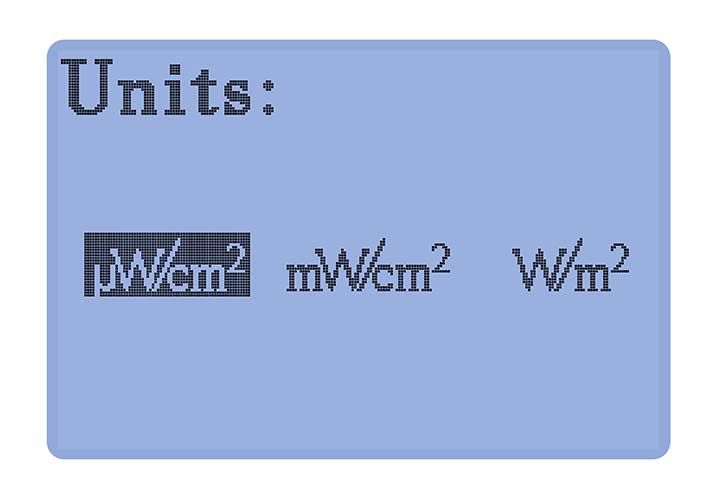

Three measurement units can be switched, namely μW/cm², mW / cm², W / m². Data conversion between different units does not require manual calculation
Qualifications and Standards
The UV light meter LS125 host + UVC-X0 probe conform to the following standard:
JJG 879-2015 Verification Regulation of Ultraviolet Radiometers

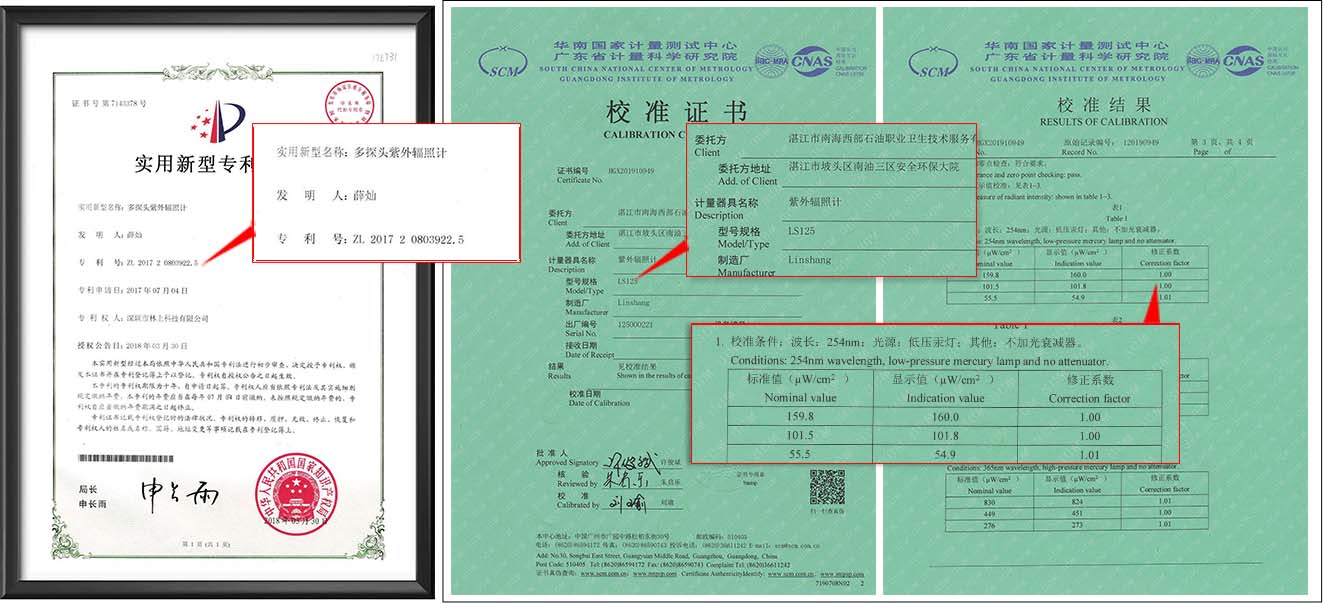

Certificates for LS125 UV radiometer host +UVC-X0 probe
