Spectral response range: 210-250nm Simultaneous measurement of energy and power values Range up to 200,000 μW/cm² Rich statistical functions
The LS125 UV light meter is a smart host that can support 12 different types of probes. Its main function is data display. The UVC-X2 Probe is one of the 12 probes which is equipped with the LS125 UV radiometer host. The spectral response range from 210nm to 250nm and capable of measuring up to 200,000 μW/cm². It is designed for measuring the intensity and energy of 222nm far UVC lamps.
Compared to other UVC lamps, 222nm UVC germicidal lamps are safer for human body, widely used in medical institutions, air purification, water treatment, and other disinfection applications. Examples include air purification sterilizers, medical germicidal lamps, and UV disinfection doors. Portable UV light meter like the LS125 + UVC-X2 probe are necessary to measure the UV irradiance of these 222nm UV light sources.

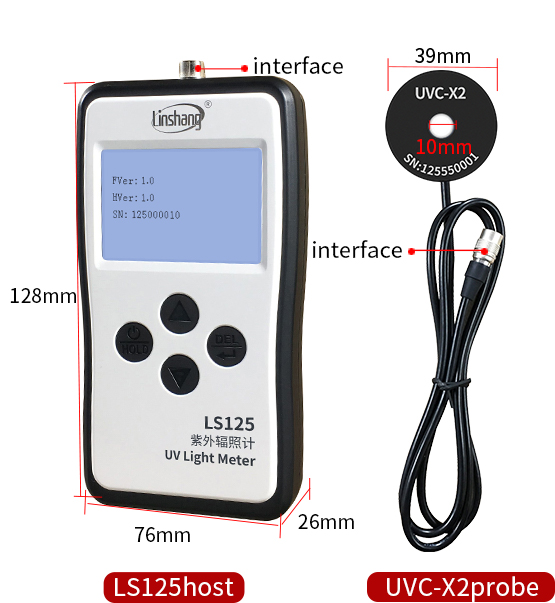

LS125 host + UVC-X2probe
If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.
Features
Spectral response range of 210nm~250nm, peak wavelength 222nm
The UVC-X2 probe has a spectral response range of 210nm-250nm, with a peak wavelength at 222nm, specifically designed for measuring the energy and intensity of UVC sterilization lamp sources.
Specialized used in 222nm UVC germicidal lamp inspection

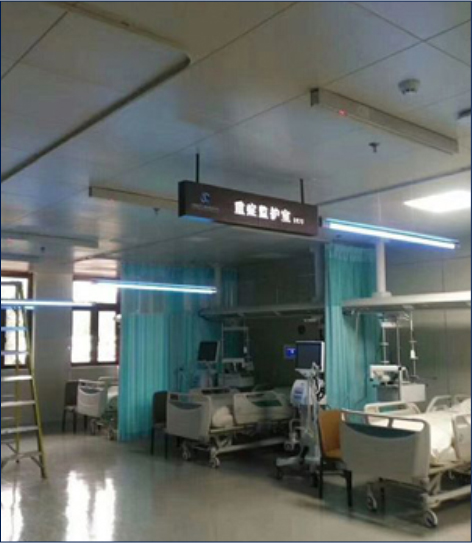

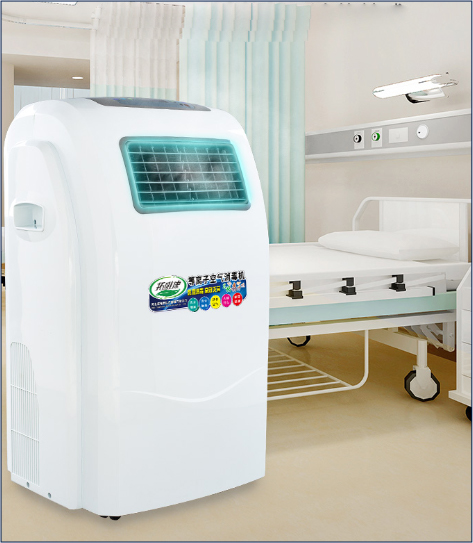

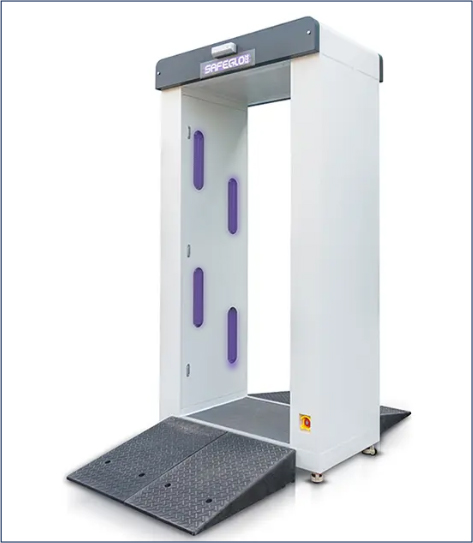

This probe is specialised measuring the 222nm far UVC lamp. Suitable for the detection of UV energy and intensity in air purification disinfectors, medical germicidal lamps, UV disinfection doors and other equipment.
Mature digital probe technology
Adopting mature digital probe technology, all data collection and processing are completed inside the probe. It ensure less interference and good measurement accuracy.
Wide range up to 200,000 μW/cm²
Maximum measurement power can reach to 200000 μW/cm².

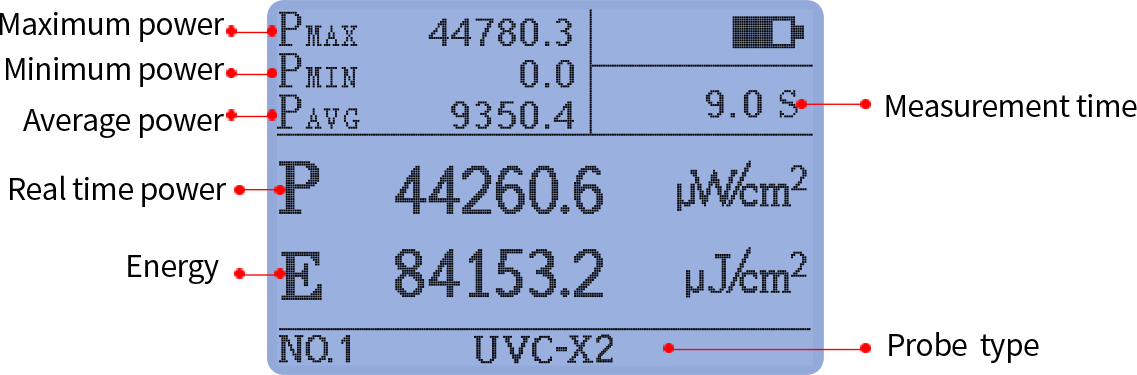

Statistical functions
Real-time value, maximum value, minimum value and average value of the power can be displayed at the same time.

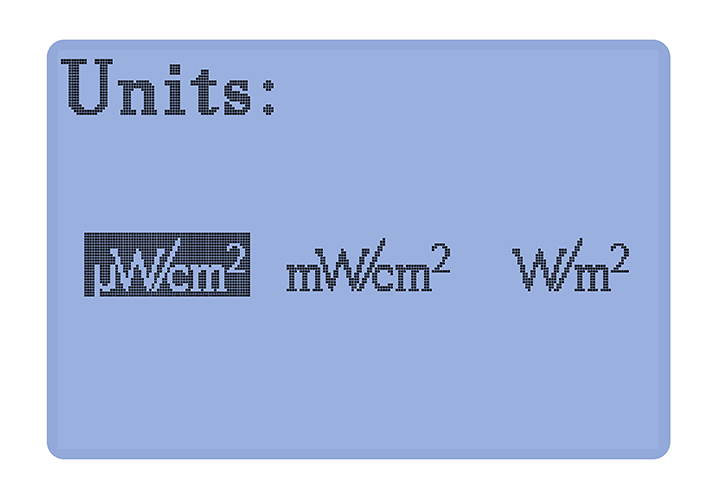

Multiple choices of measurement units
There are μW/cm², mW/cm², W/m² three kinds of unit free choice. Saving time and effort is not easy to make mistakes.
Qualifications and Standards
The UV light meter LS125 host + UVC-X2 probe conform to the following standard:
JJG 879-2015 Verification Regulation of Ultraviolet Radiometers
Certificates for LS125 UV radiometer host +UVC-X2 probe
