Spectral response: 230nm-315nm Power measuring range: 0 - 200000 μW / cm² Recording energy and intensity value at the same time

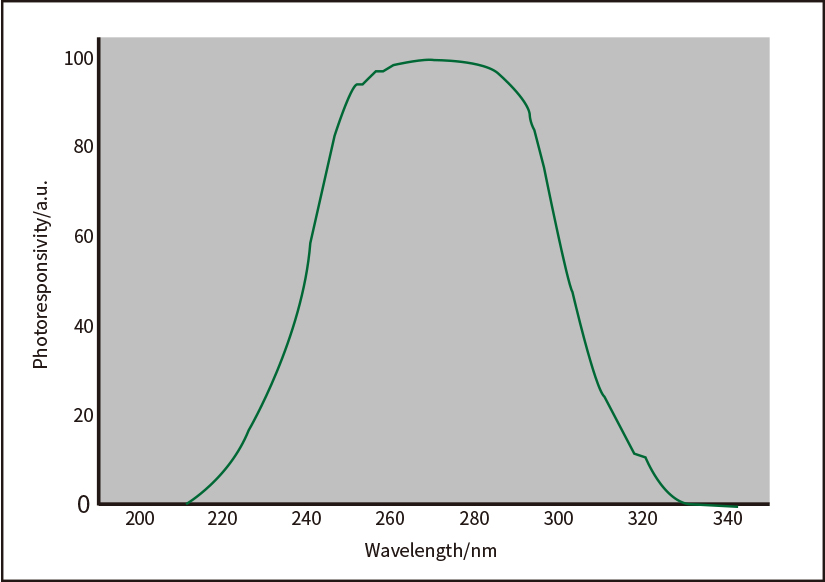

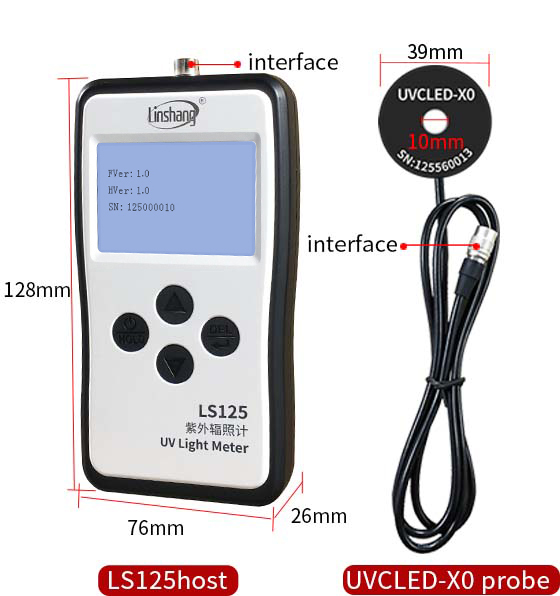

The LS125 UV light meter is a smart host that can support 12 different types of probes. Its main function is data display. The UVCLED-X0 probe is one of the 12 probes equipped with the LS125 host. The probe's spectral response range is 230nm-315nm, suitable for intensity and energy detection of 260nm-285nm high power LED germicidal lamp, such as 275nm, 285nm LED light source.
If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.
Features
Wide spectral response
suitable for intensity and energy detection of 230nm-315nm high-power LED germicidal lamps. The most common LED light sources are 275nm and 285nm
Large measuring range of power
Large-scale measurement, the maximum power can be measured to 200,000 μW / cm²
Statistics function

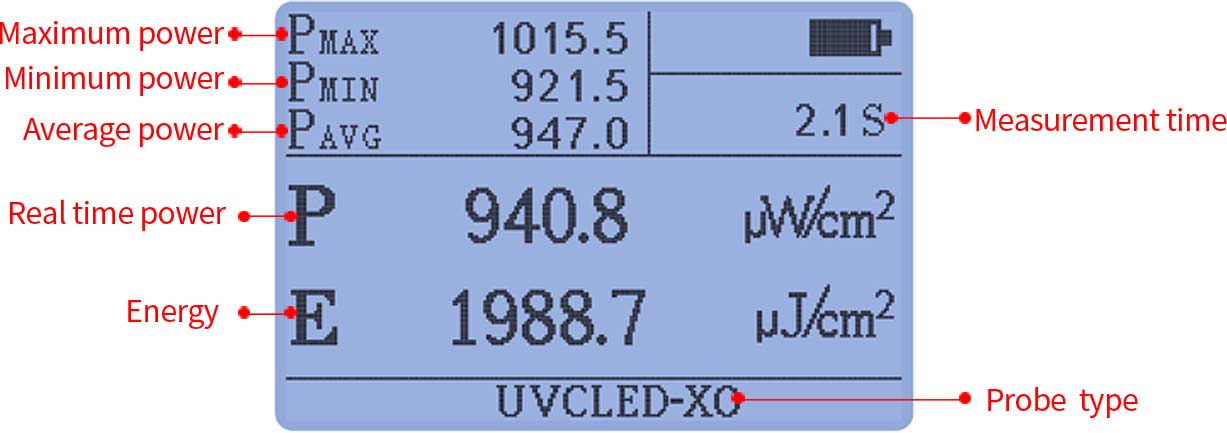

LS125 UV radiometer + UVCLED-X0 probe has rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time and energy value are displayed at the same time
Mature digital probe technology
Adopting mature digital probe technology, all data collection and processing are completed inside the probe. Data transmission through digital signals with stronger anti-interference ability can ensure more stable test data
Units switchable freely

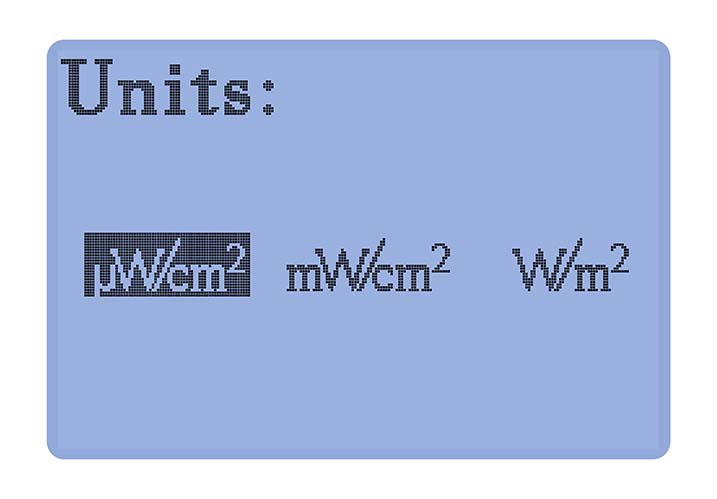

Three measurement units can be switched, namely μW/cm², mW / cm², W / m². Data conversion between different units does not require manual calculation
Qualifications and Standards
