Spectral response: 230nm-280nm, λp = 254nm Waterproof, the probe can be submerged to the depth of 1 meter Large power range , the maximum measurement power up to 200000μW/cm²
The LS125 UV light meter is a smart host that can support 12 different types of probes. Its main function is data display. The UVCWP-X1 probe is one of the 12 probes equipped with the LS125 host. The probe's spectral response range is 230nm-280nm, the peak wavelength is 254nm. This UV radiometer is waterproof to 1 meter deep. It is a probe specially developed for water treatment high-power germicidal lamps.
Application
Water treatment is divided into wastewater treatment, urban water supply treatment, drinking water treatment, purified water treatment, and agricultural wastewater treatment. There are two methods of water treatment. The first is to put sterilization lamps into the water to sterilize. The second method is to sterilize the lamp in a sleeve. Because the water flow rate is too fast, the germicidal lamp time is sometimes less than 1 second, so a high-power germicidal lamp or a longer ultraviolet lamp is required to sterilize. LS125 + UVCWP-X1 waterproof light meter is a professional instrument for detecting water treatment germicidal lamps.
If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.
Features
Waterproof
The probe is waterproof and the waterproof depth can reach 1 meter
Good digital probe technology
Adopting mature digital probe technology, all data collection and processing are completed inside the probe. Data transmission through digital signals with stronger anti-interference ability can ensure more stable test data
Large power range , the maximum measurement power can reach 200000μW/cm²
Large-scale measurement, the maximum power can be measured to 200,000 μW / cm²

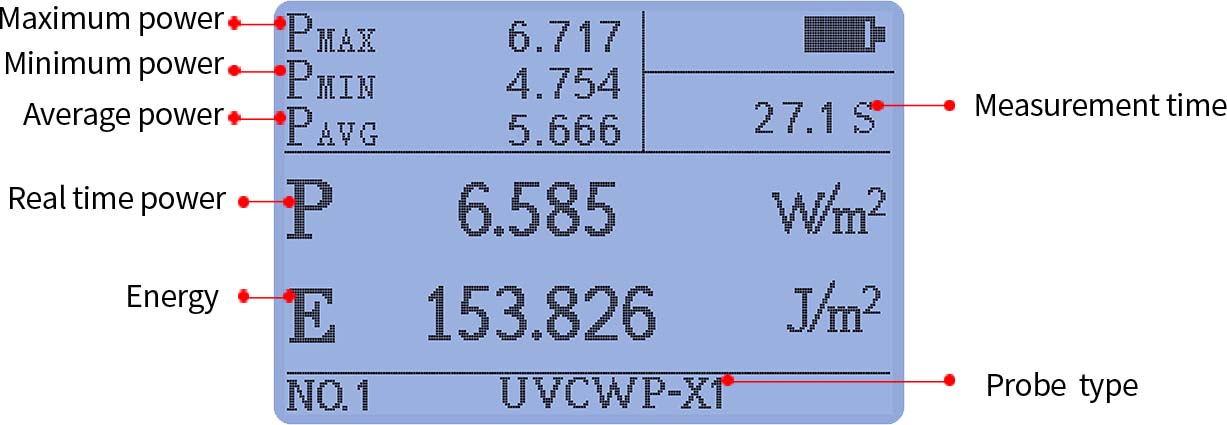

Data Statistics
The probe can intelligently statistics the real-time value, maximum value, minimum value and average value of the power, record the measurement time.All these values can be displayed in the screen at the same time

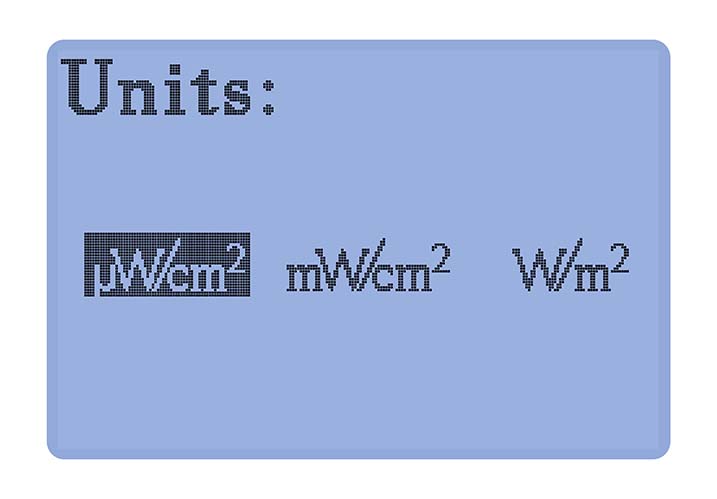

Units are available
Three measurement units can be switched, namely μW/cm², mW / cm², W / m². Data conversion between different units does not require manual calculation
Qualifications and Standards
The UV light meter LS125 host + UVCWP-X1 probe conform to the following standard:
JJG 879-2015 Verification Regulation of Ultraviolet Radiometers

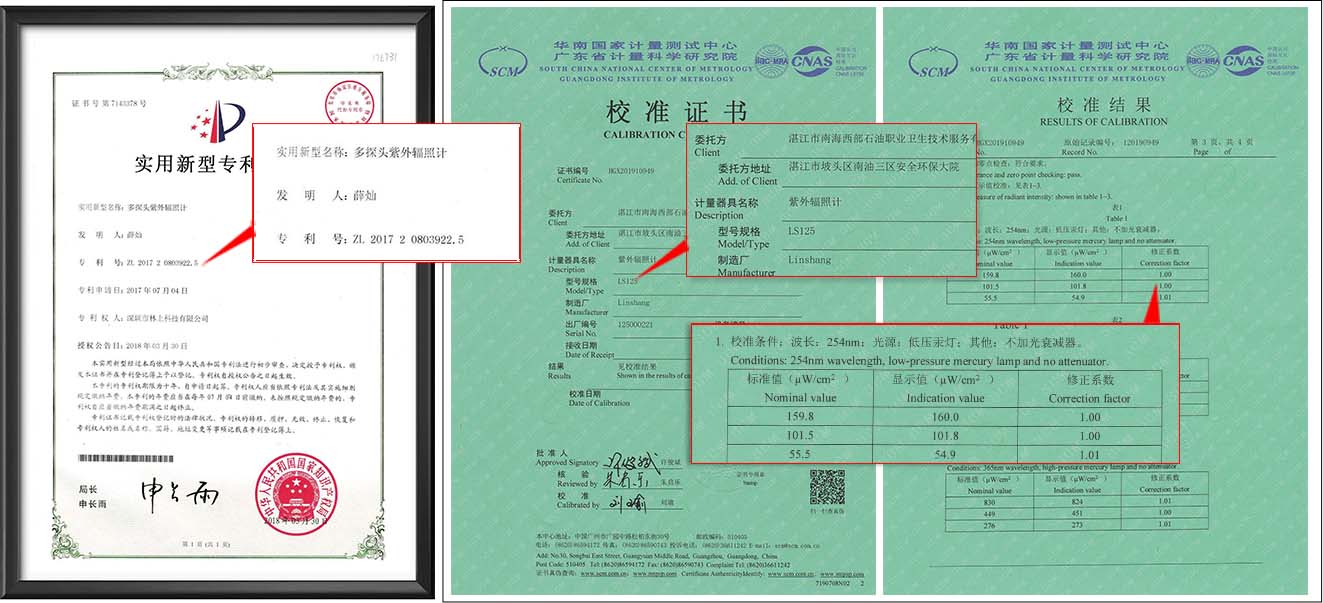

Certificates for LS125 UV radiometer host +UVCWP-X1 probe
