Ultra-small probe, narrowest width of 7.2mm Wide spectral range: 340nm-420nm With a high-speed sampling speed of 2048 times per second
LS126A UV intensity meter is ideal for testing the intensity and energy of UVA band in UV LED light source, mainly contains 365nm, 375nm, 385nm, 395nm, 405nm band, mostly used in curing and exposure industry. The meter has a wide spectral response range, suitable for measuring various wavelengths from 365nm to 405nm. The width of the probe is one 7.2mm, which is applicable for measuring the narrow space where the ordinary probe is not easily placed.

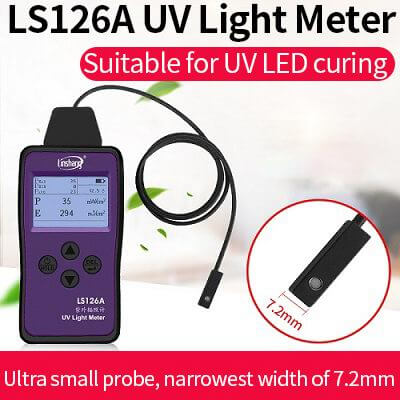

LS126A UV intensity meter display

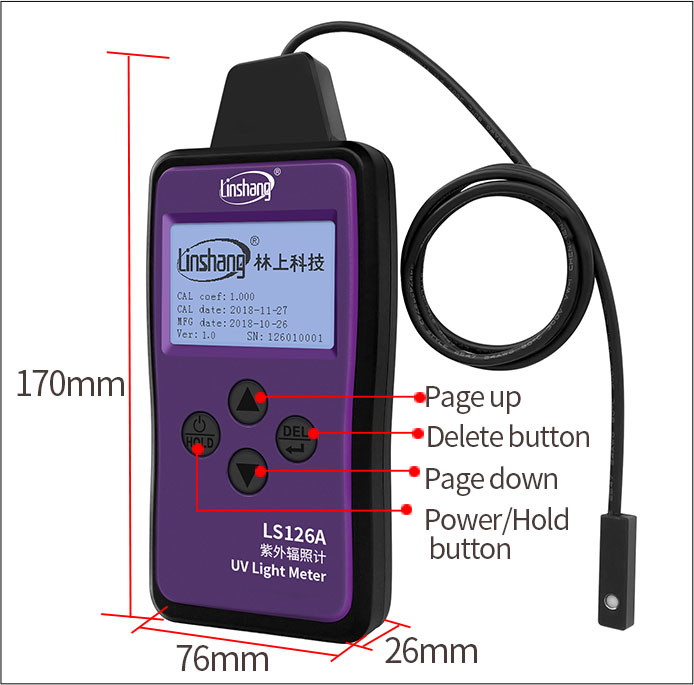

Front side of the LS126A

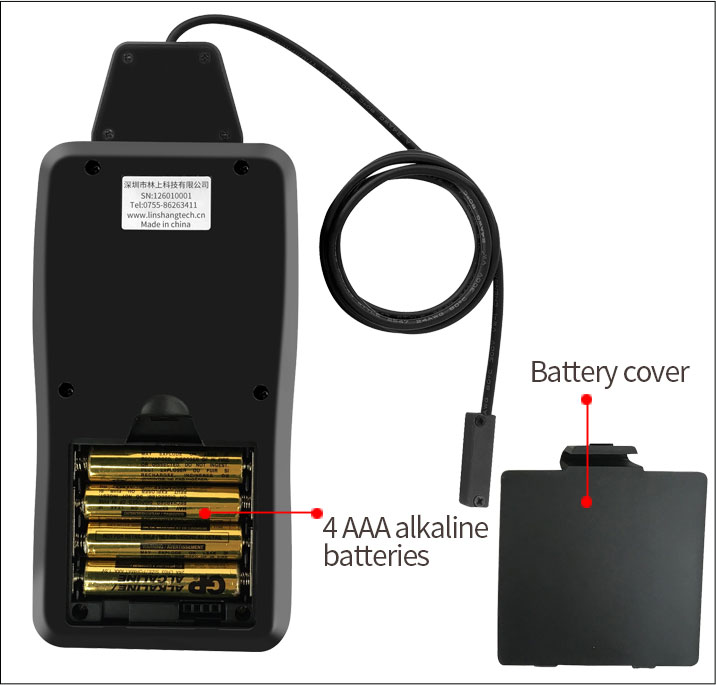

Back side of the LS126A
Features
The width of the probe is narrow, free from the limitations of measurement space
The probe adopts ultra-small size design, which can measure the narrowest width of 7.2 mm
High-speed acquisition
The probe collects data at a rate of 2048 times/second, enabling accurate calculation of UV energy

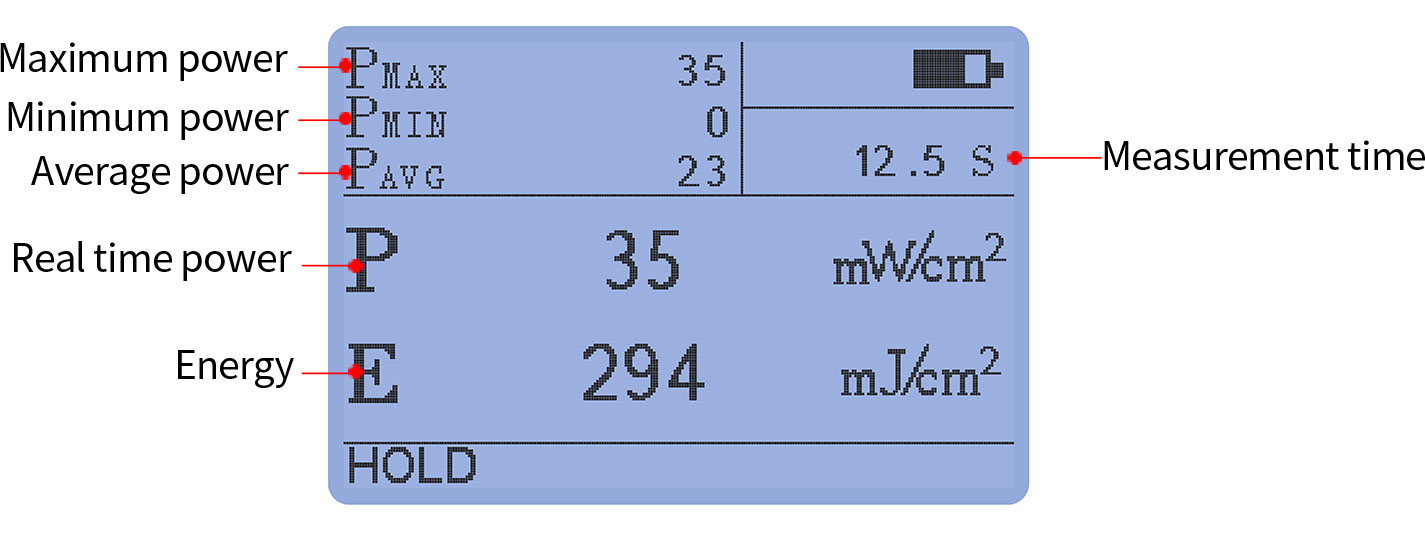

Data statistics function
The smart meter has intelligent data statistical function that is able to record the maximum, minimum, real-time and average power values of the UV energy and the cumulative energy value.

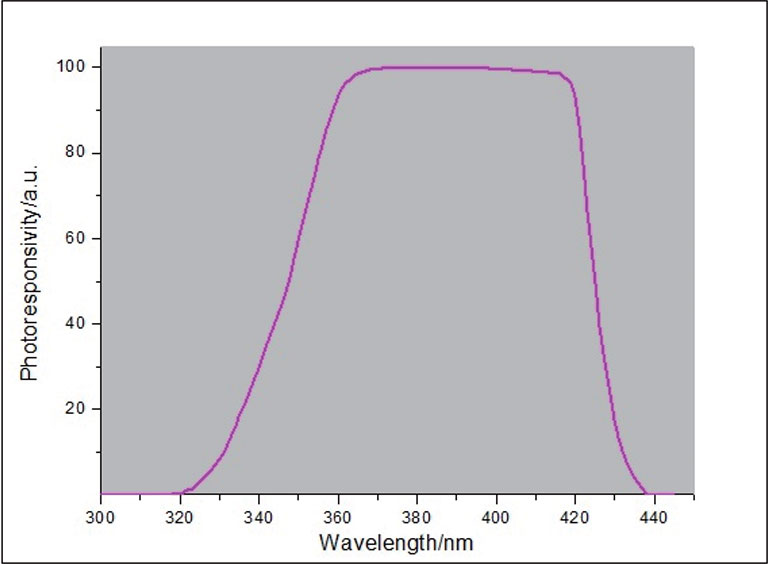

Wide spectral range
The spectral response of the instrument ranges from 340nm to 420nm. It is suitable for the detection of the intensity and energy value of LED light sources in narrow space of 365nm, 375nm, 385nm, 395nm, 405nm and other bands

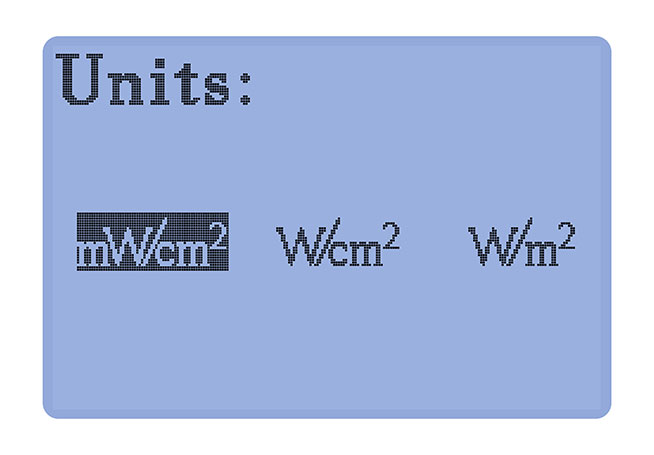

Multiple measurement units available
There are three units to choose including mW/cm², W/cm² and W/m² which meets different needs of users
Packing
| No. | Item | Quantity | Unit |
|---|---|---|---|
| 1 | LS126A UV Light Meter | 1 | Pcs |
| 2 | User Manual | 1 | Pcs |
| 3 | Calibration Report | 1 | Pcs |
| 4 | Certificate/Warranty Card | 1 | Pcs |
| 5 | Packing Box Dimension 34*29*9 cm（L*W*H） | 1 | Pcs |

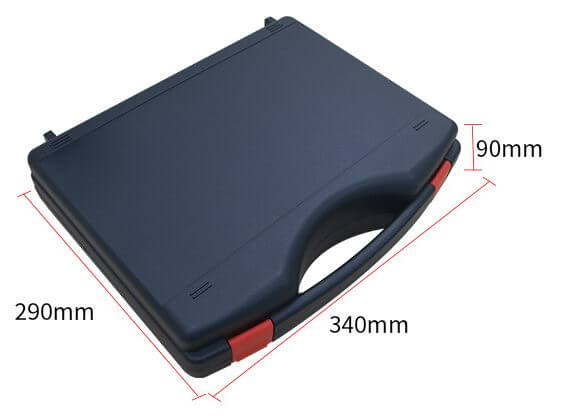

LS126A UV light meter package
