Record UV radiation intensity and dosage Monitor real-time radiation intensity through the WeChat mini program Provide PC software
LS126C UV light meter is a professional instrument for measuring the intensity of UVC germicidal lamps. The UV radiometer is delivered with a 1-meter test hook in accordance with the 1-meter test requirements specified in the "WST 367-2012 Regulation of disinfection technique in healthcare settings" to ensure full compliance with the test standards. The LS126C UVC light meter has a Bluetooth data transmission function. After connecting with the WeChat mini program, it can monitor the intensity of the germicidal lamp in real time from a certain distance to avoid UV burns during the test.
Feature

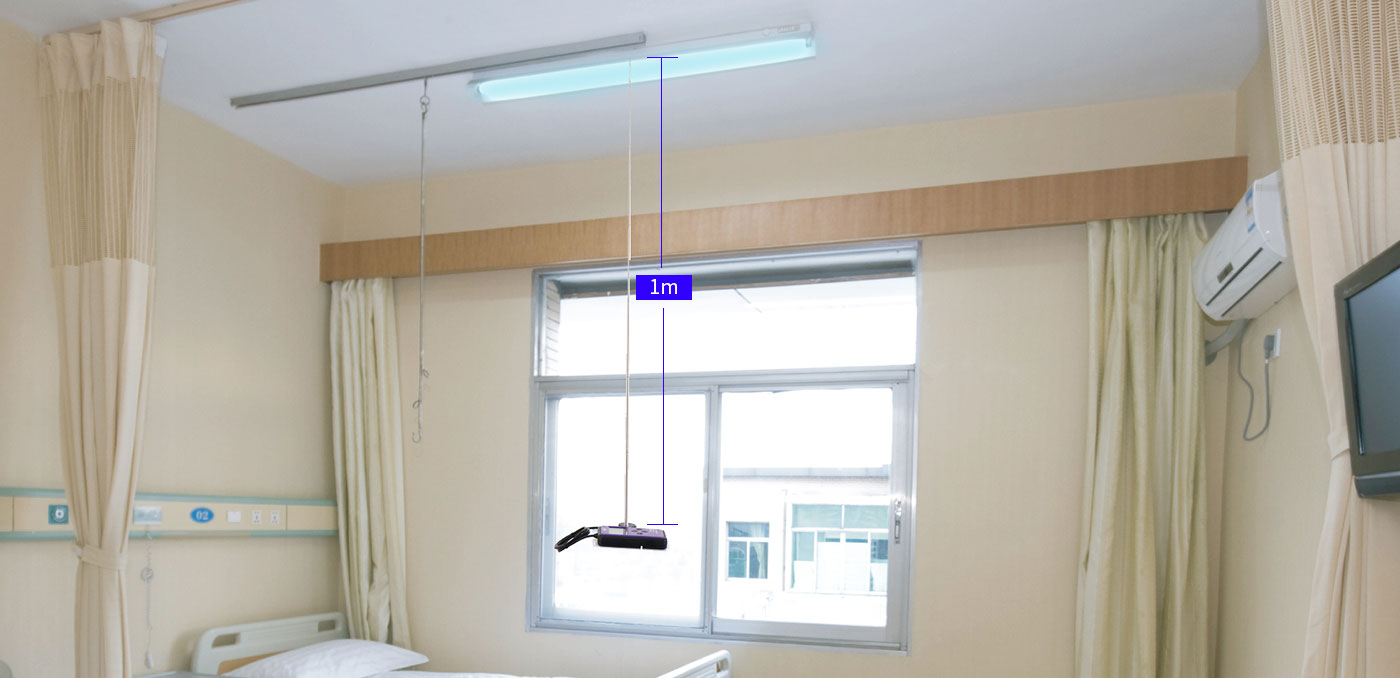

Provide a-meter long hook making measurement in line with specifications
The LS126C UV intensity tester is based on the detection requirements of 1 meter distance specified in the "WST 367-2012 Regulation of disinfection technique in healthcare settings"; and a 1 meter test hook is provided

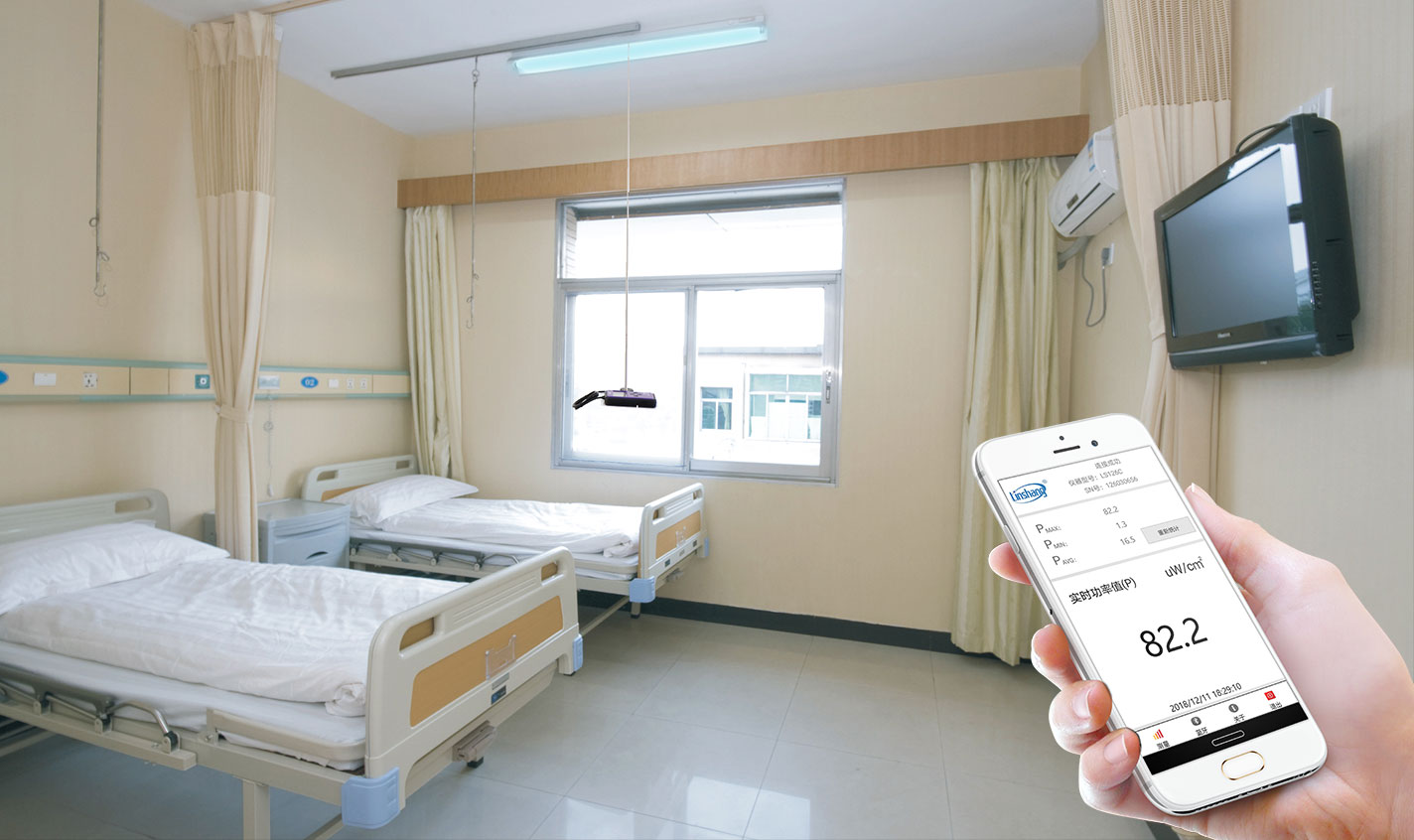

Connected with WeChat mini program through Bluetooth, testing away from UVC damage
The UVC light meter comes with a Bluetooth data transmission function. After connecting a dedicated WeChat mini program, the data can be wirelessly monitored from a certain distance to avoid being burned by ultraviolet rays when viewing the data on site
Intelligent statistical data function

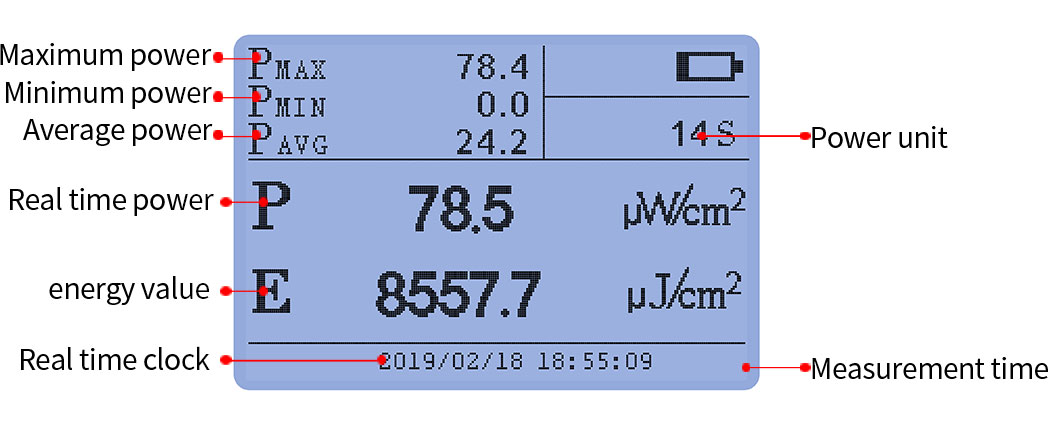

LS126C UV irradiance meter has intelligent statistical data function. It is able to count the real-time power value, maximum value, minimum value, average value and energy value of the light source and record the measurement time
enabling unattended measurement
The UV light meter can be set to automatically shut down within 1-10 minutes. The test data will be automatically saved when the instrument is turned off, enabling unattended measurement. The NO.1 data displayed on the screen when the machine is turned on is the latest test data. The instrument can record a total of 25 sets of data
the accumulated energy value is automatically counted and showed on the screen when users set the meter to display them
high-precision UVC filters and professional UV sensors reduce measurement errors
Digital signal processing is completed inside the probe, which is not susceptible to interference and provides good test accuracy

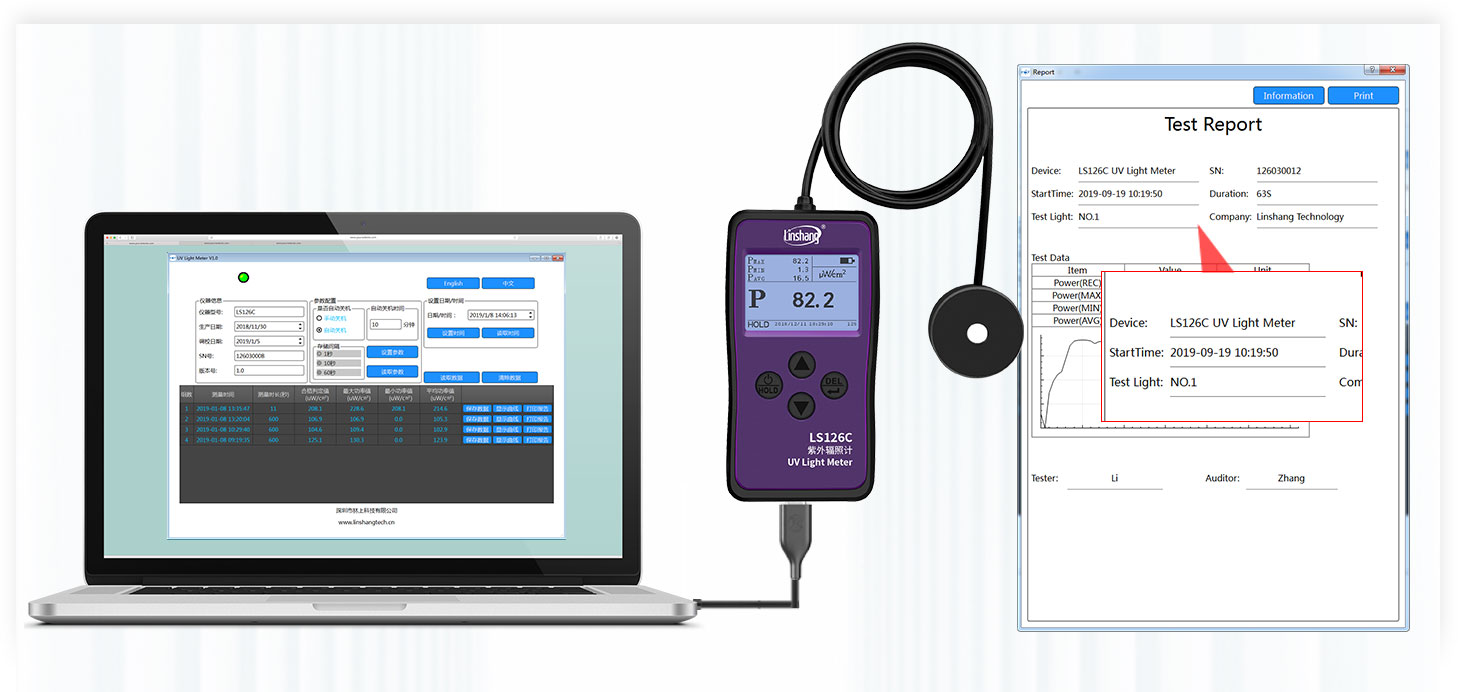

Provide PC software
LS126C UV intensity detector is equipped with USB communication port and dedicated PC software. The test data can be exported to the EXCEL by computer software. The test report can also be generated and printed
Qualifications and Standards
1. " WST 367-2012 Regulation of disinfection technique in healthcare settings " A.3 Monitoring of the Effect of Ultraviolet Disinfection
UV light meter measurement method
After turning on the UV lamp for 5min, place the UV light meter probe with a measuring wavelength of 253.7nm at the center of 1m vertical distance under the tested UV lamp. The special UV lamp is measured at the recommended distance. After the meter is stable, the displayed value is the irradiance value of the ultraviolet lamp.
Judgment of results
For ordinary 30W straight tube UV lamps, the irradiation intensity of the new lamp should meet the requirements of GB 19258; the use of ultraviolet lamp irradiation intensity ≥70μW / cm² is qualified; the 30W high-intensity ultraviolet lamp irradiation intensity ≥180μW / cm² is qualified.
2. LS126C UV light meter meets national standards
JJG 879-2015 Verification Regulation of Ultraviolet Radiometers

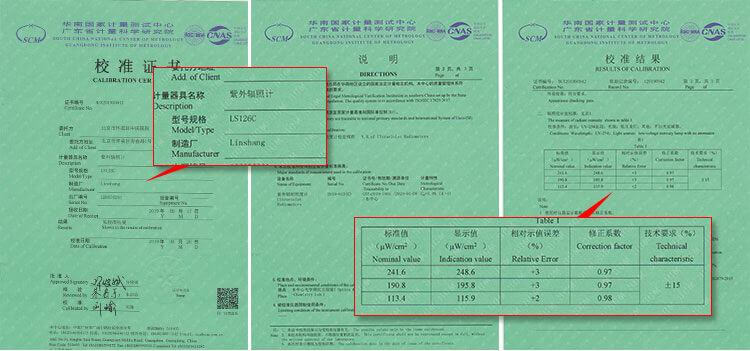

LS126C UV light meter calibration report
Installation and Operation
1. WeChat Mini Program
UVLightMeter supports WeChat Mini Program. Use your WeChat to scan the QR code below, follow the prompts to use the WeChat mini program. (The mini program one supports Chinese)
2. PC Software
The instrument can connect to the computer via USB for PC software use. (PC software one supports Windows)
It does not need to be installed, download the "UV irradiation meter PC software" online to the local computer, unzip it and run it directly. Download address:
Click to download
UV meter WeChat mini program

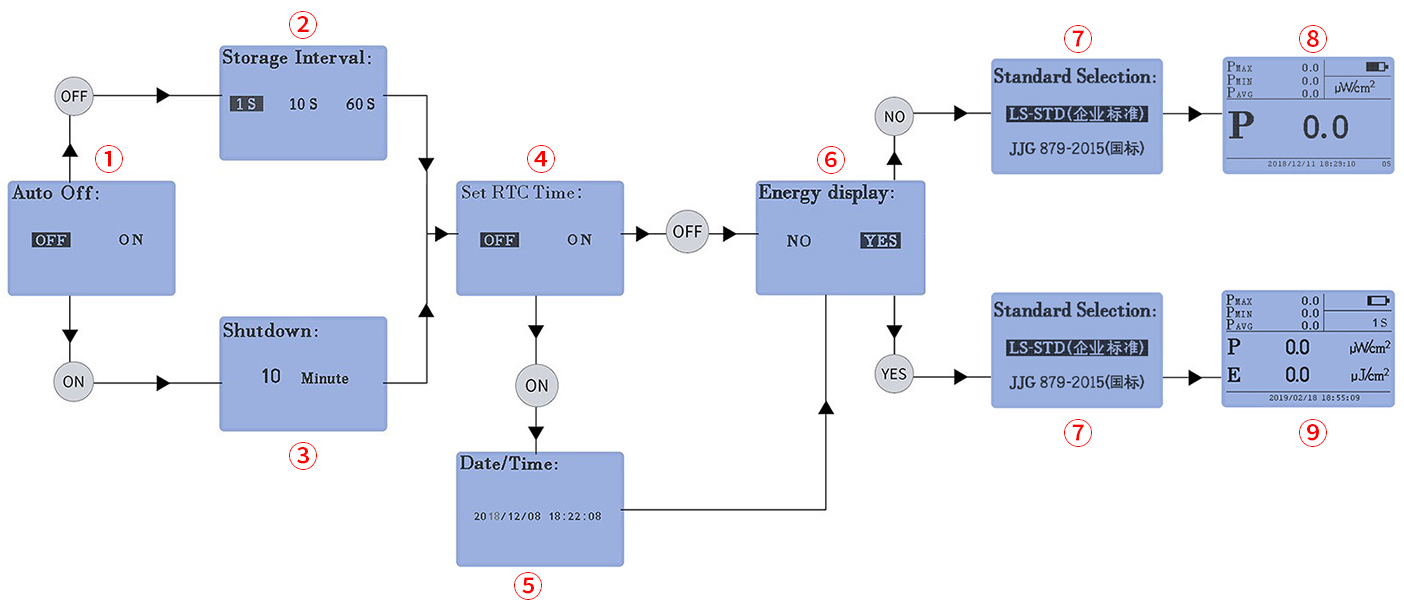

Parameter Setting Process
In the off state, press and hold the power button to enter the parameter setting mode. For detailed steps, please refer to the image below.
Set whether automatic shutdown is required.
Set the data storage interval.
Set the automatic shutdown time.
Set whether to configure the date/time.
Set the date/time.
Set whether to display the energy value.
Standard selection interface.
Energy value not displayed interface.
Energy value displayed interface.
LS126C Parameter Setting
Packing
| No. | Item | Quantity | Unit |
|---|---|---|---|
| 1 | LS126C UV Light Meter | 1 | Pcs |
| 2 | USB Cable | 1 | Pcs |
| 3 | UV Scale Hooks | 1 | Pcs |
| 4 | User Manual | 1 | Pcs |
| 5 | Calibration Report | 1 | Pcs |
| 6 | Certificate/Warranty Card | 1 | Pcs |

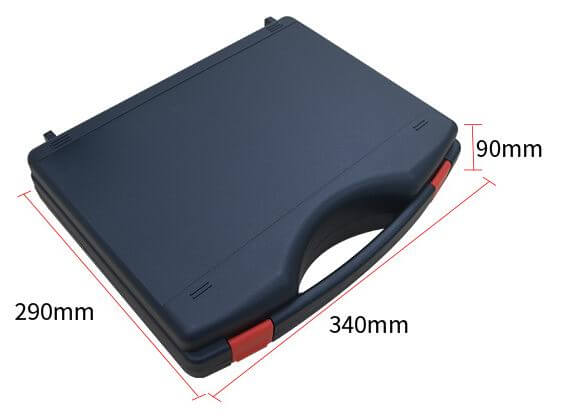

| 7 | Plastic Case 34*29*9 cm（L*W*H） | 1 | Pcs |
UVC light meter package
