Special for low pressure mercury lamp Equipped with WeChat mini program to realize real-time monitoring and stay away from ultraviolet radiation damage Free 1-meter test hook, in line with relevant national testing standards
LS127C UV light meter is a professional instrument for measuring the radiation intensity of UVC germicidal lamps. It utilizes an integrated design and is easy to operate. LS127C can monitor the intensity of germicidal lamp radiation in real time while keeping users away from UV radiation damage thanks to its Bluetooth function and WeChat mini program connection. The instrument is fully referenced to the "WST 367-2012 Regulation of disinfection technique in healthcare settings" testing requirements, the distribution of a 1-meter test hook to ensure full compliance with testing standards.
Application

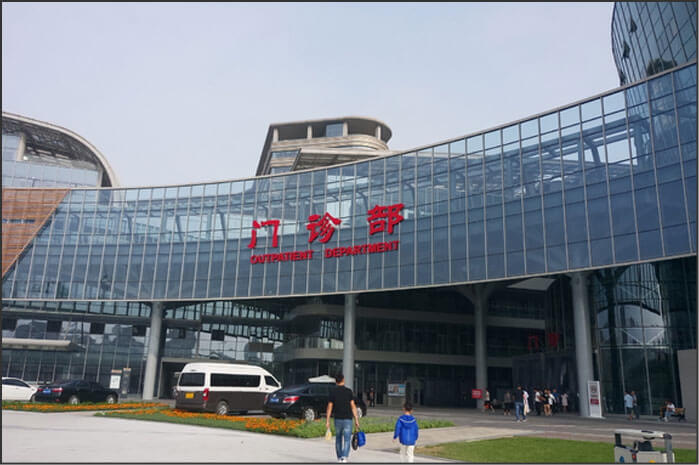

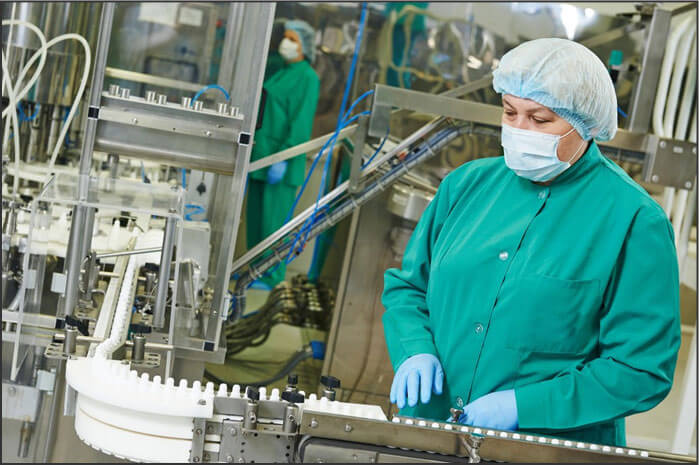

LS127C UV light meter has been widely used in hospitals, disease control centers, pharmaceutical companies, food and drug administration, environmental monitoring stations and other fields of 254nm UVC germicidal lamp intensity measurement.
Features
Integral design
The instrument adopts an integrated design, which is simple and convenient to operate.
WeChat mini program real-time monitoring, away from UV radiation damage
The instrument has a Bluetooth function that may be used to wirelessly monitor data when connected to the WeChat mini program, preventing on-site viewing of data when the testers are exposed to germicidal lamp UV burns.
Provide one meter hook

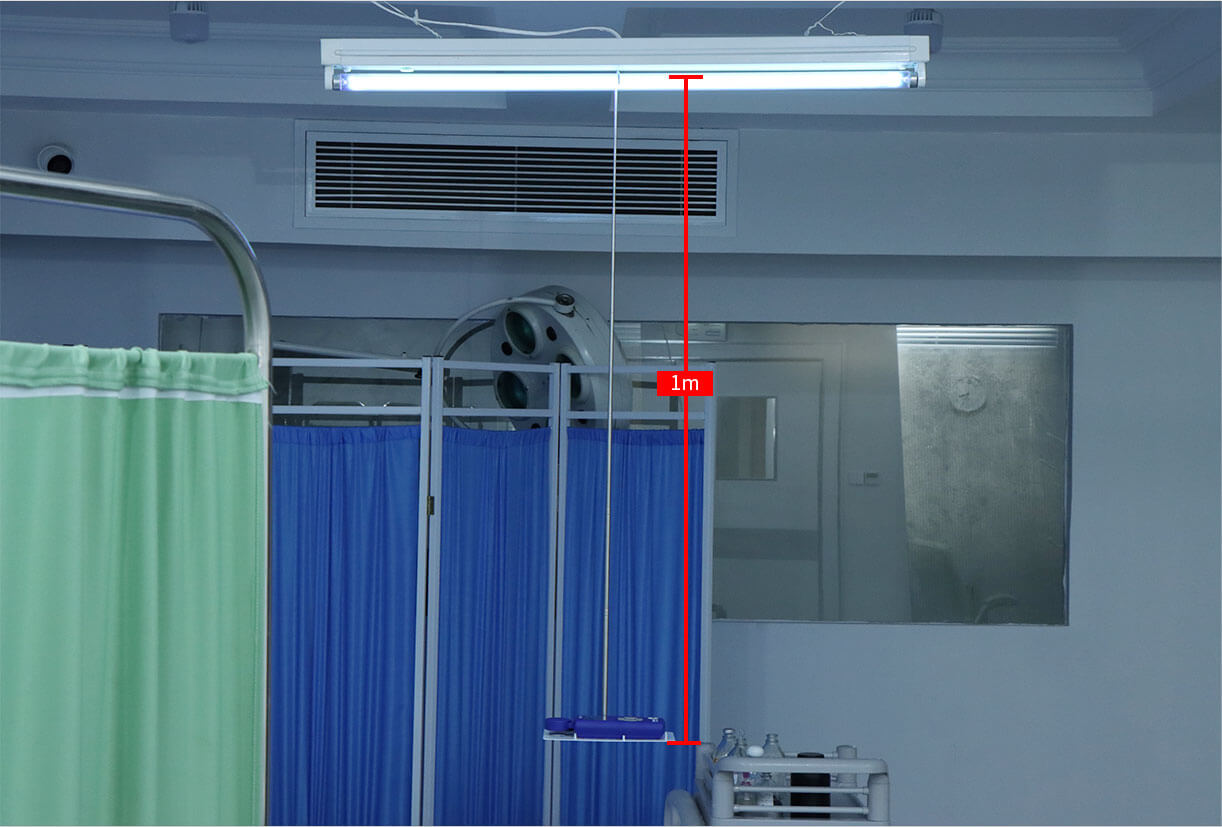

The LS127C integrated UV light meter is equipped with a 1-meter test hook according to the testing requirements of the 1-meter distance specified in the "WST 367-2012 Regulation of disinfection technique in healthcare settings", which allows the instrument to be placed on a hook base and the hook to be hung directly below the vertical of the lamp for measurement.
Automatic shutdown can be set, no need to guard the measurement
The instrument can be set to automatically shut down within 1-255 minutes, the test data will be automatically saved when shutting down, and the data of "Record 1" displayed on the screen when turning on the instrument again is the latest test data, which can achieve unattended measurement, and the instrument can record up to 70 sets of data.
High-precision filter and UV sensor
The instrument adopts high precision UVC filter and professional UV sensor to eliminate the influence of UVA and UVB band light intensity on the data.
Mature digital probe technology
The instrument adopts mature digital probe technology, which allows for on-probe digital signal processing, superior test accuracy, and resistance to interference.
Intelligent statistical measurement data

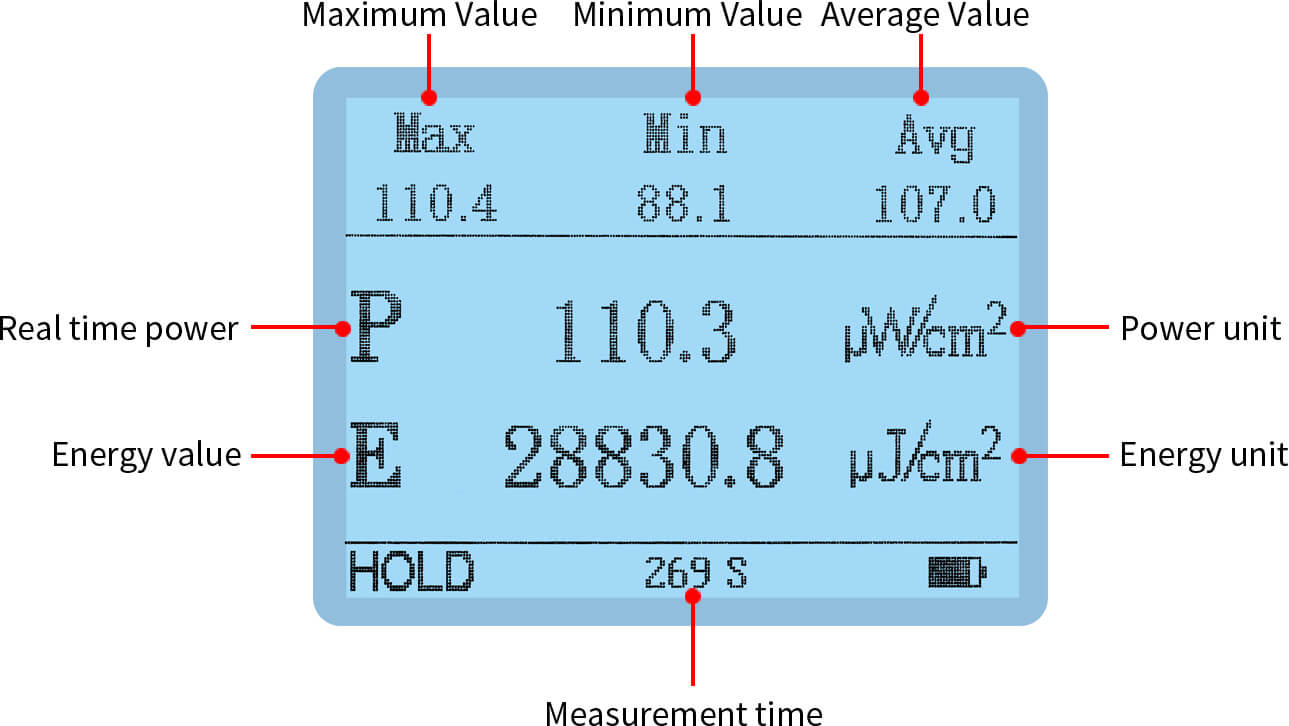

LS127C UV light meter with intelligent statistics, real-time statistics of the measurement process germicidal lamp power real-time value, max value, min value, average value, measurement time. After opening the display energy value, can automatically count the cumulative energy value.
Practical PC software support

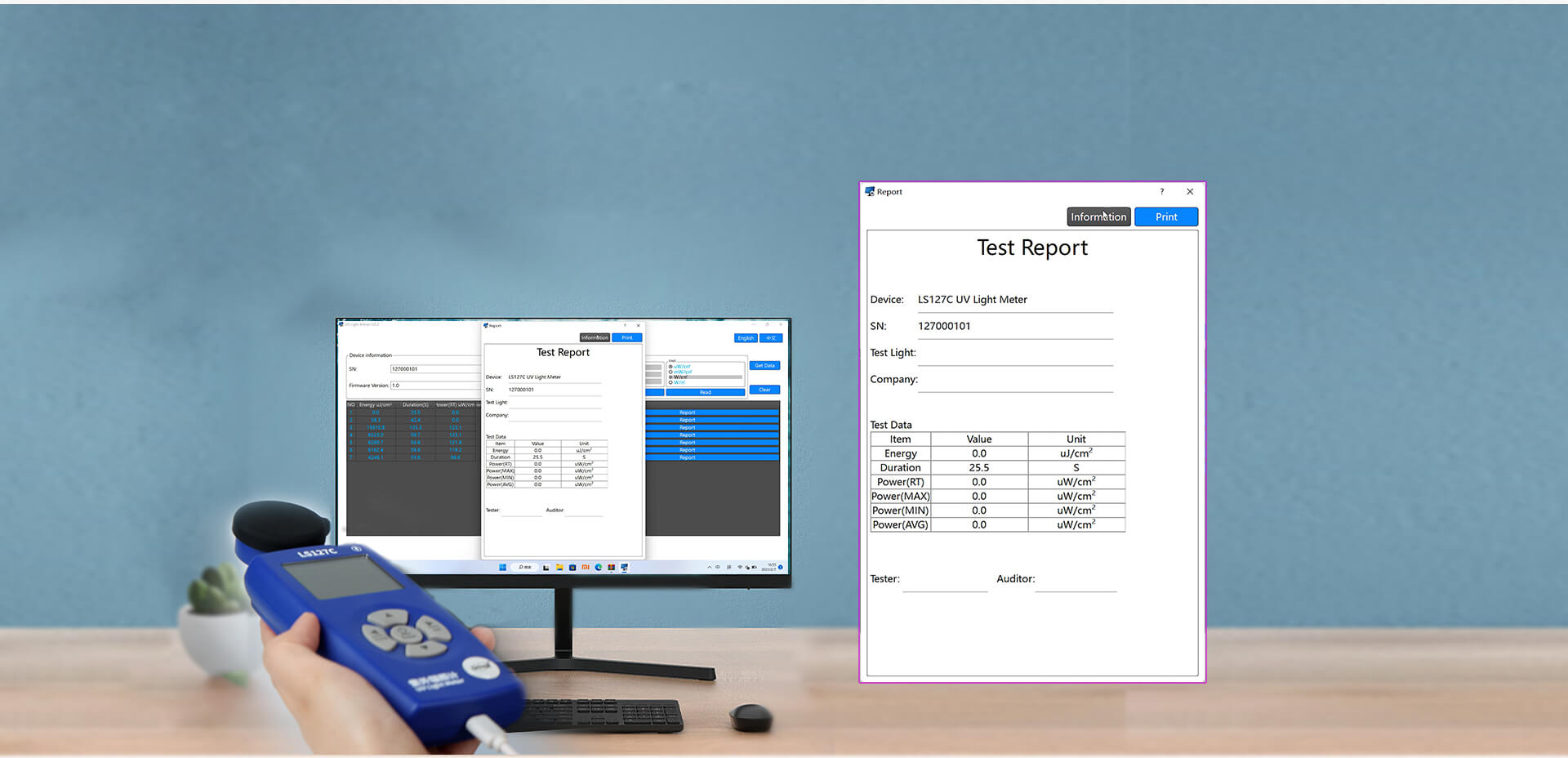

The instrument is equipped with USB communication interface and special PC software to support report printing.
Qualifications and Standards
1. " WST 367-2012 Regulation of disinfection technique in healthcare settings " A.3 Monitoring of the Effect of Ultraviolet Disinfection
UV light meter measurement method
After turning on the UV lamp for 5min, place the UV light meter probe with a measuring wavelength of 254nm at the center of 1m vertical distance under the tested UV lamp. The special UV lamp is measured at the recommended distance. After the meter is stable, the displayed value is the irradiance value of the ultraviolet lamp.
Judgment of results
For ordinary 30W straight tube UV lamps, the irradiation intensity of the new lamp should meet the requirements of GB 19258; the use of ultraviolet lamp irradiation intensity ≥70μW / cm² is qualified; the 30W high-intensity ultraviolet lamp irradiation intensity ≥180μW / cm² is qualified.
2. LS127C UV light meter meets national standards
JJG 879-2015 Verification Regulation of Ultraviolet Radiometers

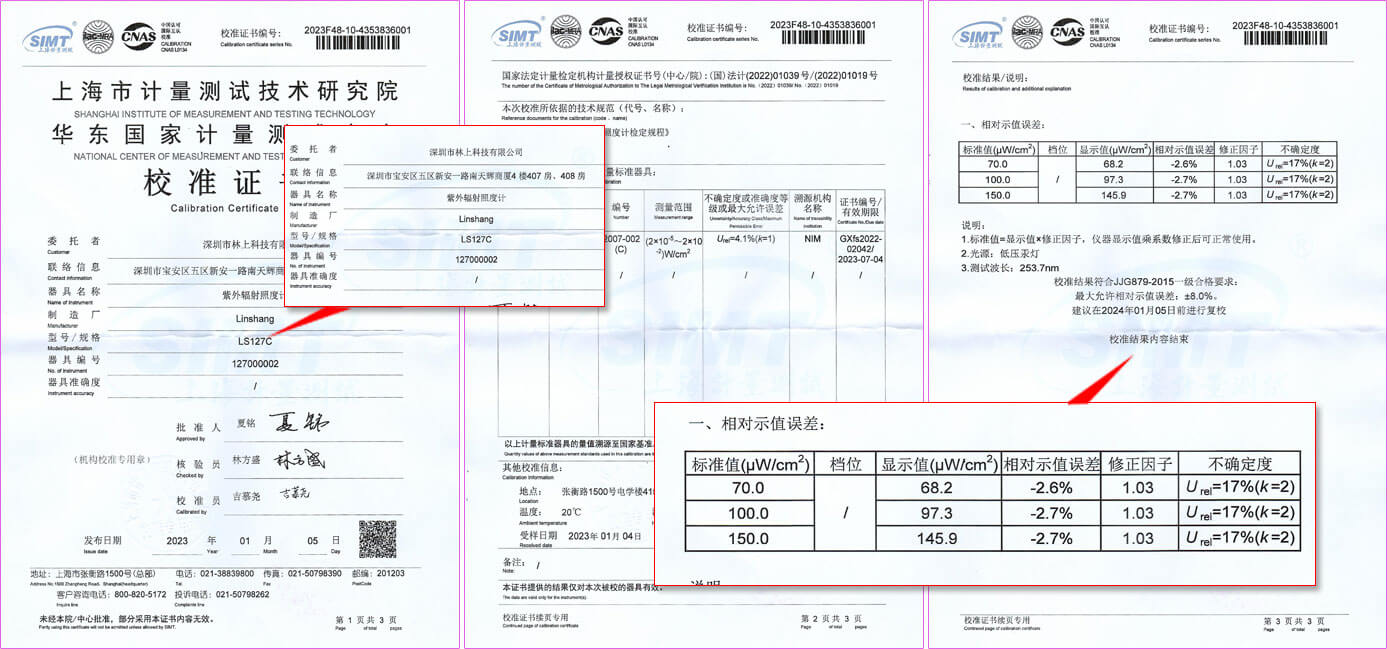

LS127C Calibration Certificate
Installation and Operation
1. WeChat Mini Program
UV Light Meter supports WeChat mini program. Use your WeChat to scan the QR code below, follow the prompts to use the WeChat mini program. (The mini program one supports Chinese)
2. PC Software
The instrument can connect to the computer via USB for PC software use. (PC software one supports Windows)
It does not need to be installed, download the "UV irradiation meter PC software" online to the local computer, unzip it and run it directly. Download address:
Click to download
Packing
| No. | Item | Quantity | Unit |
|---|---|---|---|
| 1 | LS127C UV Light Meter | 1 | Pcs |
| 2 | USB Cable | 1 | Pcs |
| 3 | UV Scale Hooks | 1 | Pcs |
| 4 | Silicone Case | 1 | Pcs |
| 5 | User Manual | 1 | Pcs |
| 6 | Calibration Report | 1 | Pcs |
| 7 | Certificate/Warranty Card | 1 | Pcs |

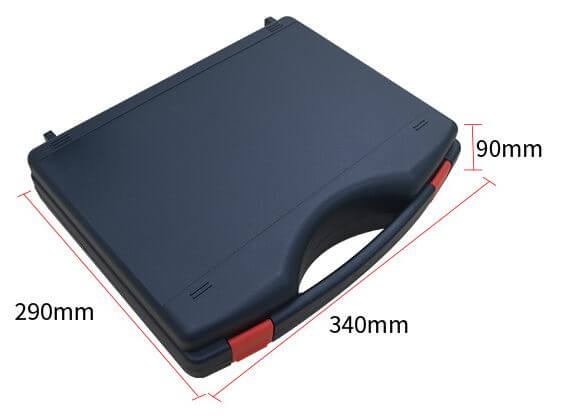

| 8 | Plastic Case 34*29*9 cm（L*W*H） | 1 | Pcs |
UVC light meter package
