Special for UV LED (365, 385, 395, 405nm, etc.) UV intensity measuring range of 200000 mW/cm² Record UV intensity, energy, temperature and curing time together Provide PC software
LS128 is a professional UV energy meter for testing UV LED light sources and has various good achievements:
The first UV energy meter for UV LED light source testing.
The first wide-range UV energy meter with a range of 200W/cm².
The first UV energy meter for a wide spectrum (340nm-420nm).
The first UV energy meter that measures temperature and power at the same time and can display process curves.
Its spectral response range is 340nm-420nm and it can test various wavelengths of 365nm, 375nm, 385nm, 395nm, 405nm and other UV LED light source.
Features
Two measurement modes available
There are two measurement modes. One is Manual mode which needs to start up or end of measurement manually. Another is automatic modes that can automatic switch-on or end of measurement when the energy intensity emitted by the light source is above or below the trigger threshold that can be set

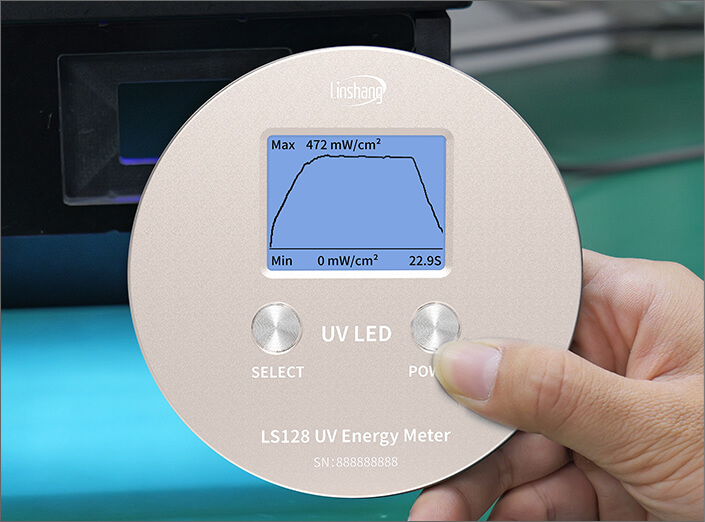

automatic measurement mode
manual measurement mode

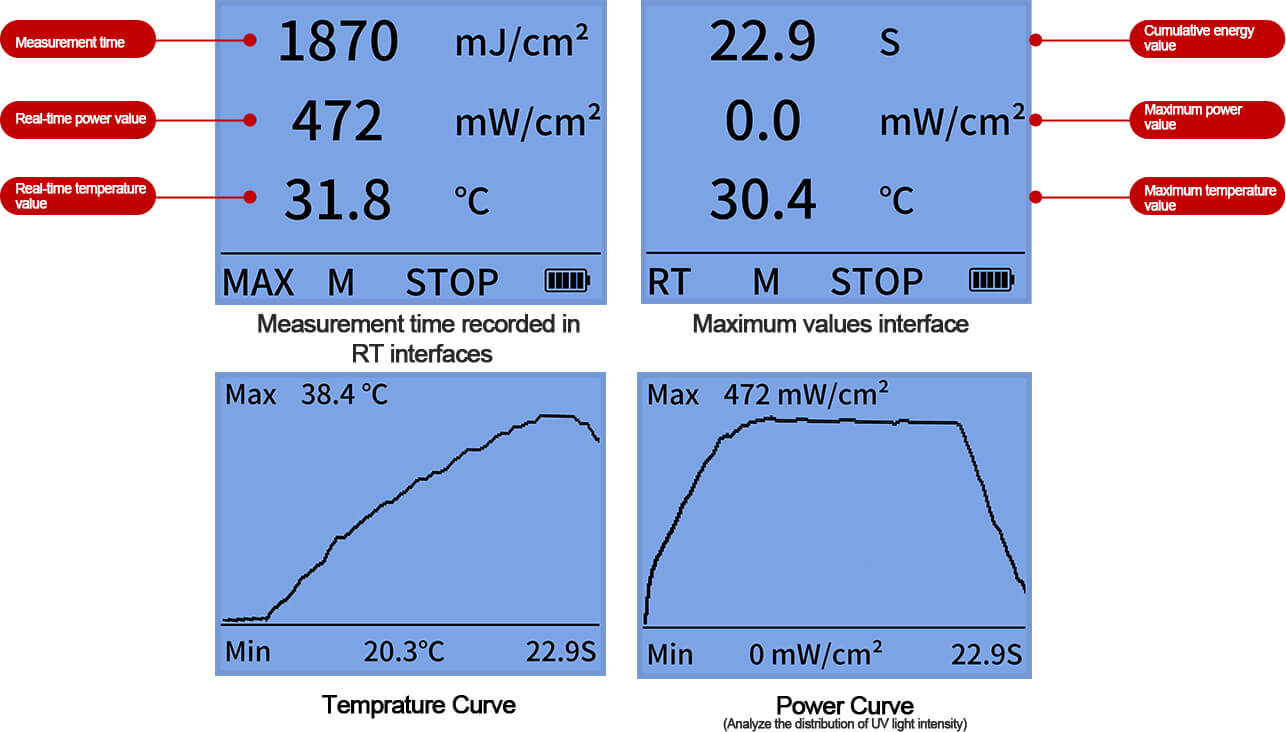

Four interfaces help you record the data of UV light source
There are four interfaces to help you know better about UV light source you tested: In maximum values interface, you can acquire cumulative energy value, maxiumum power value and maximum temperature value. Measurement time can be recorded in RT interface. In temperature and power curve interface, you can know the temperature change and energy intensity variation of the light source. Four interfaces can be switched freely
Wide spectral response range
With wide spectral response range, the UV power puck can test UV LED light source with any peak in the range of 340nm-420nm
Practical PC software

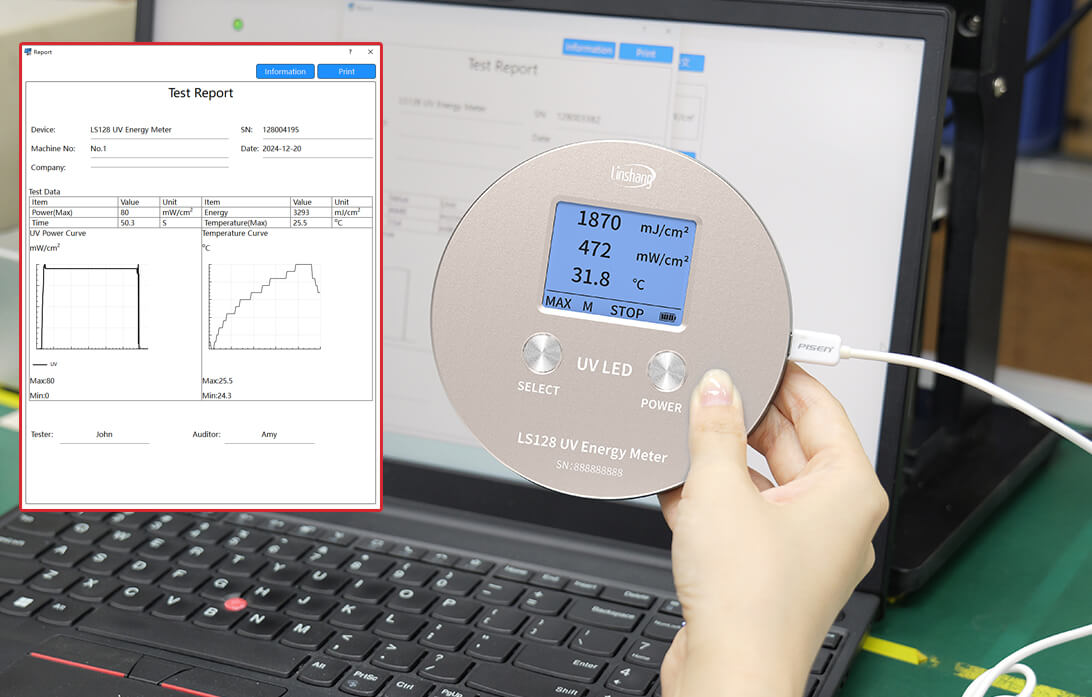

The LS128 UV Energy Meter can be connected to PC software, which allows you to generate reports and print out test results, as well as to export test data

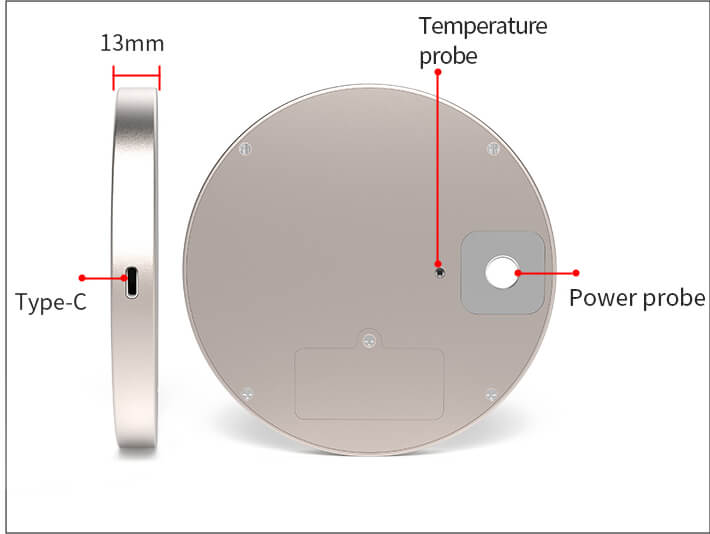

Temperature measurement possible
The high-precision and fast-response temperature detector is used to measure the actual temperature in the curing machine
High temperature resistant
High temperature resistant design with built-in heat insulation sheet, it can run in the environment of 100 degrees Celsius for a long time. Click for more: Use Time of Linshang UV Energy Meter at Different High Temperature
More detail information
High-speed data acquisition of 2048 times/sec, more accurate measurement
Built-in timer can accurately record the UV curing time
The stored data will not lost when the power is turned off
Qualifications and Standards
LS128 UV energy meter patent certificate
Connect the computer via USB and use the software for the UV Energy Meter. (The software is one compatible with Windows)
To install the software:
Download the software, unzip the file, and run it directly.
Click here to download
Packing
| No | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS128 UV Energy Meter | 1 | pcs |
| 2 | USB Cable | 1 | pcs |
| 3 | Antistatic Gloves | 1 | pcs |
| 4 | Cross Head Screw-driver | 1 | pcs |
| 5 | User Manual | 1 | pcs |
| 6 | Calibration Report | 1 | pcs |
| 7 | Certificate/Warranty Card | 1 | pcs |

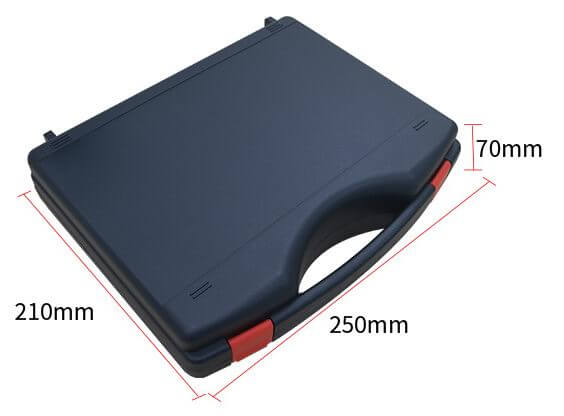

| 8 | Plastic Box Dimension 25*21*7cm (L*W*H) | 1 | pcs |
LS128 UV energy meter package
