Used for measuring the infrared radiation intensity and infrared rejection rate together Convert the IR rejection of the material automatically and displays it directly on the screen Spectral range: 1000-1700nm (λp=1400nm)

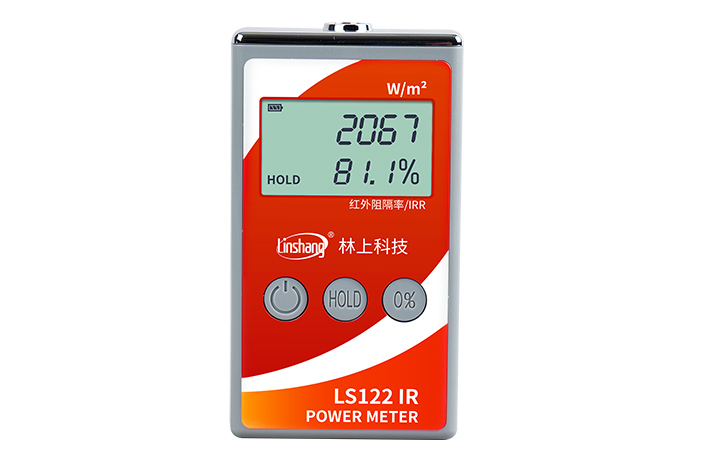

LS122 infrared power meter also called infrared energy receiver. This is an instrument with a wide receiving range. It is mainly used to measure the infrared rejection rate of materials. It is suitable for the display of thermal insulation effects of thermal insulation glass, solar film and other materials. It can also be used to measure the radiant energy power density of various light sources, that is, the radiant energy power per square meter with unit W/m².
Features
Applicable for a wide range of materials

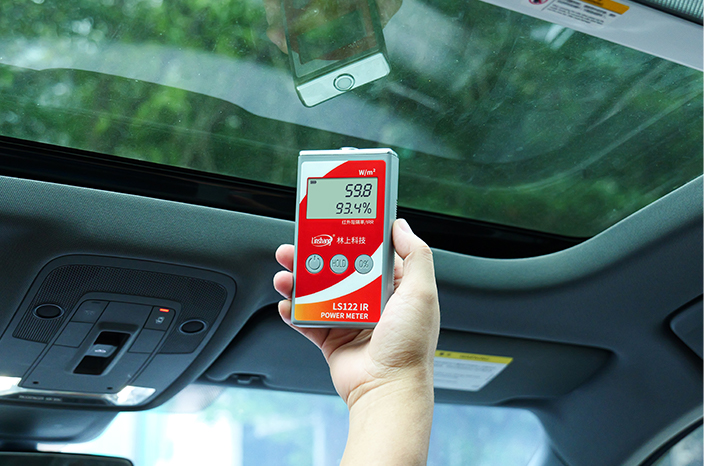

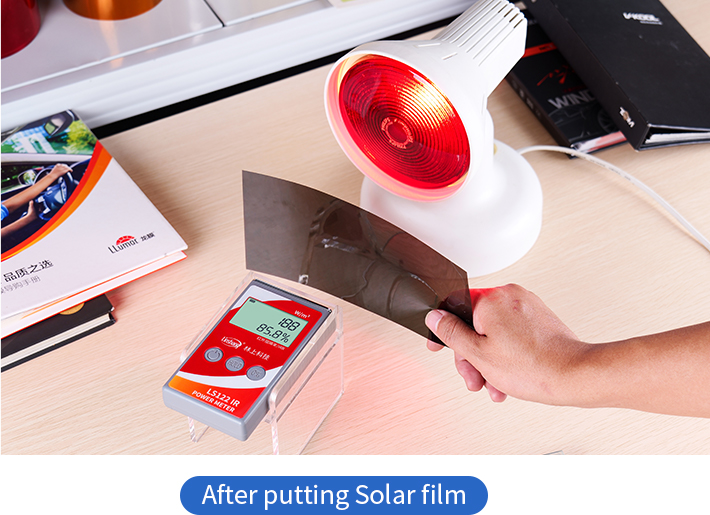

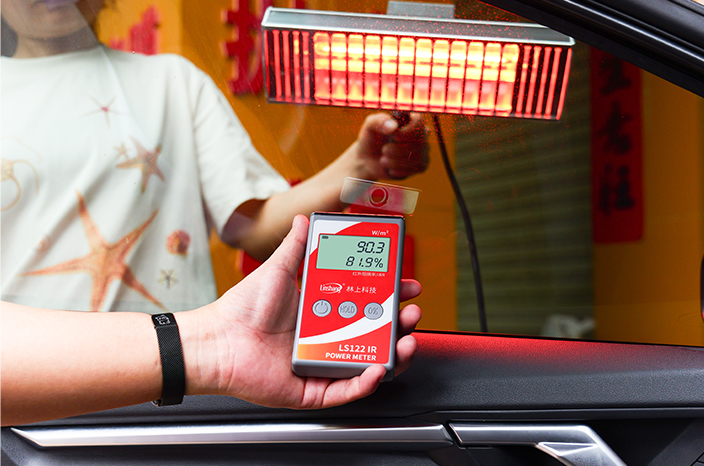

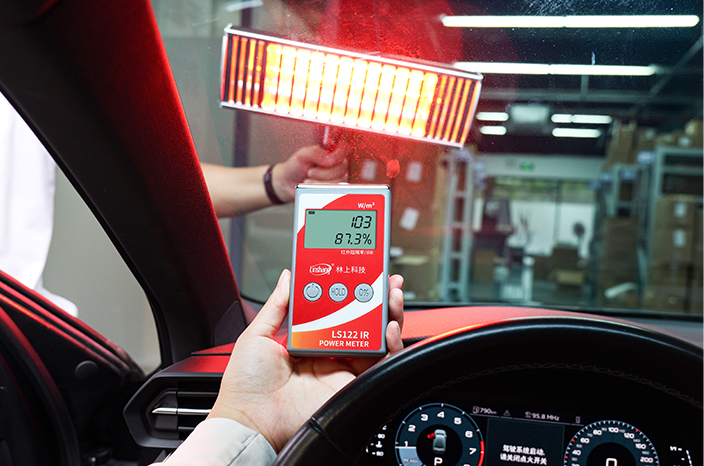

The LS122 solar power meter is suitable for testing the infrared rejection performance of architectural film, automobile thermal insulation film, solar film, thermal insulation glass and solar equipment
Simple operation, infrared intensity can be measured upon startup
The device is easy to operate, no complex calibration required, measures infrared irradiance upon startup
The demonstration effect is intuitive and easy to understand
Directly displays the blocking rate, no manual calculation needed; the higher the rate, the better the blocking effect
Data can be locked
Short press the “HLOD” key to lock data for easier reading
Compact and portable, can be held with one hand
Small in size, one-hand operable, easy to carry, convenient for demonstrations anytime and anywhere

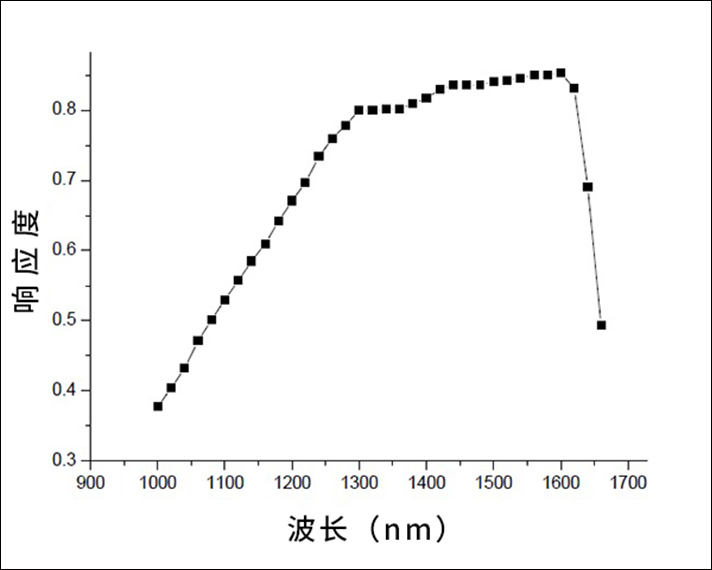

Wide spectral response
Capable of measuring infrared intensity in the 1000nm to 1700nm wavelength range

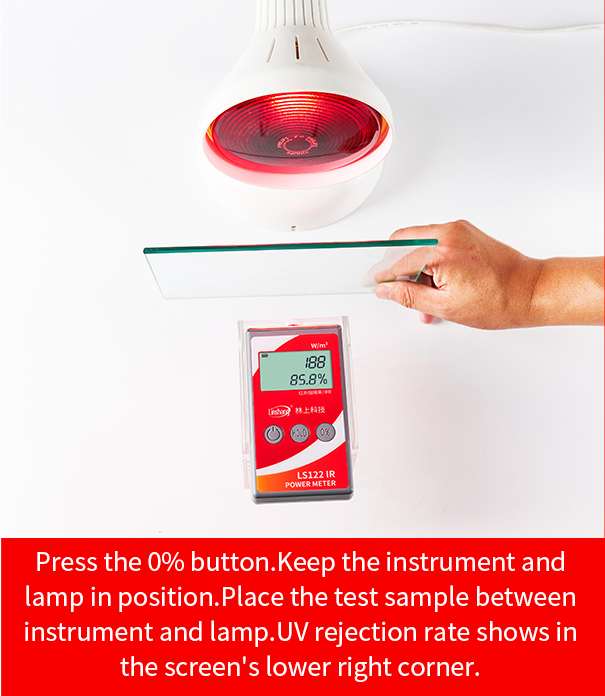

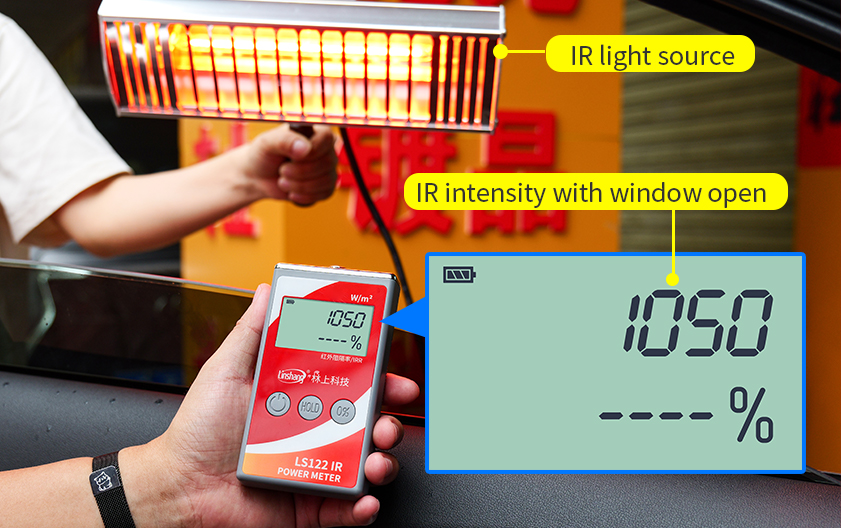

Infrared power meter measurement steps
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS122 Infrared Power Meter | 1 | pcs |
| 2 | User Manual | 1 | pcs |
| 3 | Certificate / Warranty Card | 1 | pcs |
