Measure IR/UV rejection rate, VLT Enable to measure IR rejection rate, UV rejection rate and Visible Light Transmittance Small size and easy to carry
LS160 transmission meter is mainly used for testing the transmittance, ultraviolet and infrared rejectiong rates of automotive films. The biggest advantage of the instrument is its compact size and affordable price. It is a suitable choice for automotive solar film display exhibition, production, quality inspection and inspection. The pocket solar film transmission meter has been widely used in solar film manufacturers, automotive film distribution, automotive film retail sales system.
LS160 Window Tint Meter
Features
Compact and Convenient
Super small size which is very convenient to carry out

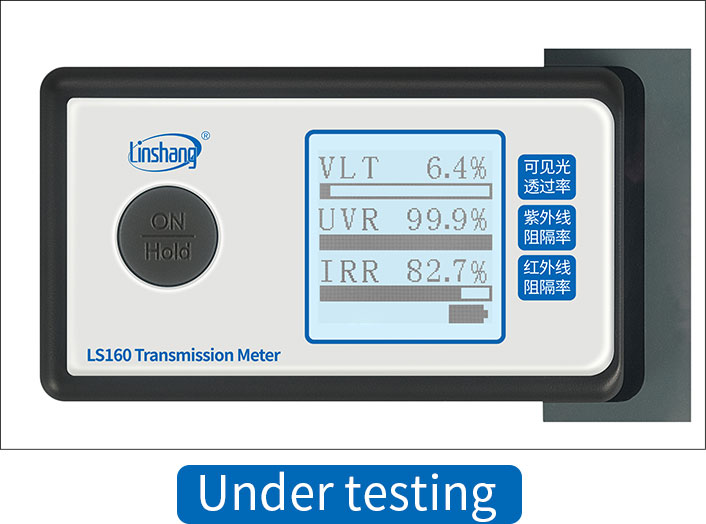

Easy to operate and display instantly
The light transmittance, UV rejection rate, IR rejection rate can be displayed immediately after putting the materials into the test slot
Real-time dynamic calibration function
The solar film transmission meter has real-time dynamic calibration function. It will self-calibrate if no material in the test slot which is to ensure the accurate test data

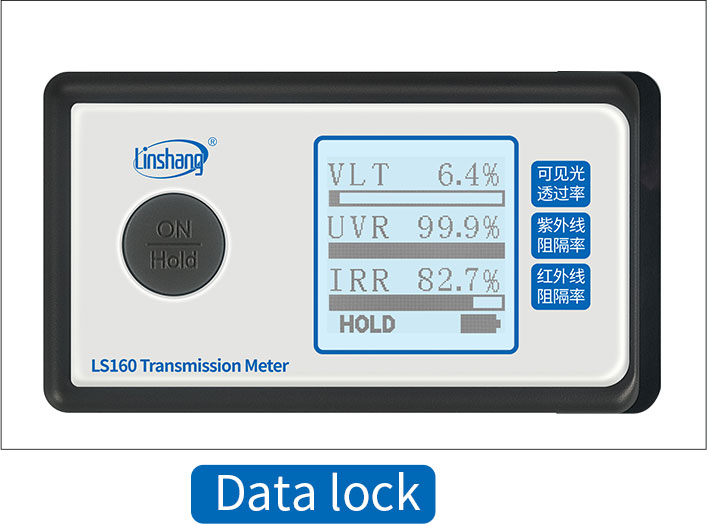

Lock data by pressing HOLD button
Press HOLD button can lock data on the screen. Taking away the material, the data is still showed on the screen
Low power consumption Save energy

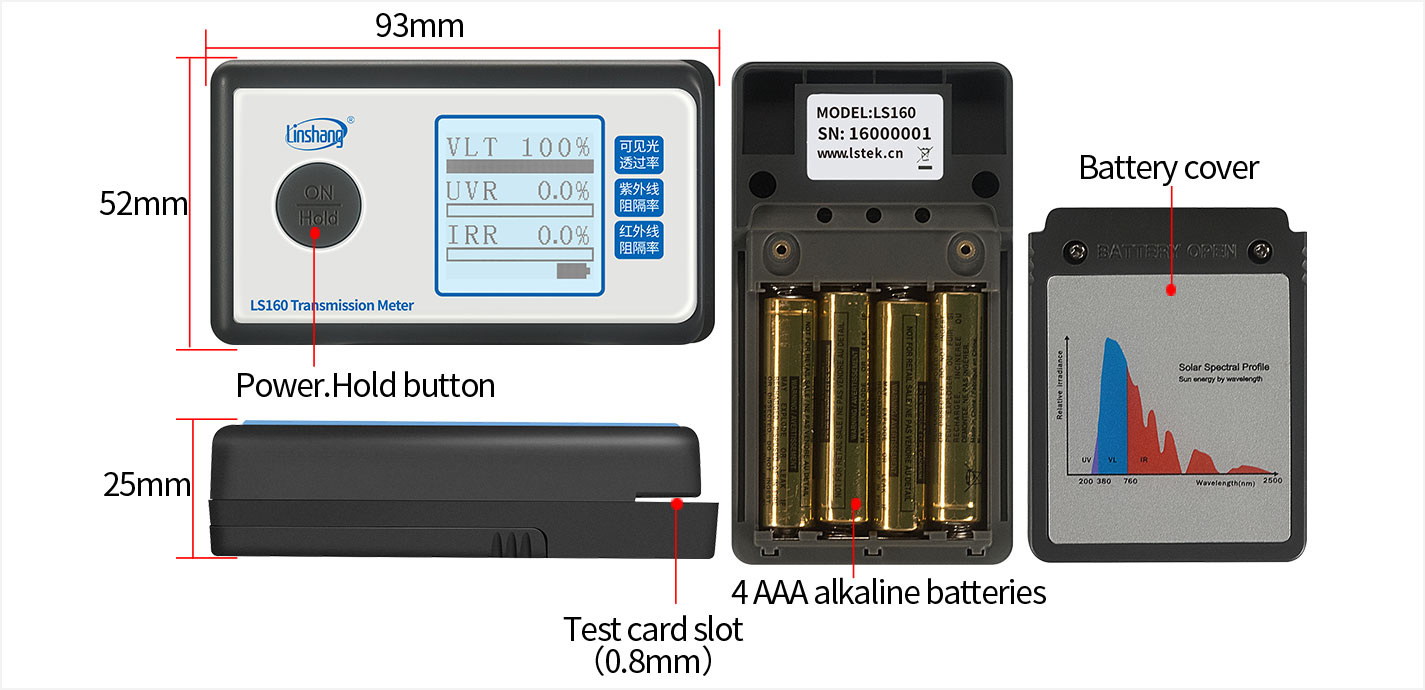

Powered by 4 AAA alkaline dry batteries, ultra-low power consumption and easy replacement. The meter will automatic shutdown after 3 minutes if there is no any operation making it more power-saving and energy-saving
Qualifications and Standards
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS160 Transmission Meter | 1 | pcs |
| 2 | User Manual | 1 | pcs |
| 3 | Certificate / warranty Card | 1 | pcs |
| 4 | Screwdriver | 1 | pcs |
| 5 | Spare Screw | 1 | pcs |
| 6 | Packing Box Dimension 15*8*5 cm（L*W*H） | 1 | pc |
