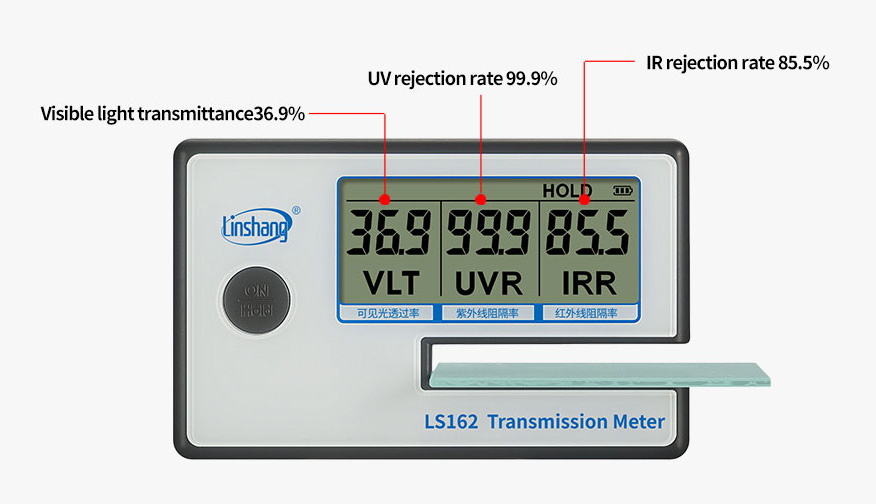

Measure visible light transmittance of 380nm-760nm Measure UV rejection rate at 365nm, and IR rejection rate at 940nm
LS162 transmission meter is a compact and small transmission meter that can simultaneously test three parameters of light transmittance, ultraviolet rejection rate and infrared rejection rate. It is suitable for the display, exhibition, production, quality inspection, inspection and other occasions. The window film transmission meter can test the material optical properties such as automotive explosion-proof films, architectural films and laminated glass. The instrument has been widely used in solar film manufacturers, automotive film distribution, automotive film retail sales system.

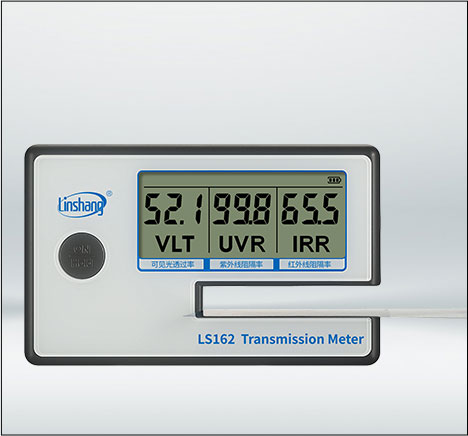

LS162 Transmission Meter tests thin film

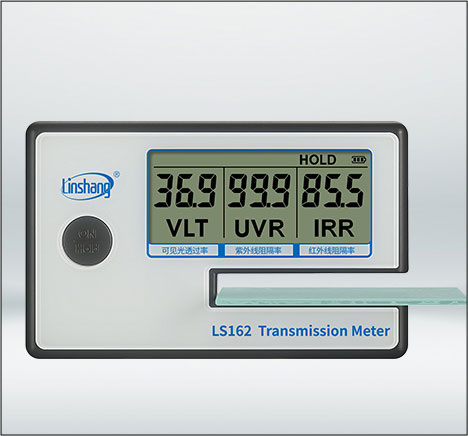

LS162 Transmission Meter tests glasses

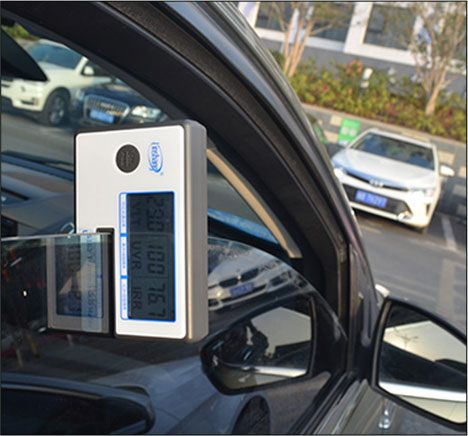

LS162 Transmission Meter tests windshield

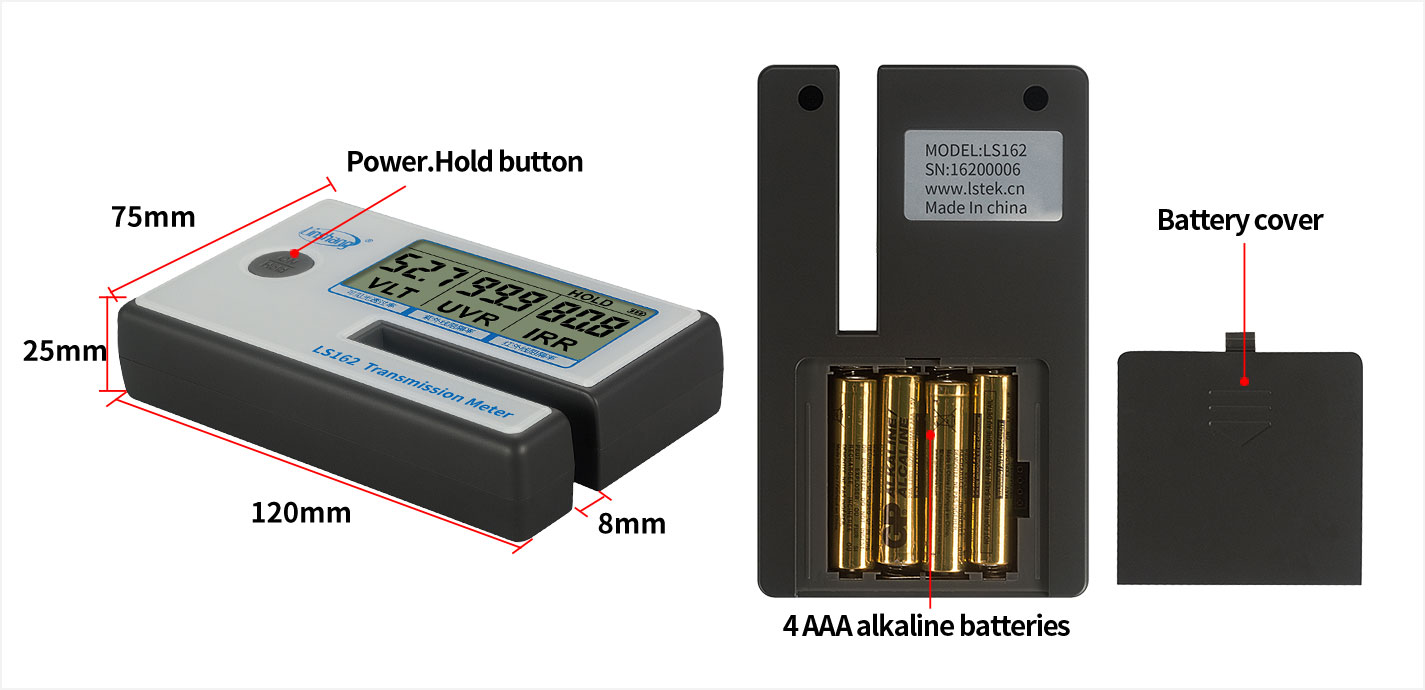

LS162 solar film transmission meter appearance
Features
Simple operation, instant measurement, instant display

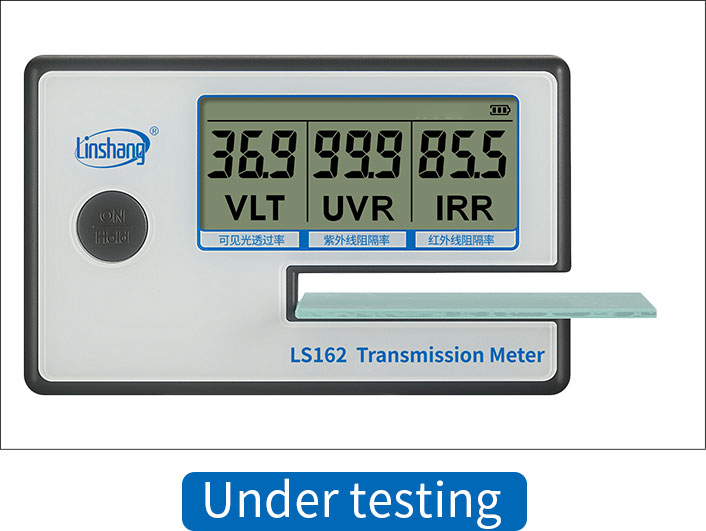

The window film transmission meter has simple operation and the measurement is fast. Just put the measured object into the test slot, then the visible light transmittance, ultraviolet and infrared rejection rate will be immediately displayed on the interface
Exquisite and Convenient
LS162 has a small size and it is very convenient to carry out. The test slot is 8mm wide, which can directly test the car windshield

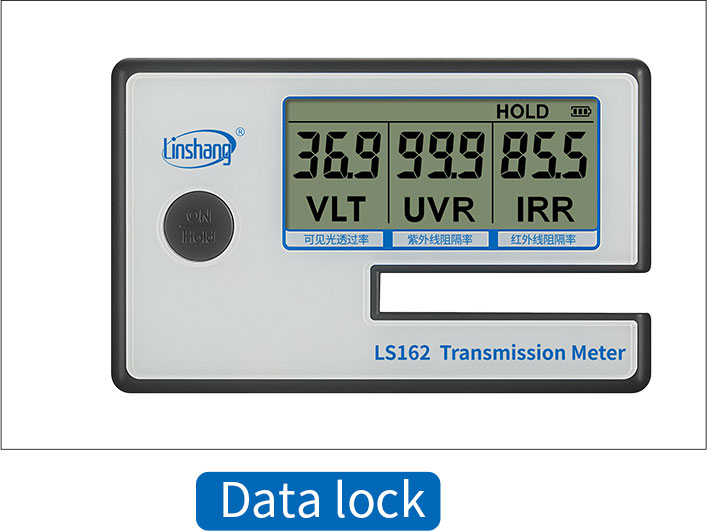

Data lock function
The instrument has a data lock function. After the test is completed, press the HOLD button to lock the data. The data will remain on the display interface after taking away the tested material
Real-time dynamic calibration aids data stability during testing

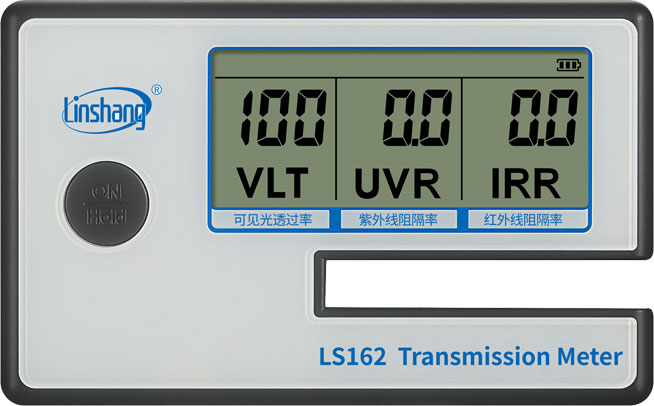

LS162 portable solar film transmission meter has real-time dynamic calibration function. When there is no test object, the instrument will automatically return to the original data state to help improve test data
Low power consumption Save energy
Powered by 4 AAA alkaline dry batteries, ultra-low power consumption and easy replacement. The meter will automatic shutdown after 3 minutes if there is no any operation making it more power-saving and energy-saving
Qualifications and Standards
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS162 Transmission Meter | 1 | pcs |
| 2 | User Manual | 1 | pcs |
| 3 | Certificate/Warranty Card | 1 | pcs |
| 4 | Packing Box Dimension 18*11*5 cm（L*W*H） | 1 | pcs |
