Measure visible light transmittance of 380nm-760nm Measure UV rejection rate at 365nm and IR rejection rate at 1400nm
LS162A is our portable and classic solar film tester. The sophisticated meter measures not one visible light transmittance but also UV rejection rate and IR rejection rate. When placing glass or film on the test slot, the screen will show the measurement data at once. It is mainly suitable for optical properties of various uniform and transparent materials such as solar film, laminated glass and automobile side glass.

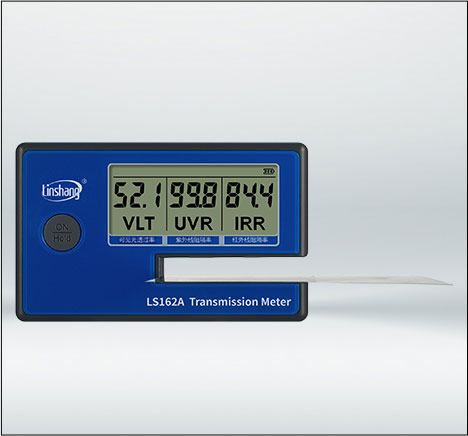

LS162A Transmission Meter tests thin film

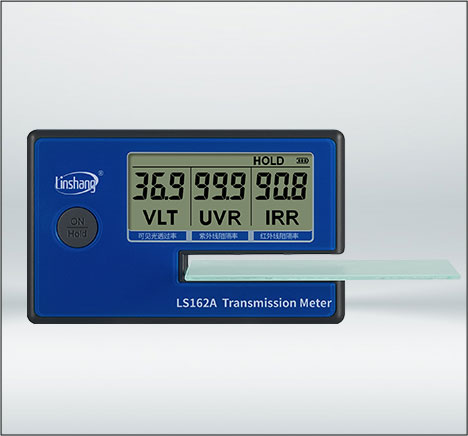

LS162A Transmission Meter tests glasses

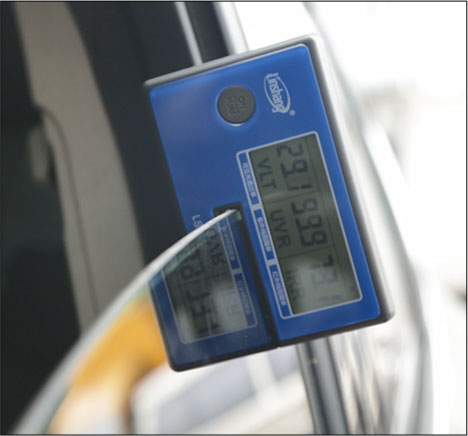

LS162A Transmission Meter tests windshield

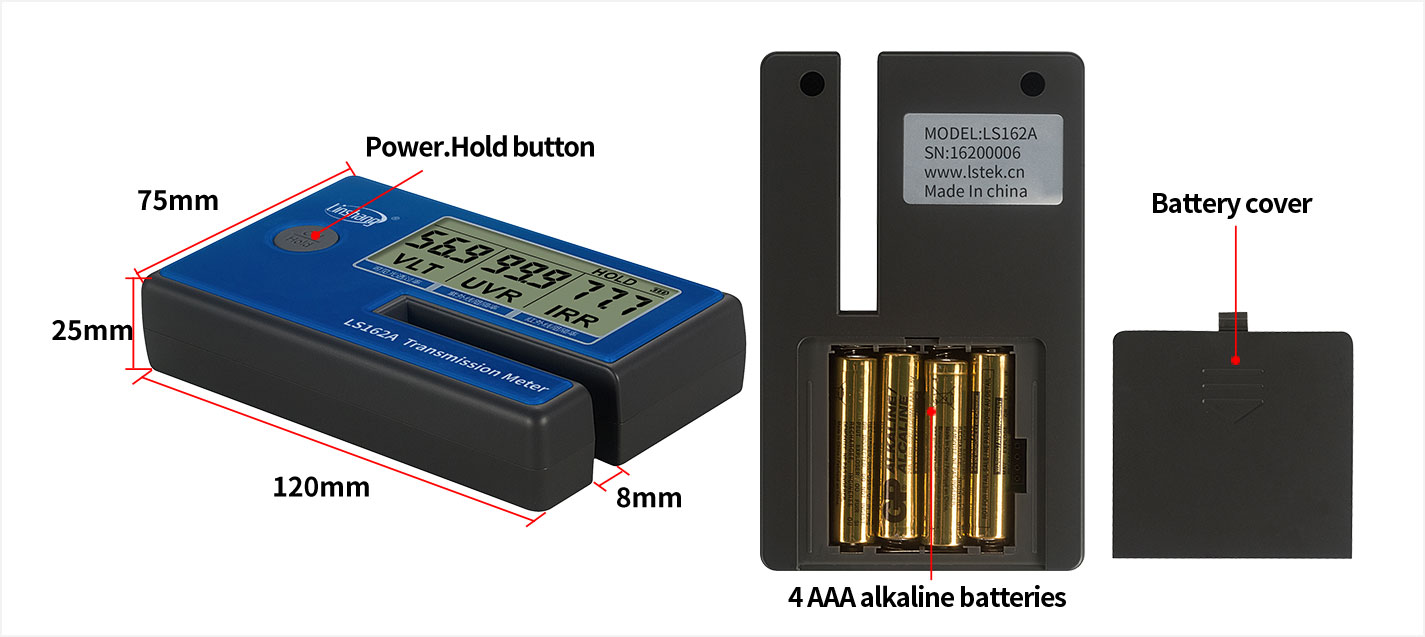

LS162A solar film transmission meter appearance
Feature

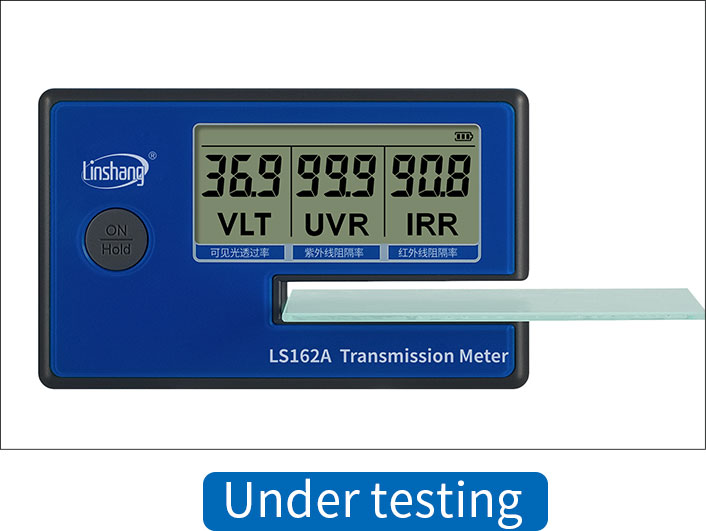

Convenient to use, Fast measurement
LS162A window film transmission meter has simple operation and the measurement is fast. Just put the measured object into the test slot, then the visible light transmittance, ultraviolet and infrared rejection rate will be immediately displayed on the screen
Lightweight and handy
The instrument has a small size proper to outdoor measurement. The test slot is 8mm wide, which can directly test the car windshield

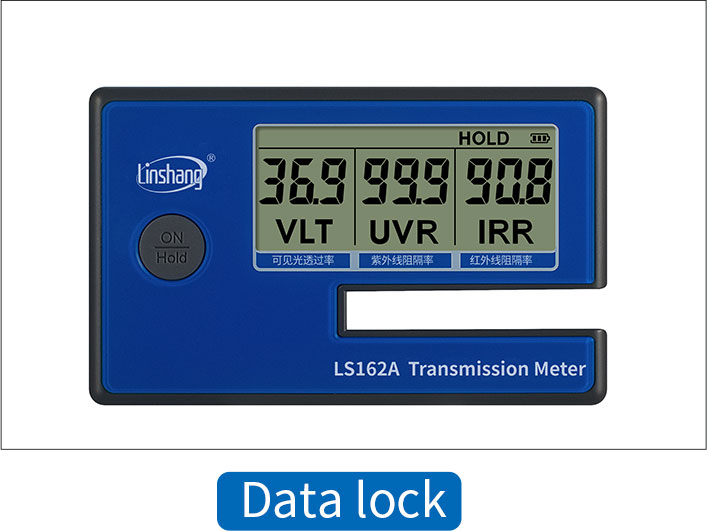

Lock data for relaxing reading
Due to the testing location or material properties, users may encounter that the instrument is placed at an angle difficult to read. LS162A developed the function of locking data to solve this problem by pressing HOLD button. Even if the meter moves, the data remains unchanged
Real-time dynamic calibration aids data stability during testing

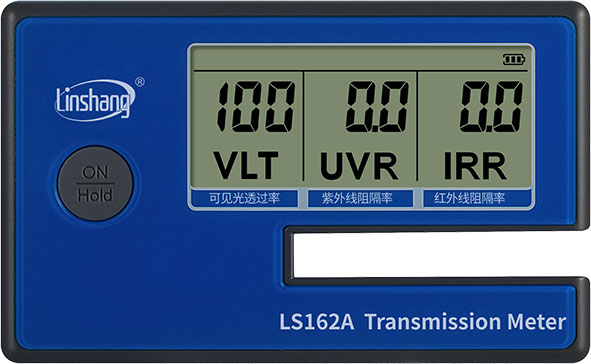

LS162A portable solar film transmission meter has real-time dynamic calibration function. When there is no test object in test slot, the meter will automatically return to the original data state to help improve test data
Low power consumption Save energy
Powered by 4 AAA alkaline dry batteries, ultra-low power consumption and easy replacement. The meter will automatic shutdown after 3 minutes if there is no any operation making it more power-saving and energy-saving
Qualifications and Standards
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS162A Transmission Meter | 1 | pcs |
| 2 | User Manual | 1 | pcs |
| 3 | Certificate / Warranty Card | 1 | pcs |
| 4 | Packing Box Dimension 18*11*5 cm（L*W*H） | 1 | pcs |
