3 light source: visible light, UV and infrared Three display interfaces are available Rotatable screen for easy reading Suitable for testing metalic films and ceramic films
LS163 window film transmission meter is an instrument for measuring the optical properties of uniform and transparent materials such as solar film, glass with film, heat-insulating glass and automobile side windsheild glass. We can select the measurement interface to display the infrared and ultraviolet rejection and transmittance.
Application
LS163 Transmission Meter is widely used in solar film, glass industry, automobile 4S shops, car beauty shops, etc. It is suitable for display, production, quality inspection, inspection and other occasions. It can test optical properties of solar film, stick-film glass, PC material and window glass.

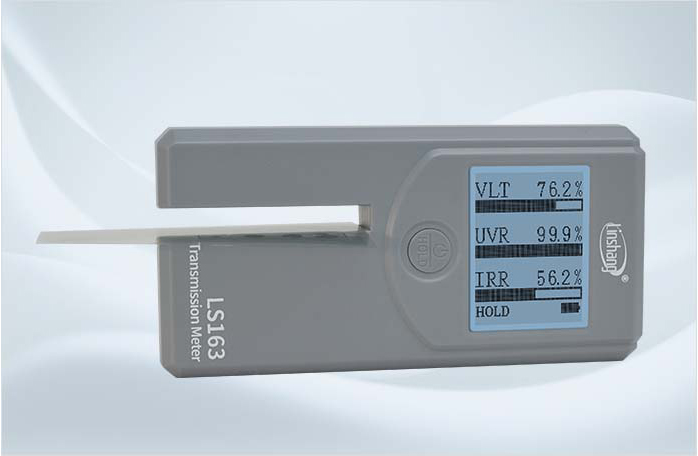

LS163 transmission meter tests film

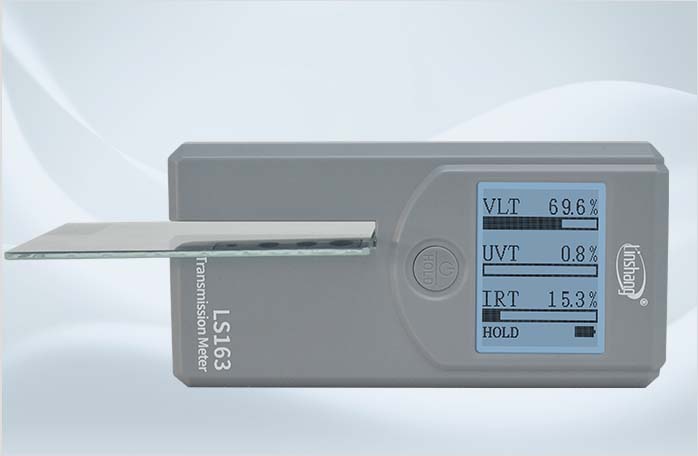

LS163 transmission meter tests film glass

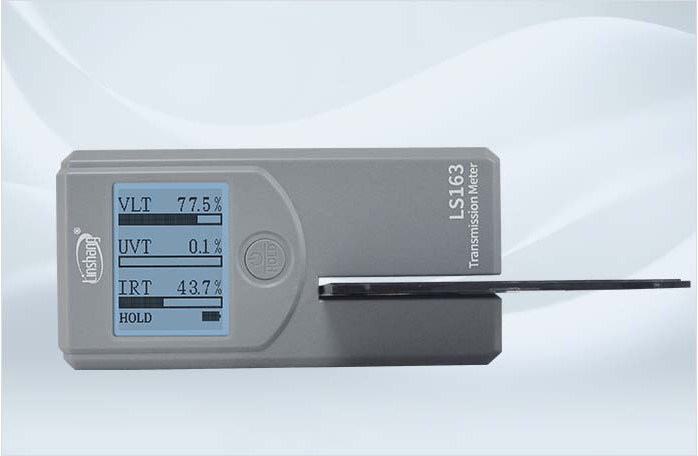

LS163 transmission meter tests PC material

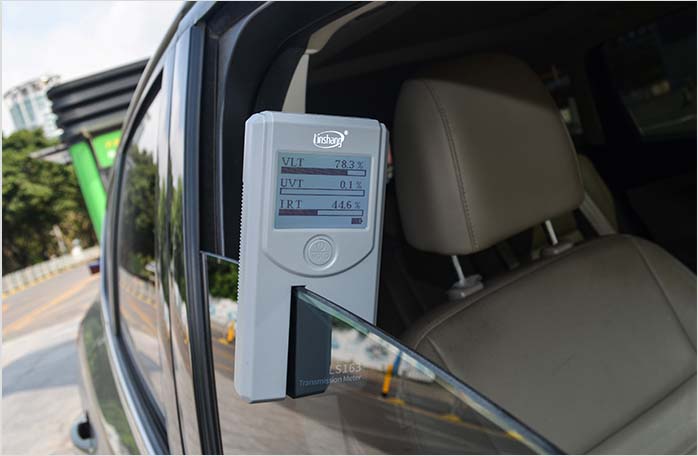

LS163 transmission meter tests car side glass

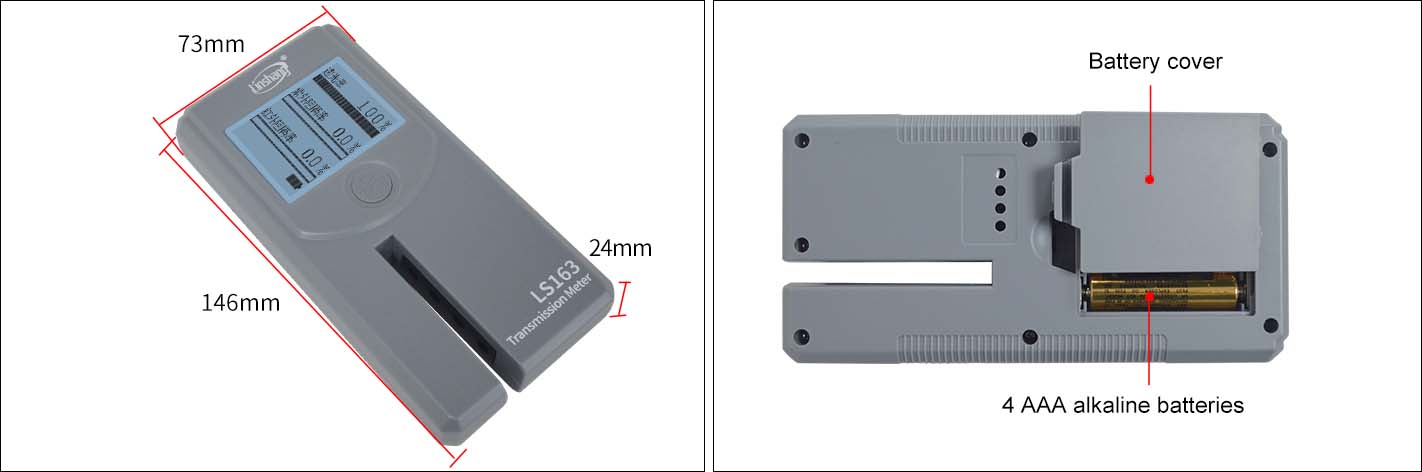

LS163 transmission meter appearance
Features
Easy to operate, fast measurement speed and instant display

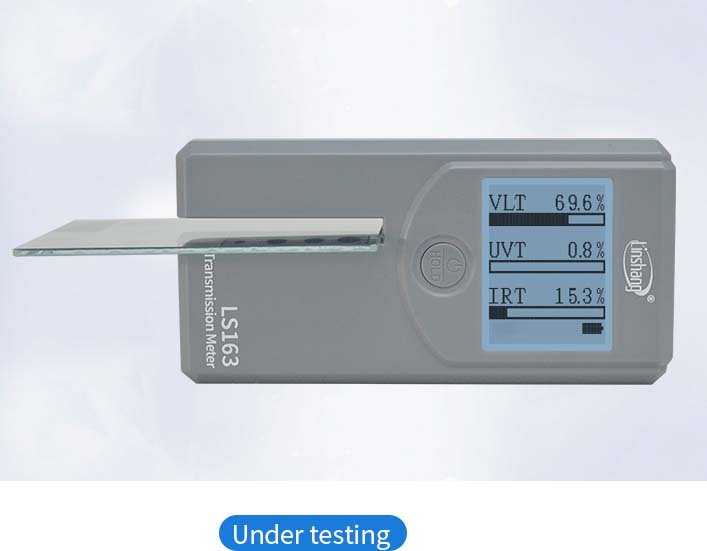

The solar film transmission meter has simple operation and fast measurement speed. The three test results will be displayed on the interface immediately after putting the materials into the test slot
Parallel light path, side windshield can be tested
The LS163 transmission meter boasts parallel light path design, with a test slot wide 6mm, the instrument can also test car side windshield
Humanized design, Rotating display interface
The display interface can rotate in 4 directions adaptively convenient for reading data when testing at different angles
Real-time automatic calibration function
The LS163 solar film transmission meter has real time dynamic calibration function , the meter will conduct self-calibration after turning on

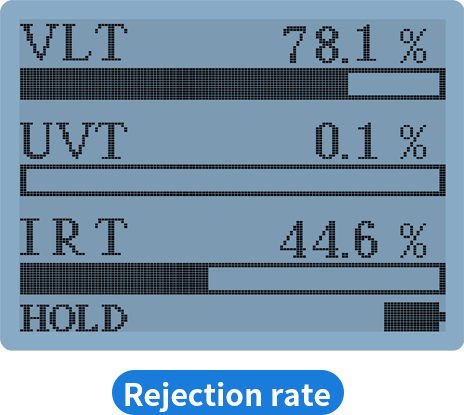

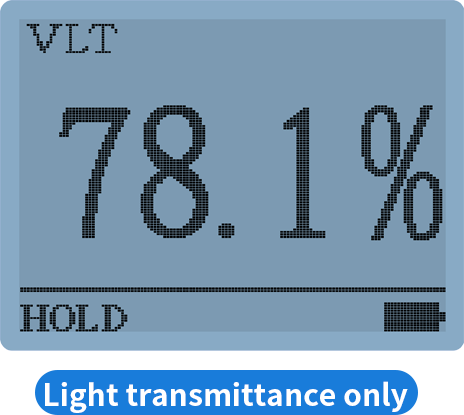

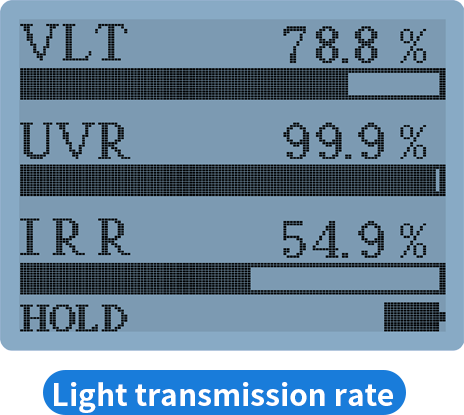

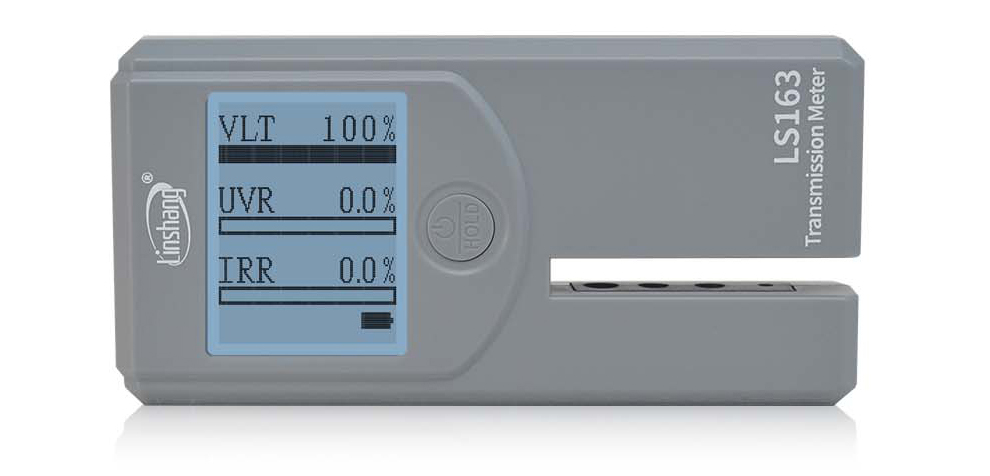

Three display interfaces available
We can set the display interface as rejection rate, transmittance or light transmission

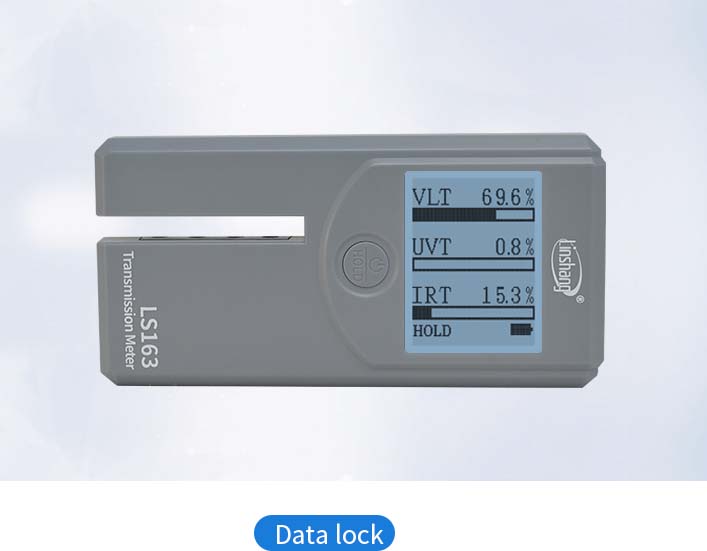

Lock testing datas by pressing "Hold" button
The window tint detector has data lock function. Press the hold button after testing, the data will remain on the interface after taking away the tested materials
Compact and portable
The window film transmission meter has small size with anti-slip design convenient for holding or carrying out
LCD dot matrix screen with backlight which can be used in dark environment
Low power consumption It can continuously measure for more than 100 hours
The transmittance meter will automatically power off if without operation for 3 minutes
Qualifications and Standards
solar film tester patent certificate
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS163 Transmission Meter | 1 | set |
| 2 | User Manual | 1 | pcs |
| 3 | Certificate / Warranty Card | 1 | pcs |
| 4 | Packing box dimension 18*13*5 cm（L*W*H） | 1 | pcs |
