Test seven parameters: visible light, UV, IR 940nm, IR 1400nm, Full-IR, TSER, SHGC Multiple display modes are available for free switching 6mm test slot supports testing of thick materials

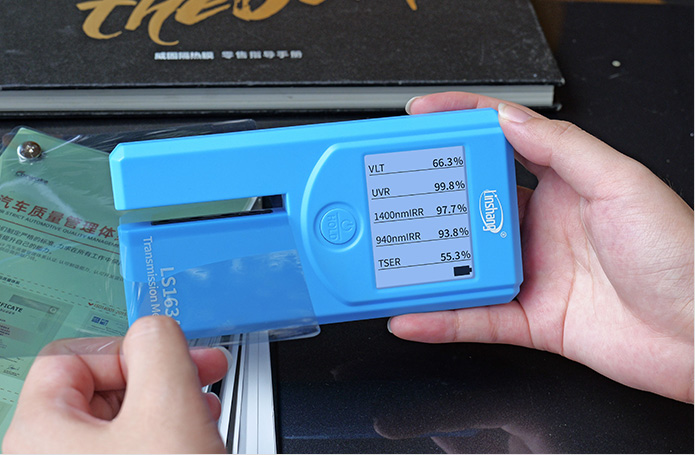

LS163A Test solar films

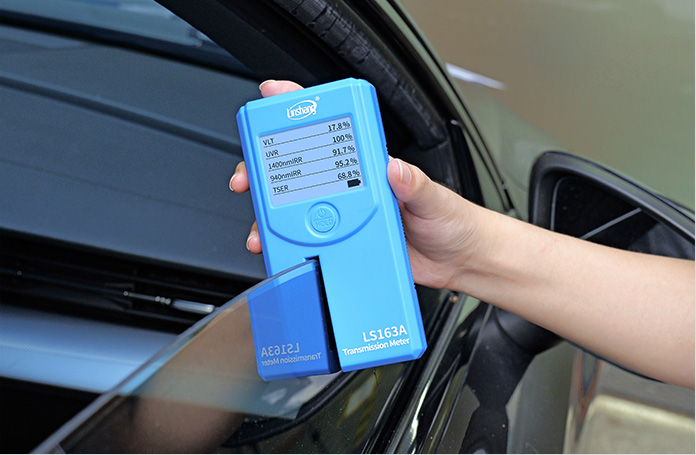

LS163A Test automotive side windows

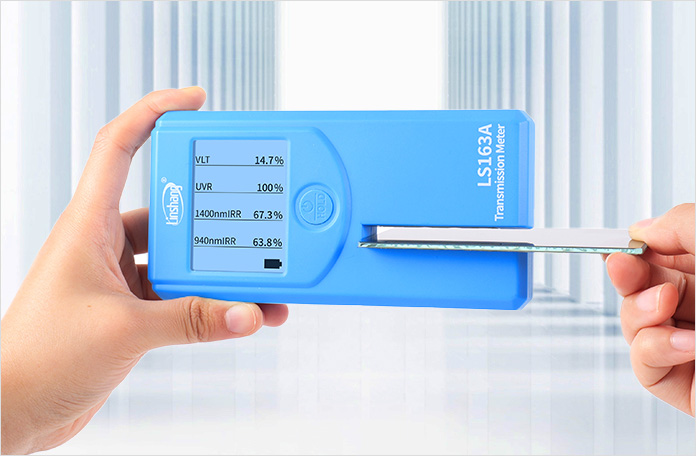

LS163A Test coated glass

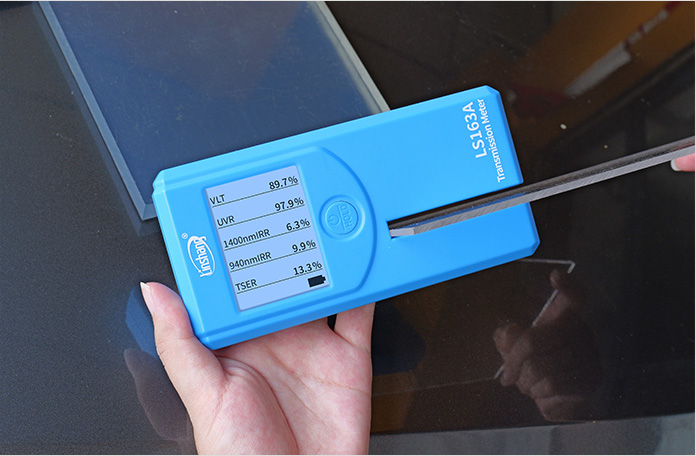

LS163A Test PC materials

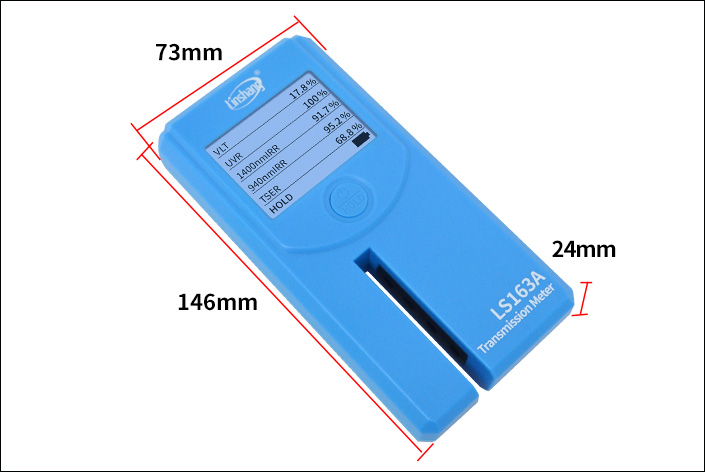

LS163A Transmission Meter appearance

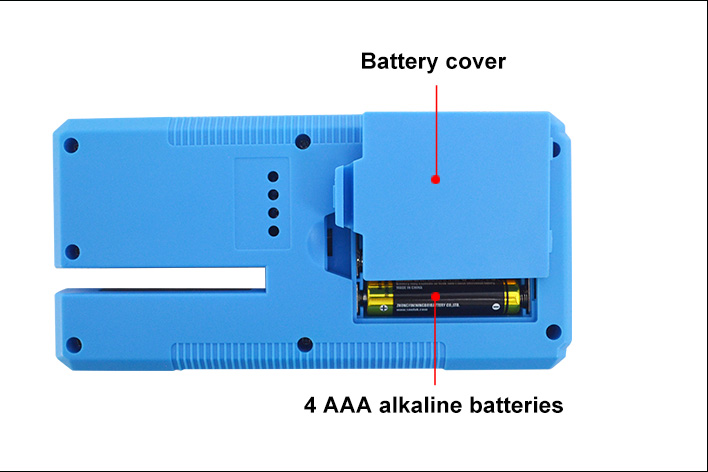

LS163A Transmitter Back View
Feature
Measures seven optical parameters

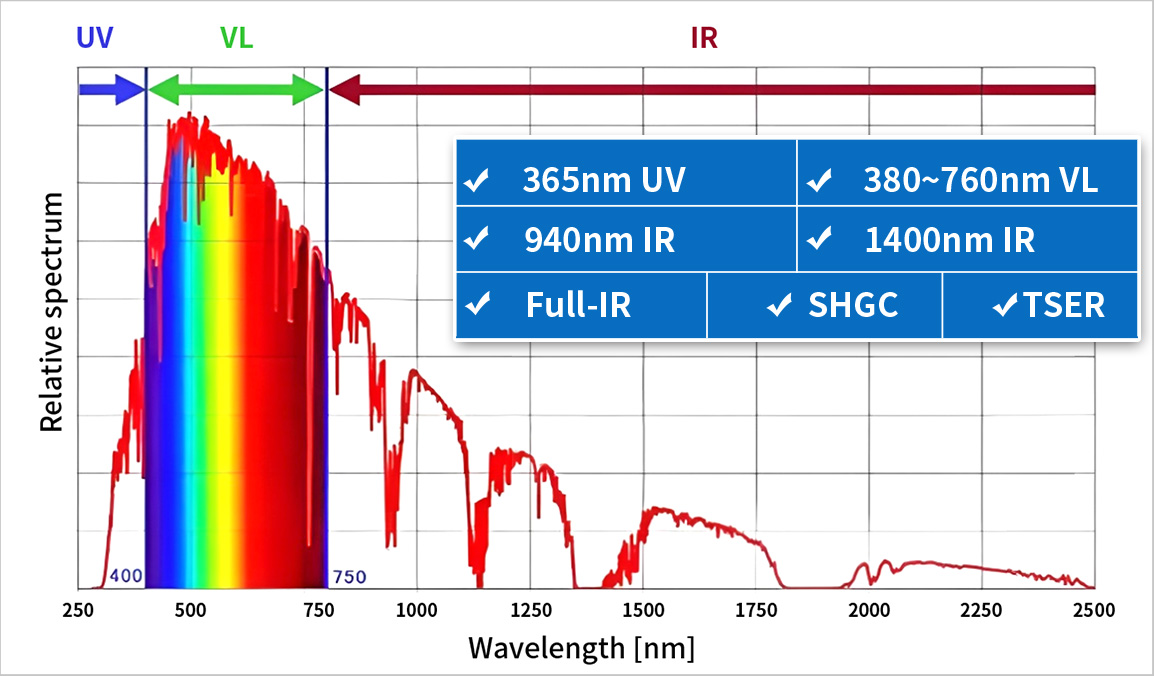

LS163A Transmission Meter measures seven optical parameters: visible light, UV, IR 940nm, IR 1400nm, full IR, Total Solar Energy Rejection (TSER), and Solar Heat Gain Coefficient (SHGC).
Easy operation, fast measurement
Single-button design for simple use. Just place the material into the test slot to instantly view results.
Comprehensive evaluation of heat insulation performance
By testing TSER and SHGC values, it allows a complete evaluation of the solar film’s heat insulation performance.
Parallel light path, side windshield can be tested
The LS163A Transmission Meter boasts parallel light path design, with a test slot wide 6mm, the instrument can also test large thickness materials such as car side windshield.

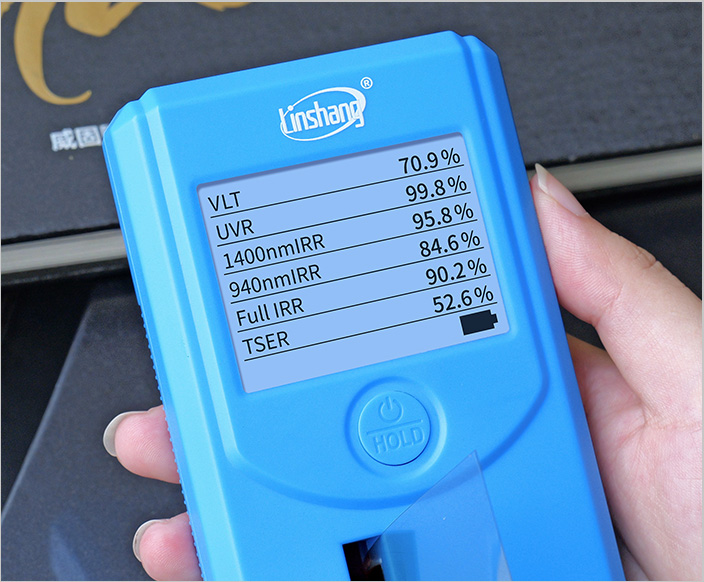

Free switching of multiple display modes

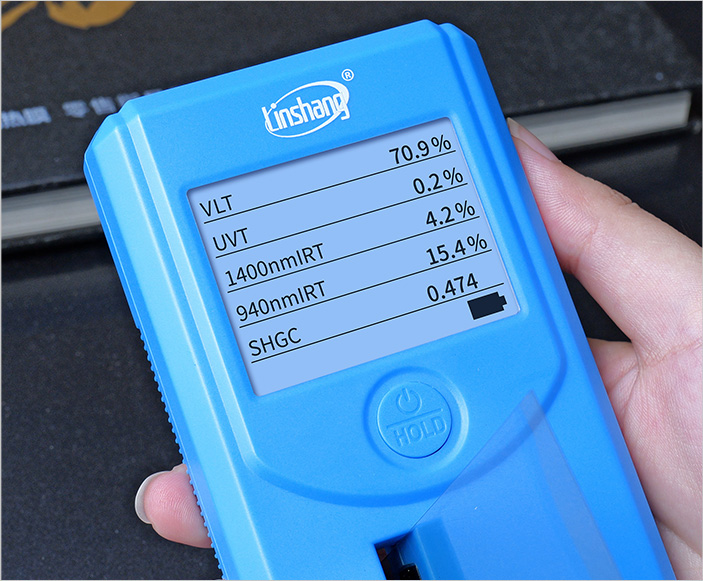

Users can freely switch between rejection rate and transmittance display modes to meet different testing needs.
Auto-rotating display interface
The display automatically rotates according to the testing direction, making it easy to read data from any angle.
Real-time automatic calibration function
Equipped with real-time dynamic self-calibration to help improve and reliable test results.

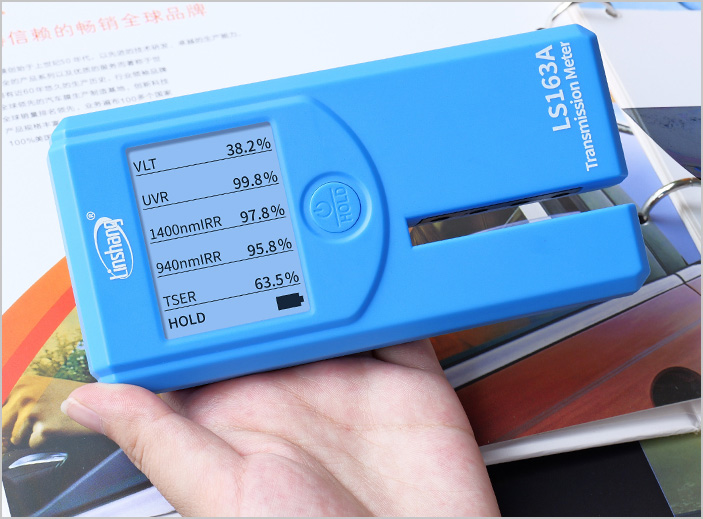

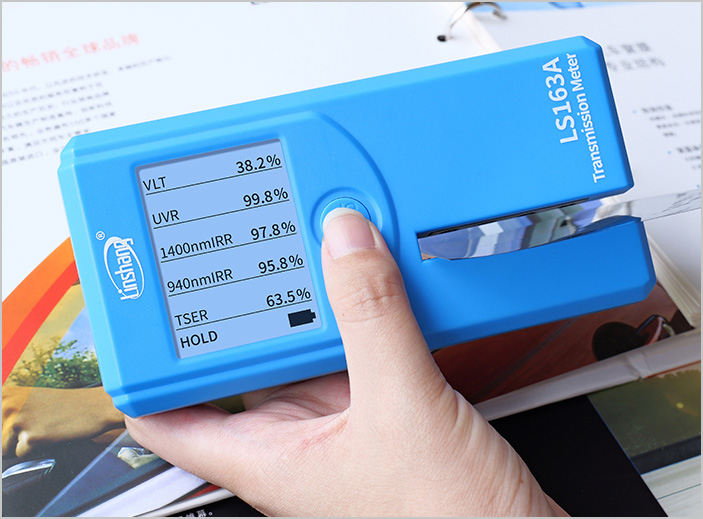

Lock testing datas by pressing "Hold" button
The window film transmission meter has data lock function. Press the "Hold" button after testing, the data will remain on the interface after taking away the tested materials.
Compact and portable
The window film transmission meter has small size with anti-slip design convenient for holding or carrying out.
LCD dot matrix screen with backlight which can be used in dark environment
Low power consumption, energy-efficient, and long battery life
Support Chinese and English
Qualifications and Standards
solar film tester patent certificate
